Evaporative Emissions System: Diagrams

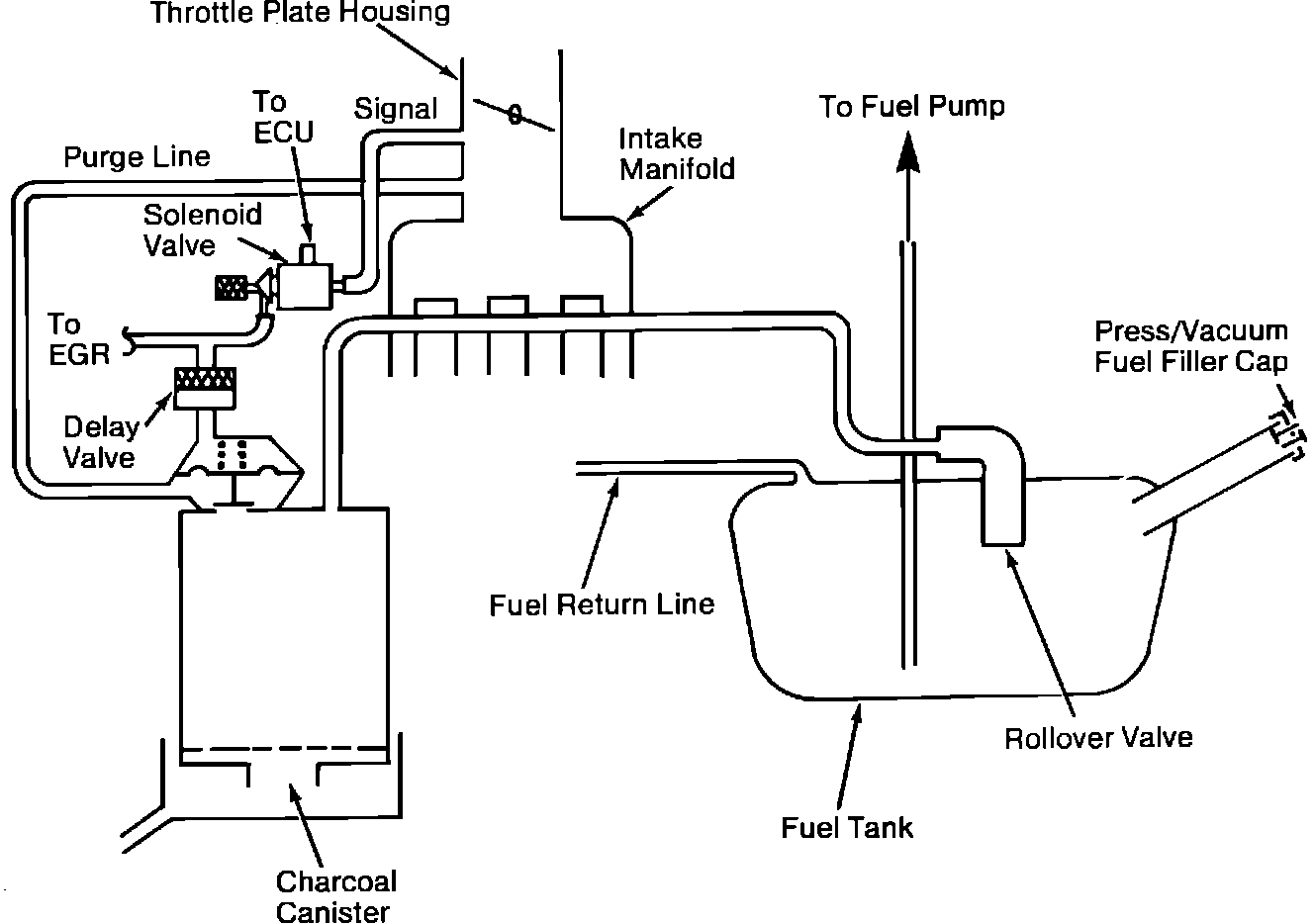

Fig. 1 Evaporative emission control system vacuum schematic. 4-132/2.2L Engine:
