Exhaust Gas Recirculation: Diagrams

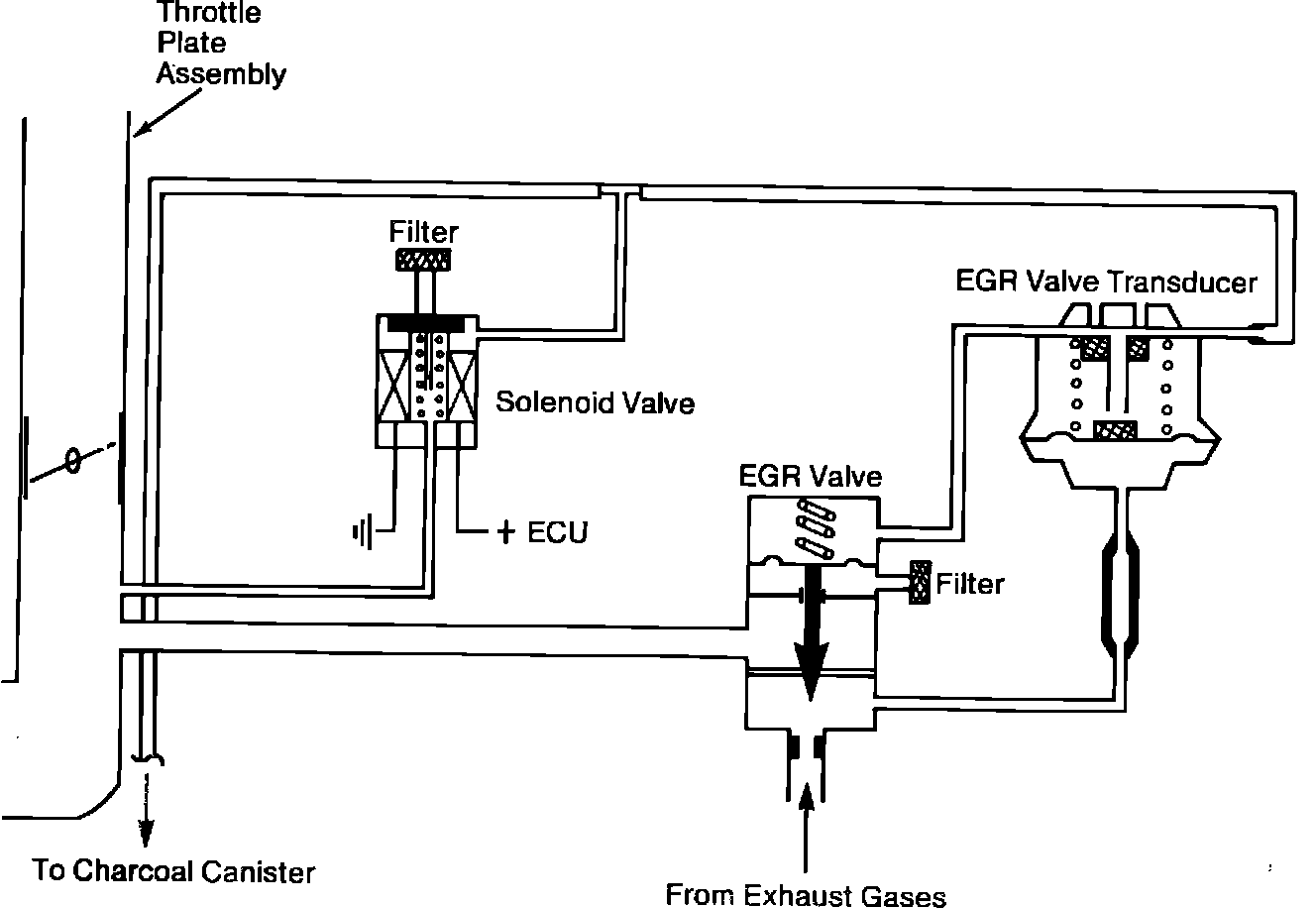

Fig. 3 Exhaust gas recirculation system vacuum schematic. 4-132/2.2L Engine:
