Instrument Panel Illumination
Instrument Panel Illumination

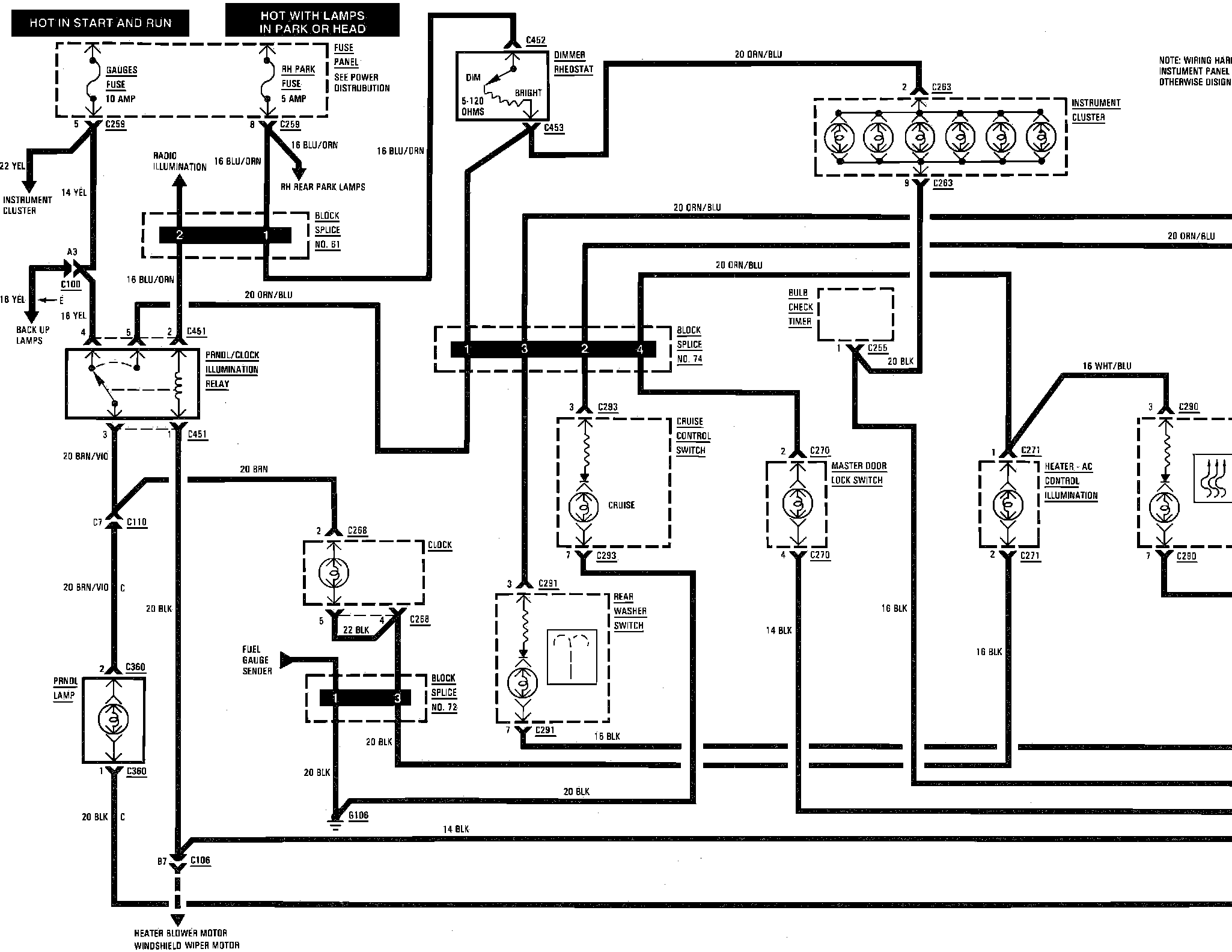

cf�H���HInstrument Illumination Wiring Circuit:
