Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
Audible Warning Device

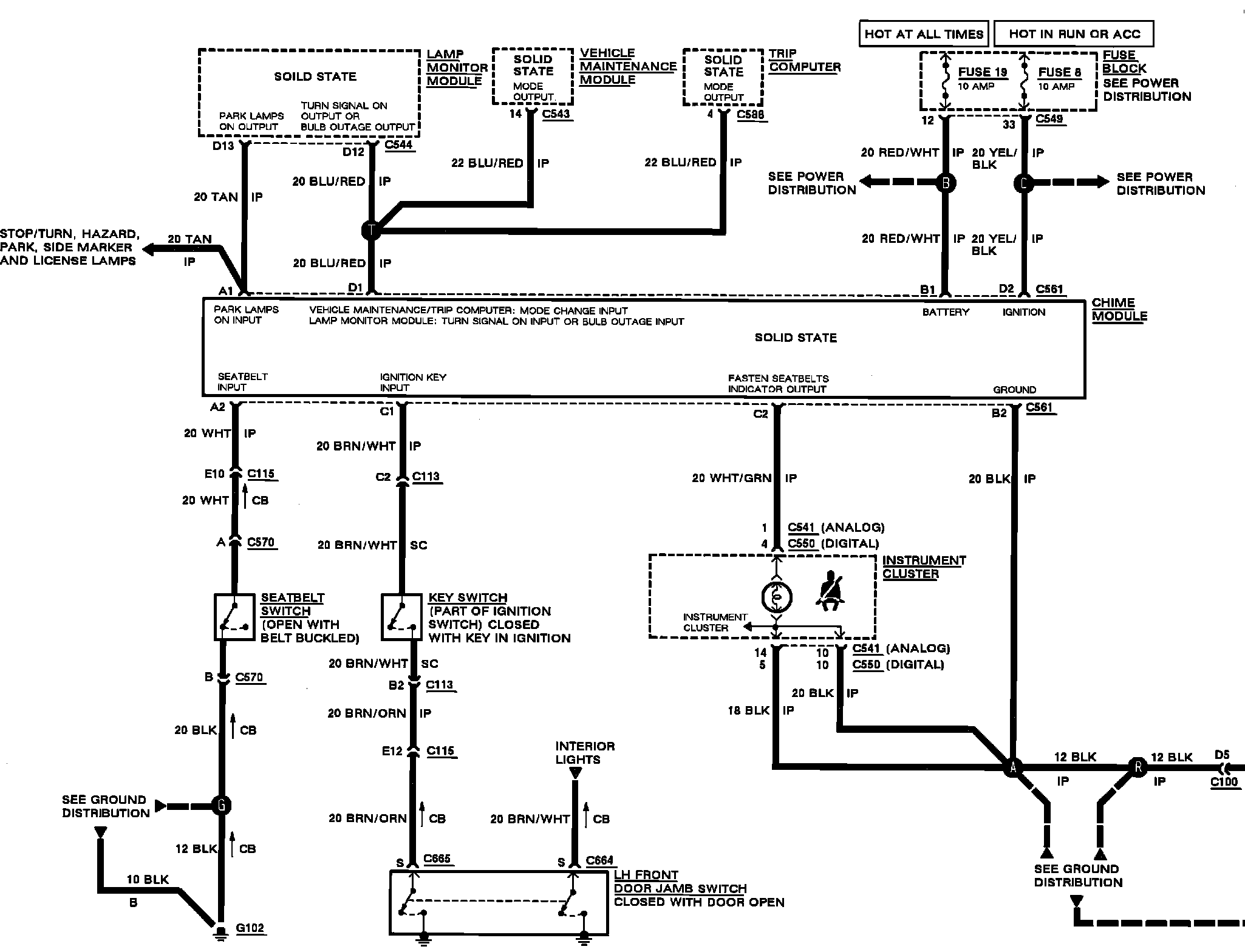

��cGChime System Wiring Circuit:
