Home >> Eagle >> 1988 >> Premier L4-150 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> System Diagram

System Diagram

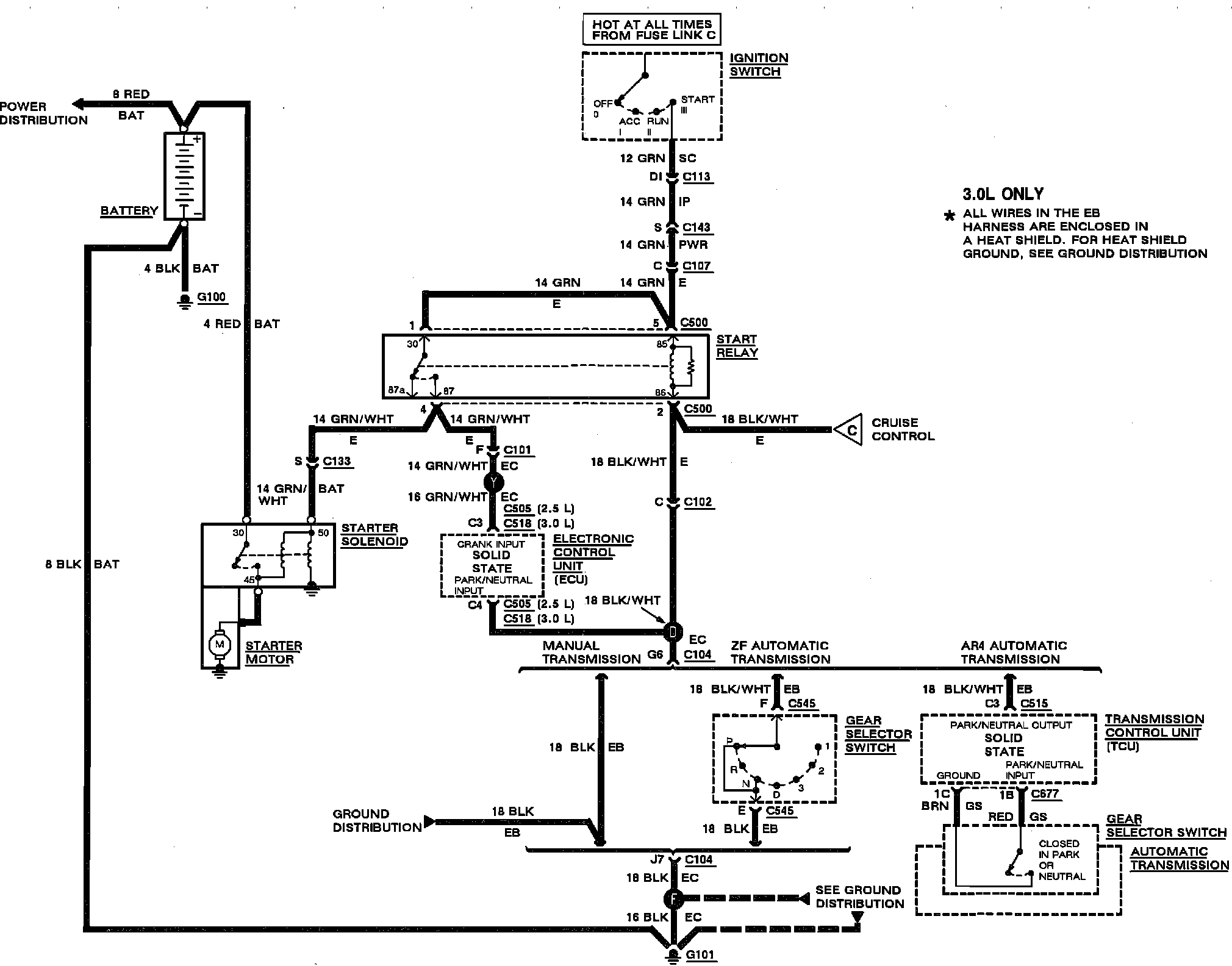

Starter System Wiring Circuit:



�� >Charging System Wiring Circuit:
