Instrument Panel Illumination
Instrument Panel Illumination

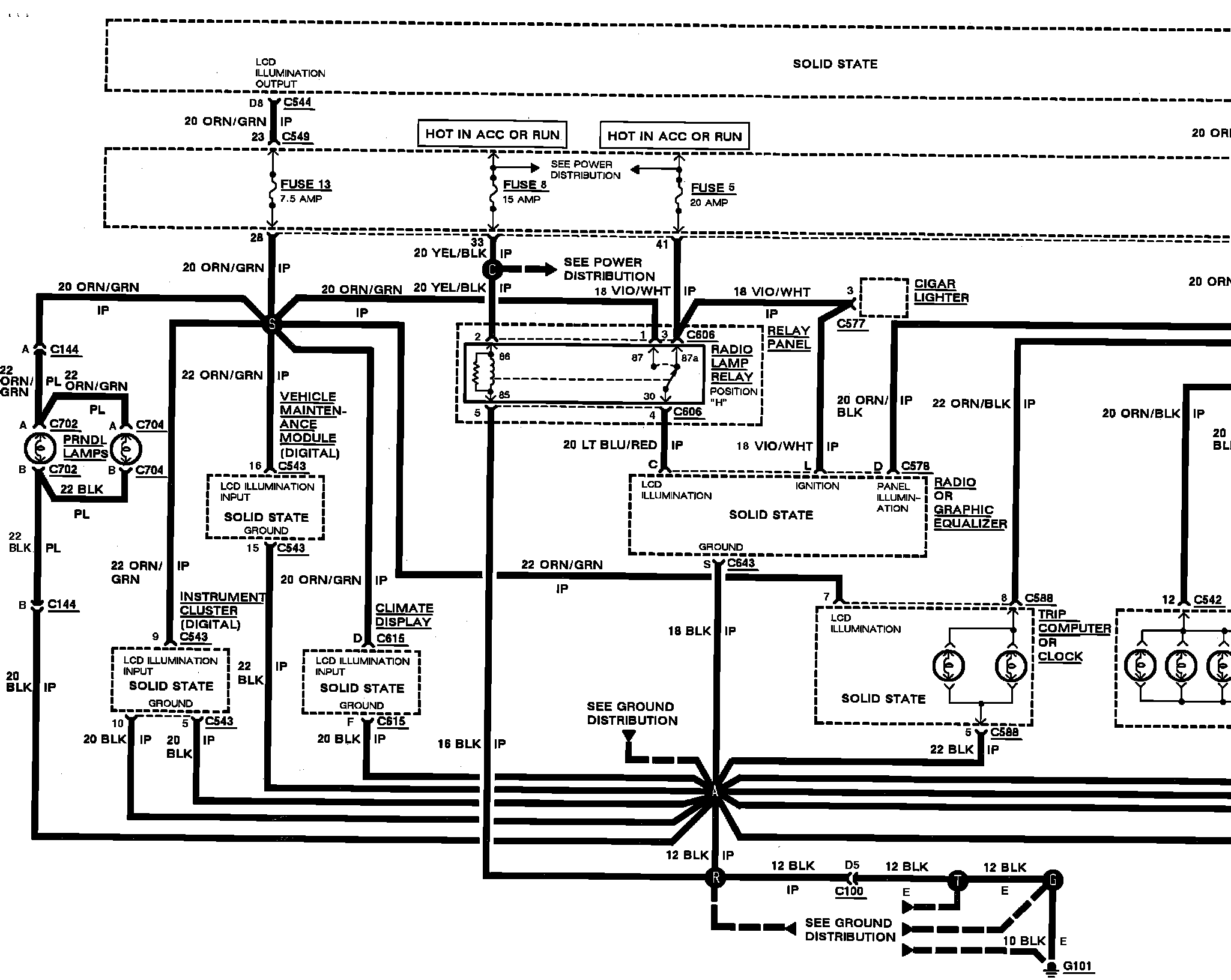

� �HInstrument Panel Illumination Wiring Circuit:
