Electrical Diagrams

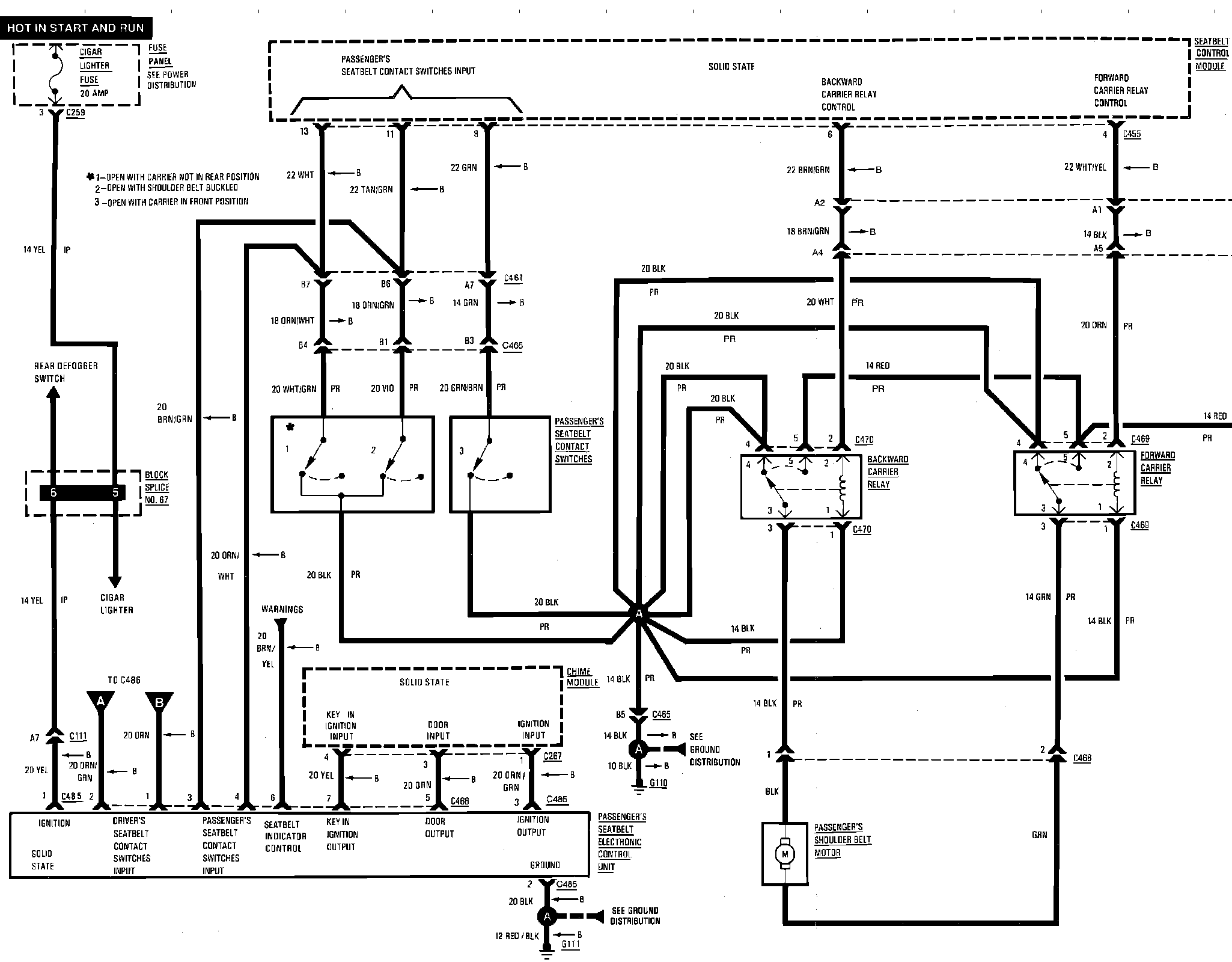

Fig. 19 Automatic Seat Belt Wiring Circuit (Part 1 Of 3):

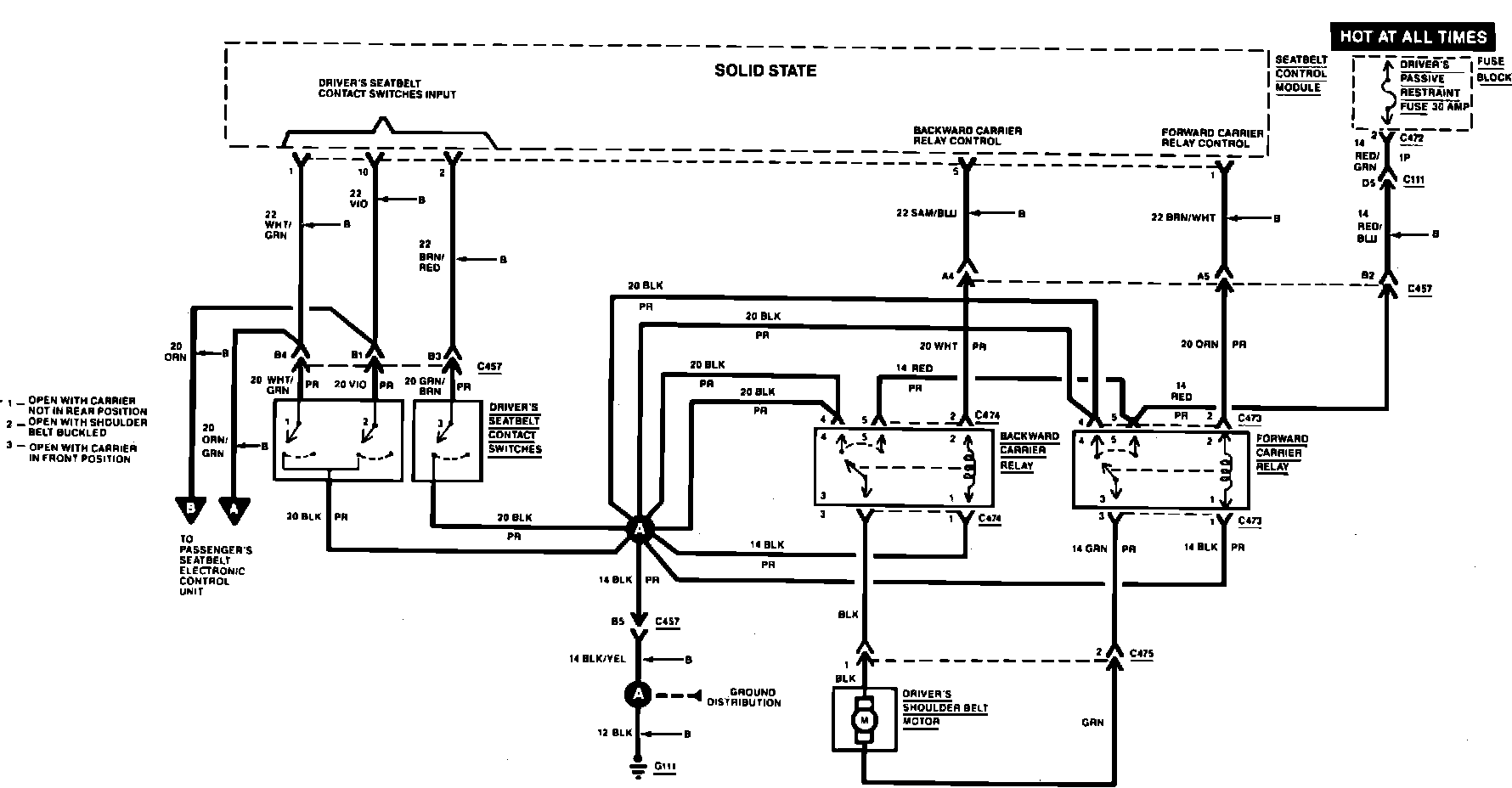

Fig. 19 Automatic Seat Belt Wiring Circuit (Part 2 Of 3):

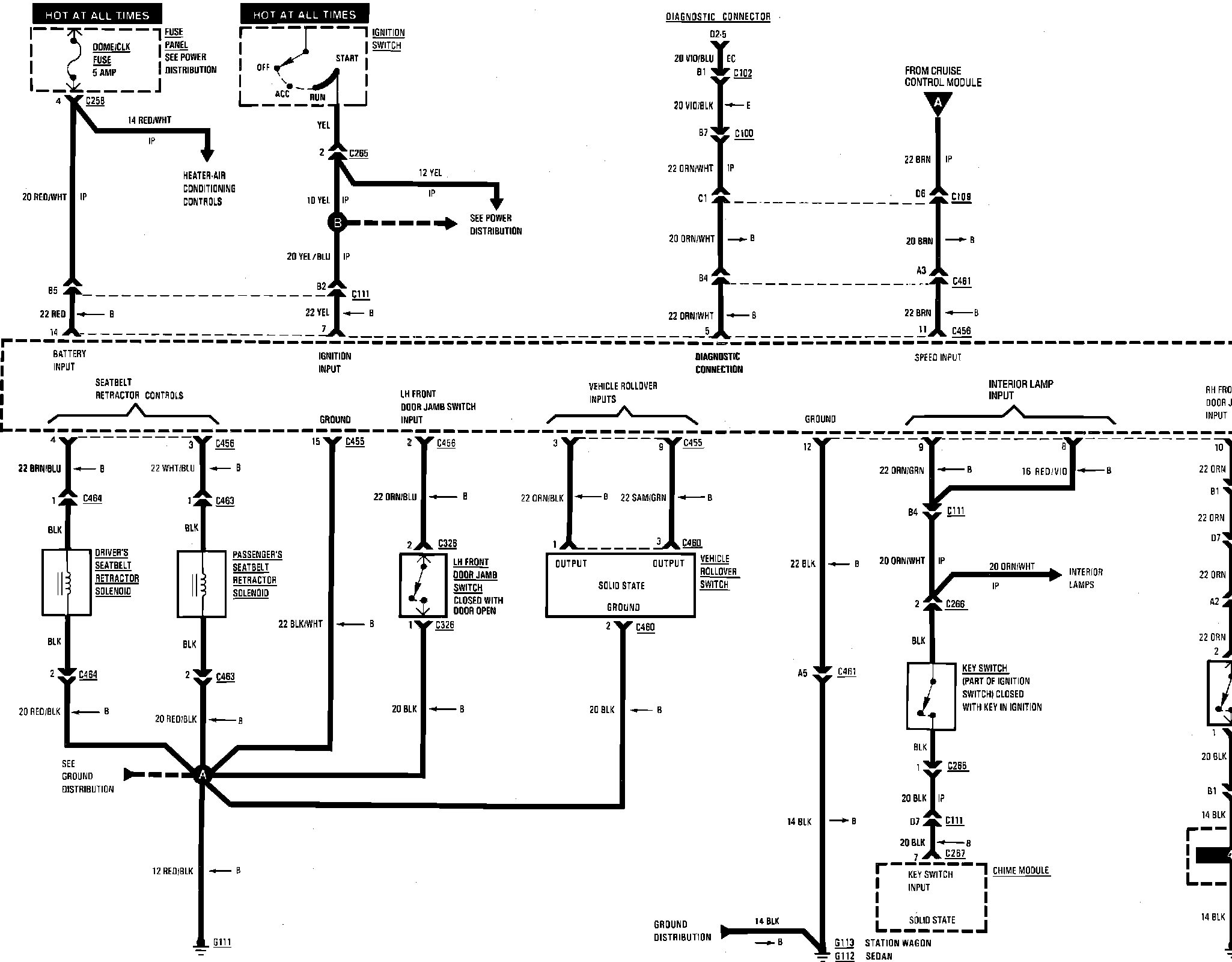

Fig. 19 Automatic Seat Belt Wiring Circuit (Part 3 Of 3):

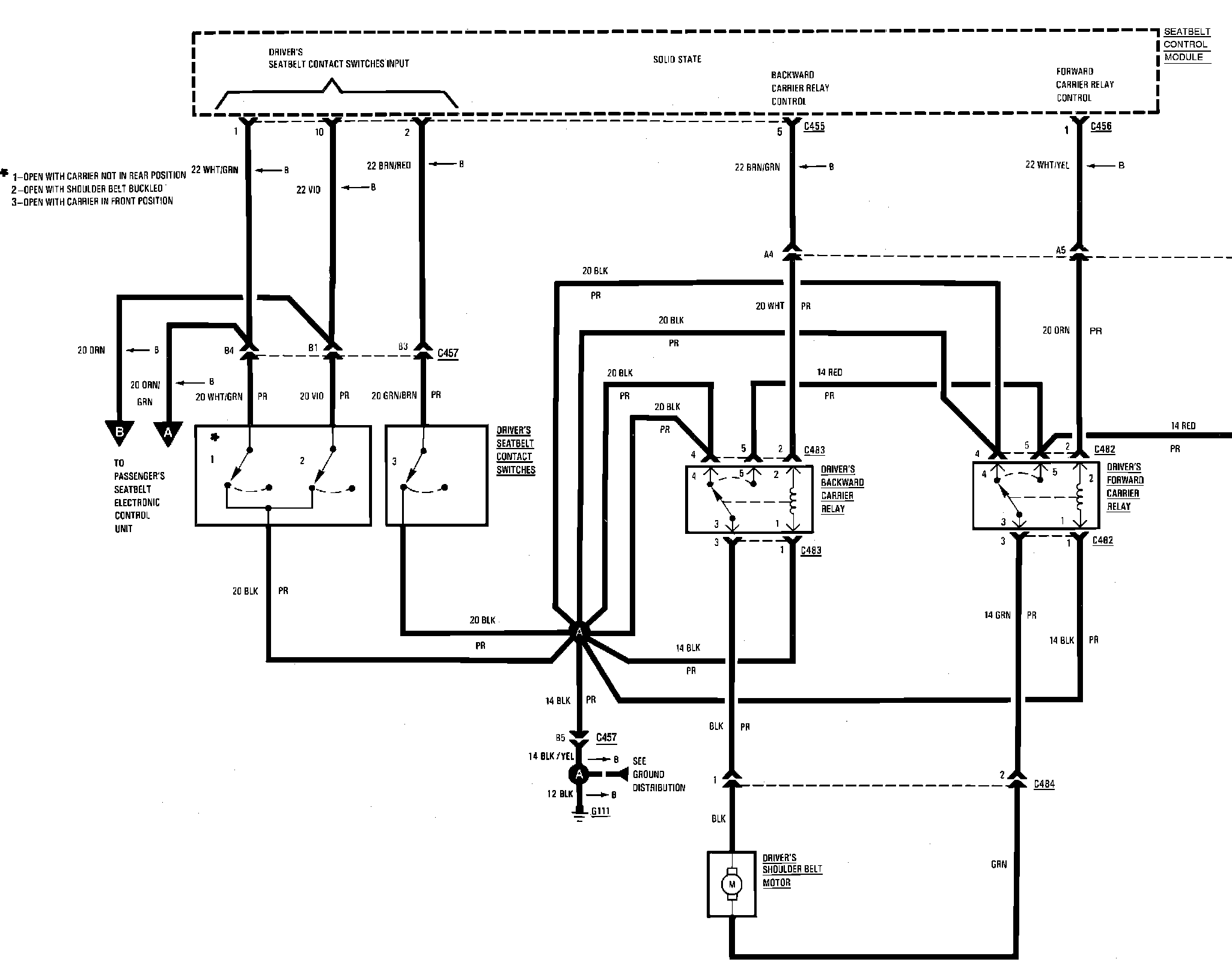

��BPassive Restraint System Wiring Circuit, Part 1 of 3:

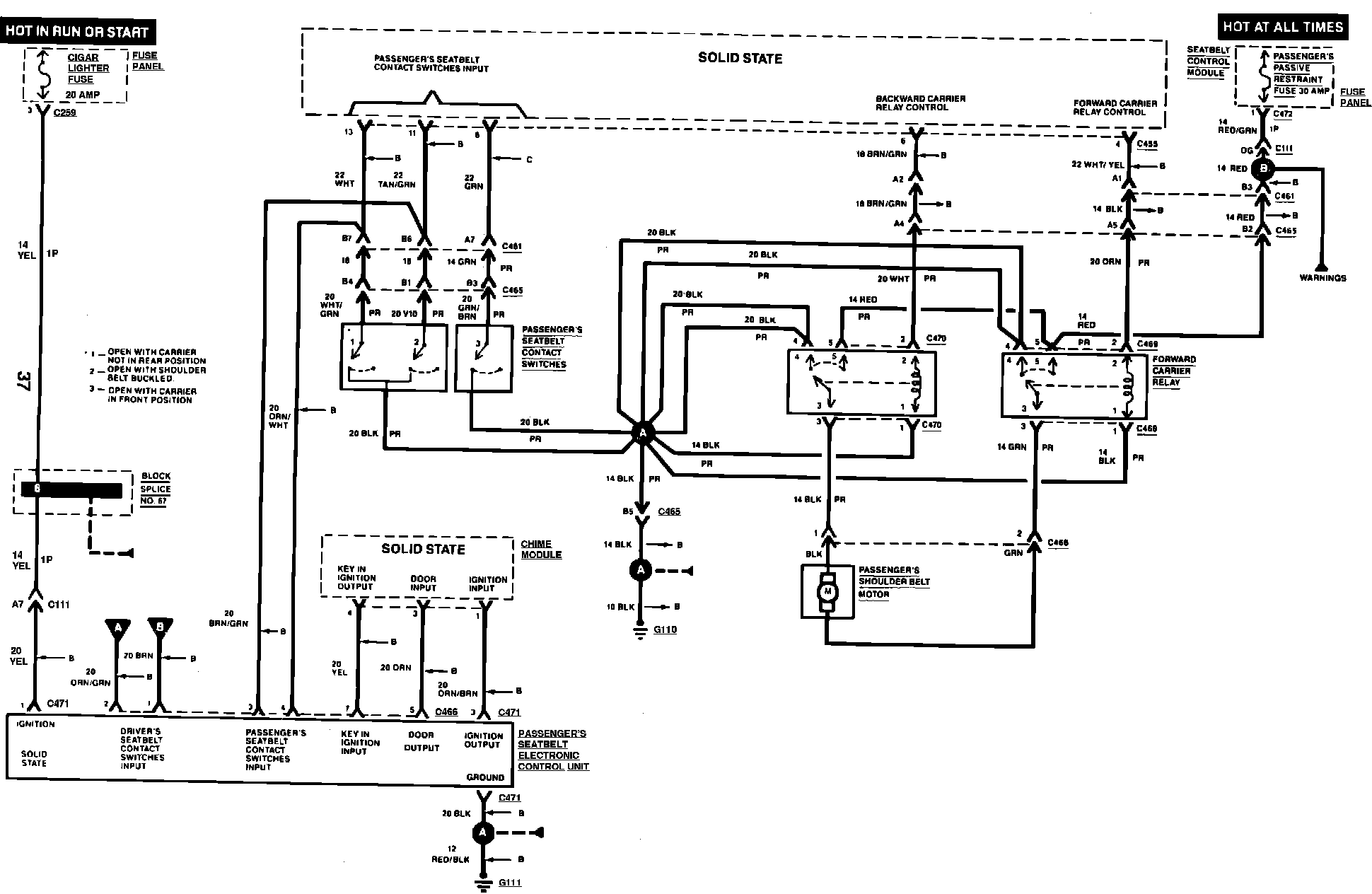

*,�BPassive Restraint System Wiring Circuit, Part 2 of 3:

�a�BPassive Restraint System Wiring Circuit, Part 3 of 3:
