Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1989
>>
Medallion L4-2165cc 2.2L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

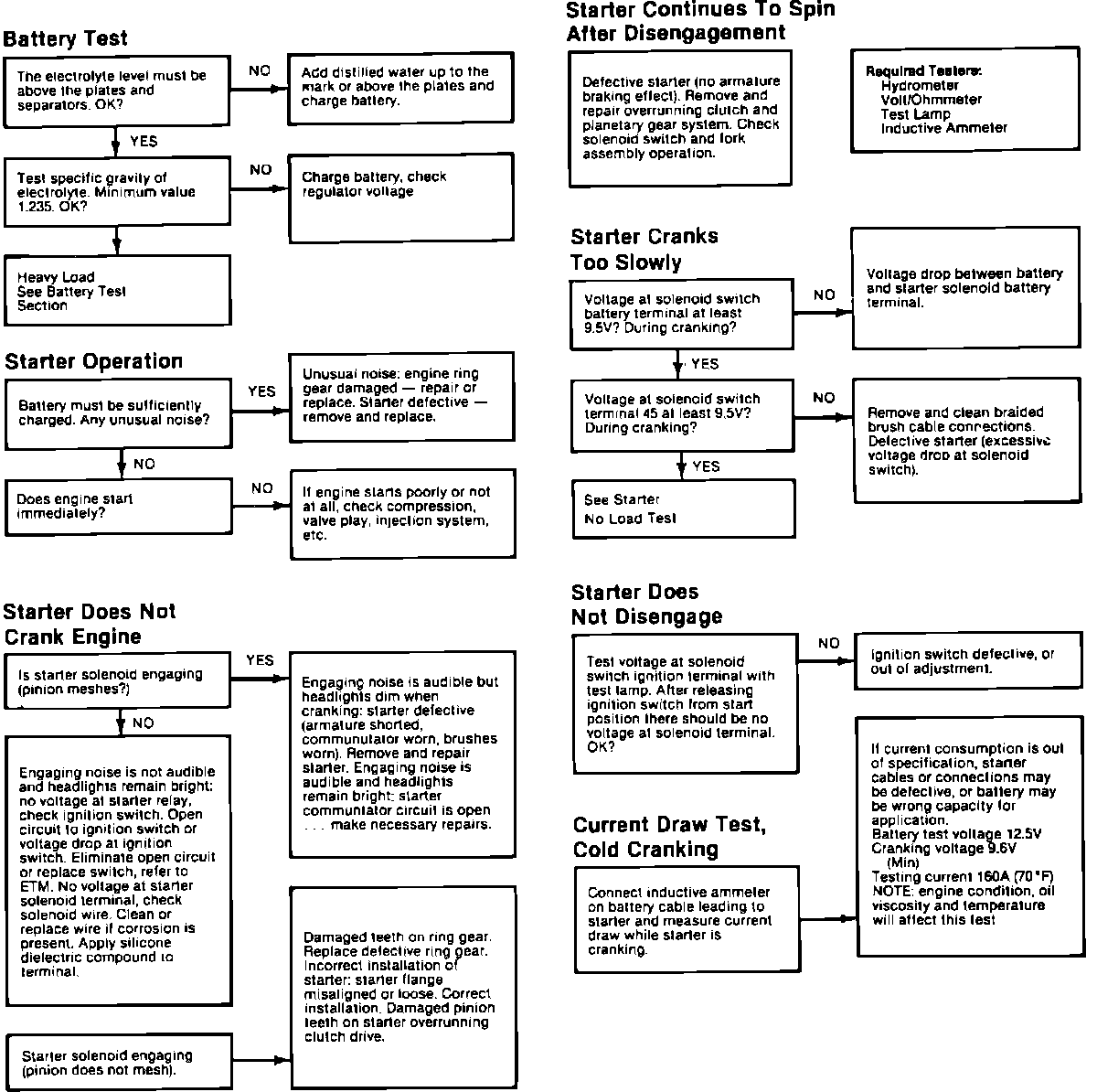

Fig. 2 Troubleshooting Starting System:
