Eagle
>>
1989
>>
Medallion Wagon L4-2165cc 2.2L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Terminal 3
Terminal 3

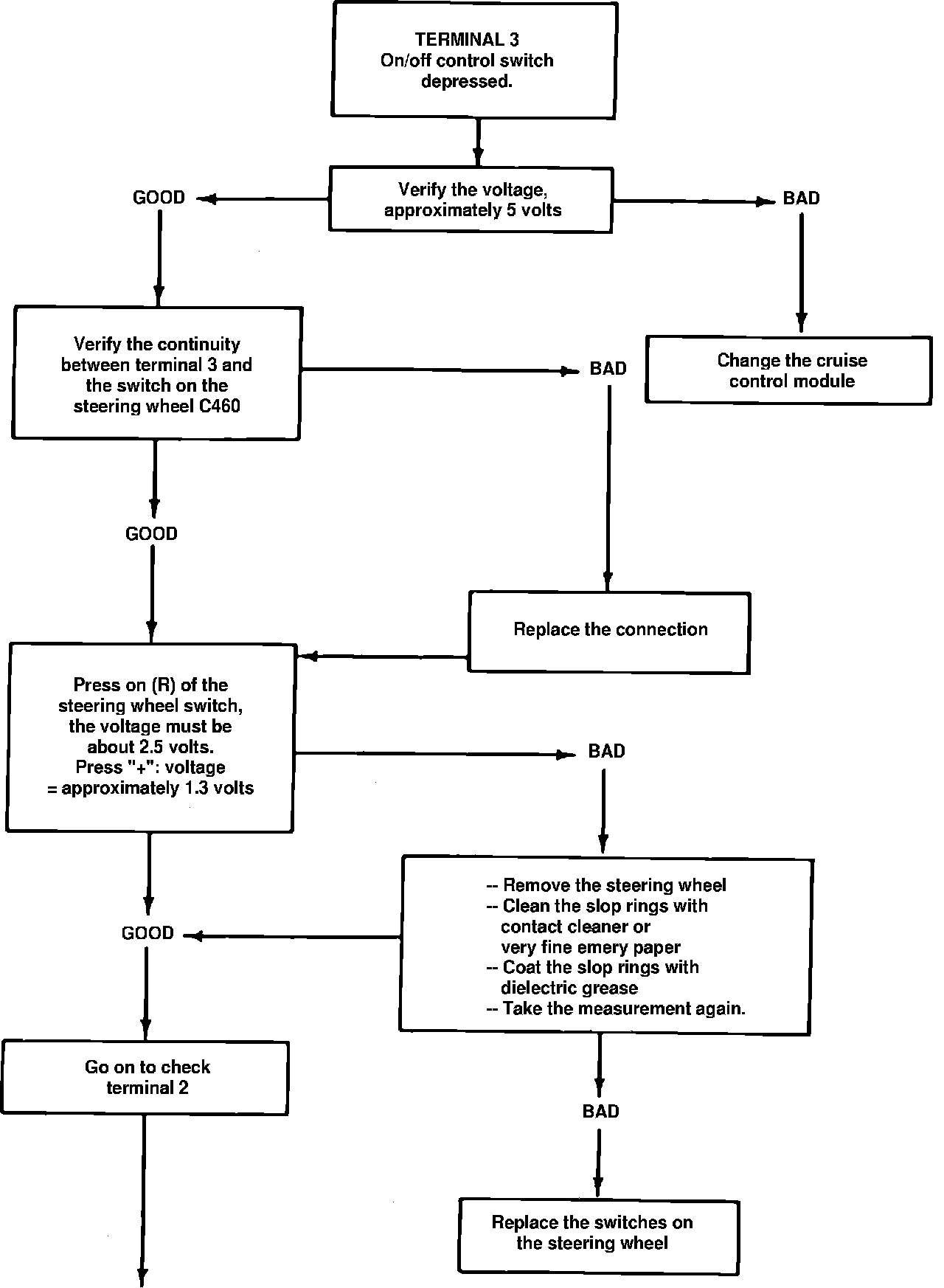

Fig. 3 Diagnosis Troubleshooting Chart (Part 3 Of 7) W/Hella System:
