Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1989
>>
Premier L4-150 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Maintenance Required Lamp/Indicator
>>
Maintenance Reminder Control Module

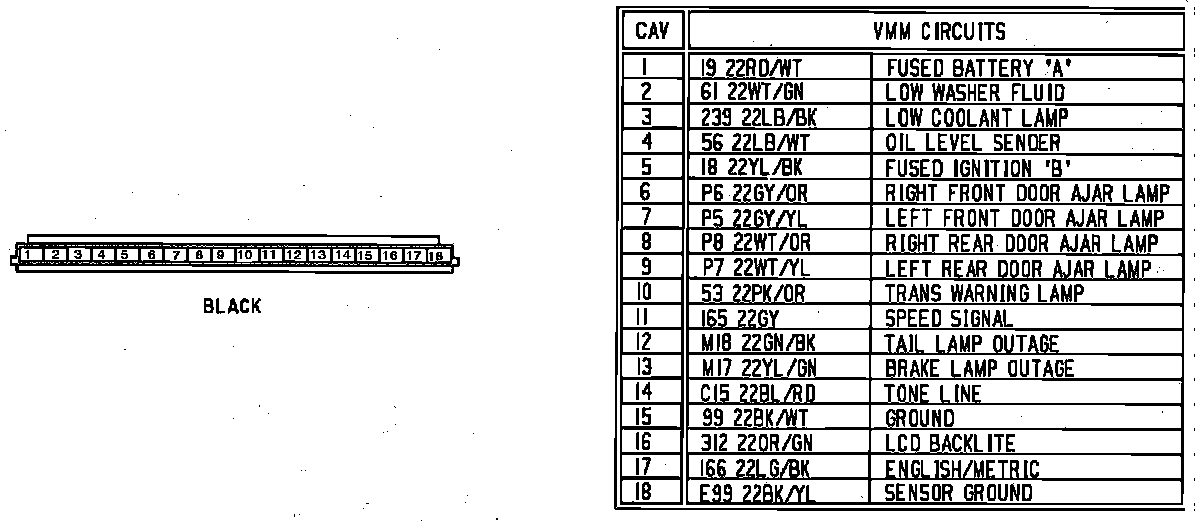

Maintenance Reminder Control Module
Vehicle Maintenance Module:
