Home
>>
Eagle
>>
1989
>>
Premier L4-150 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Air Conditioning System
Air Conditioning System

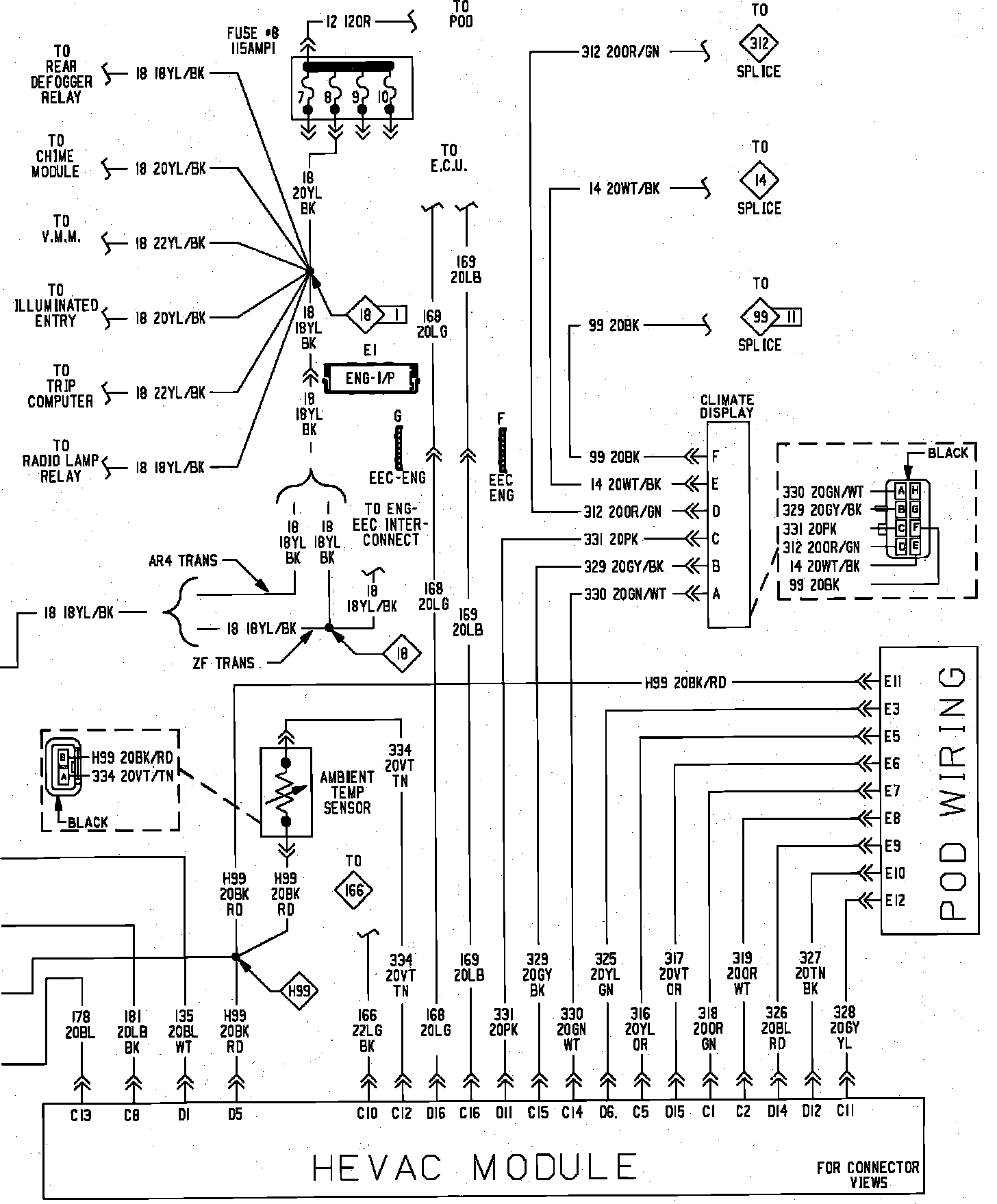

Air Conditioning (Part 2 of 2):

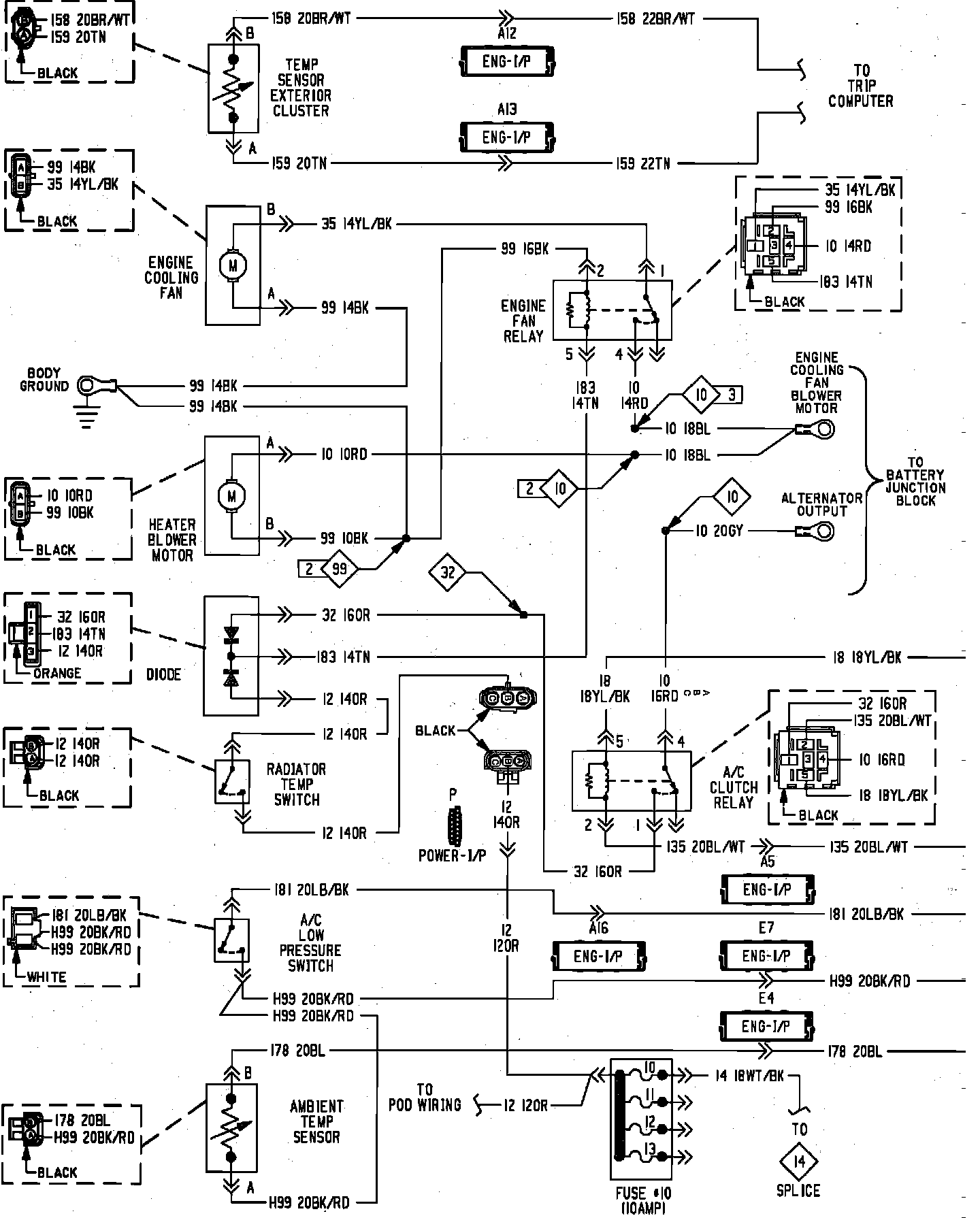

Air Conditioning (Part 1 of 2):
