Drive Belt
>>
With A/C and Power Steering
With A/C and Power Steering

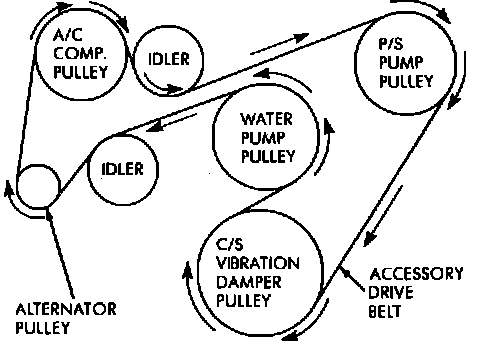

Fig. 19 Serpentine Belt Routing. With A/C:
