Electrical Diagrams

Fig. 3 Automatic Seat Belt Wiring Circuit. Inputs (Part 1 Of 2):



Fig. 3 Automatic Seat Belt Wiring Circuit. Outputs (Part 2 Of 2):

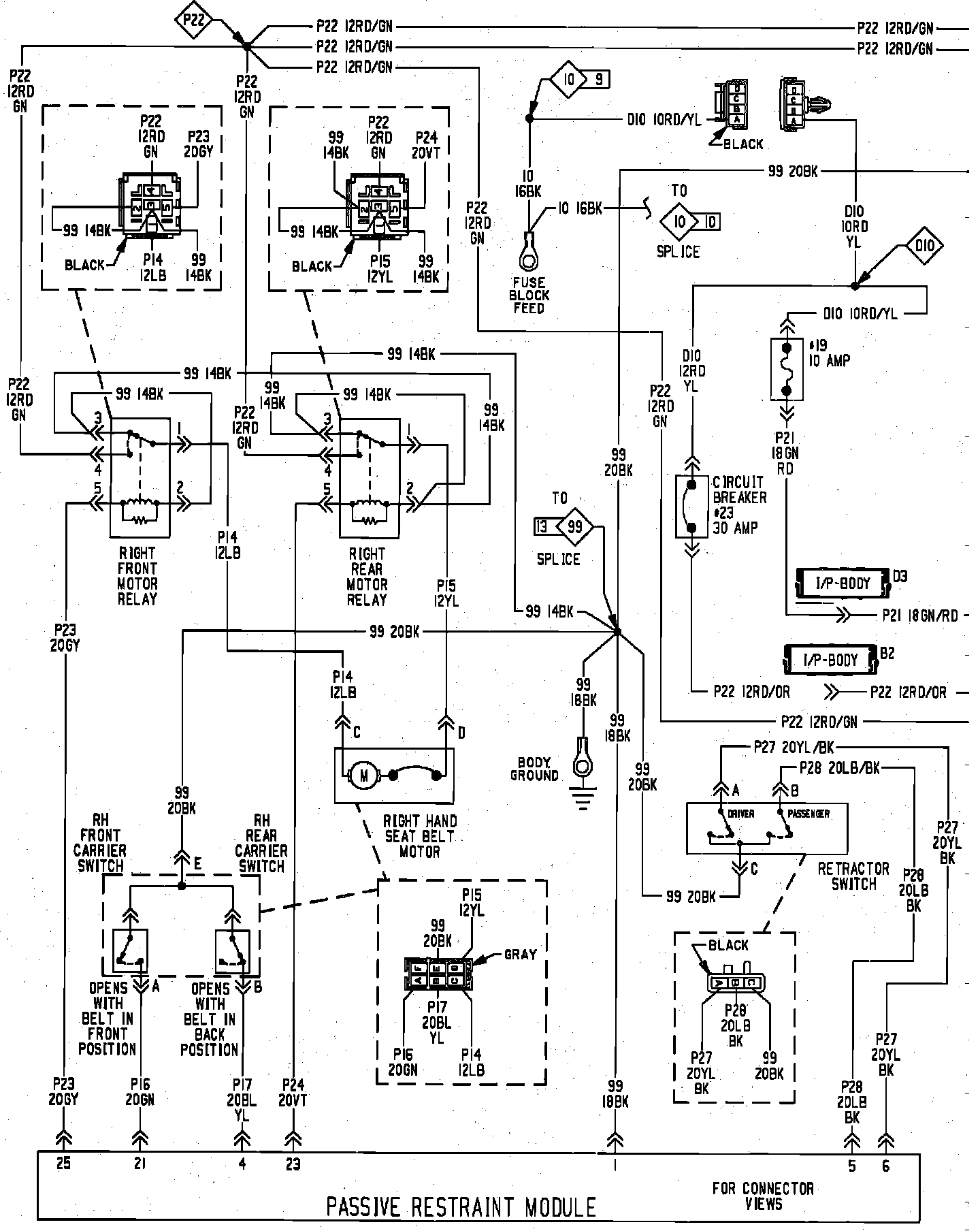

Passive Restraint System, Part 1 of 2:

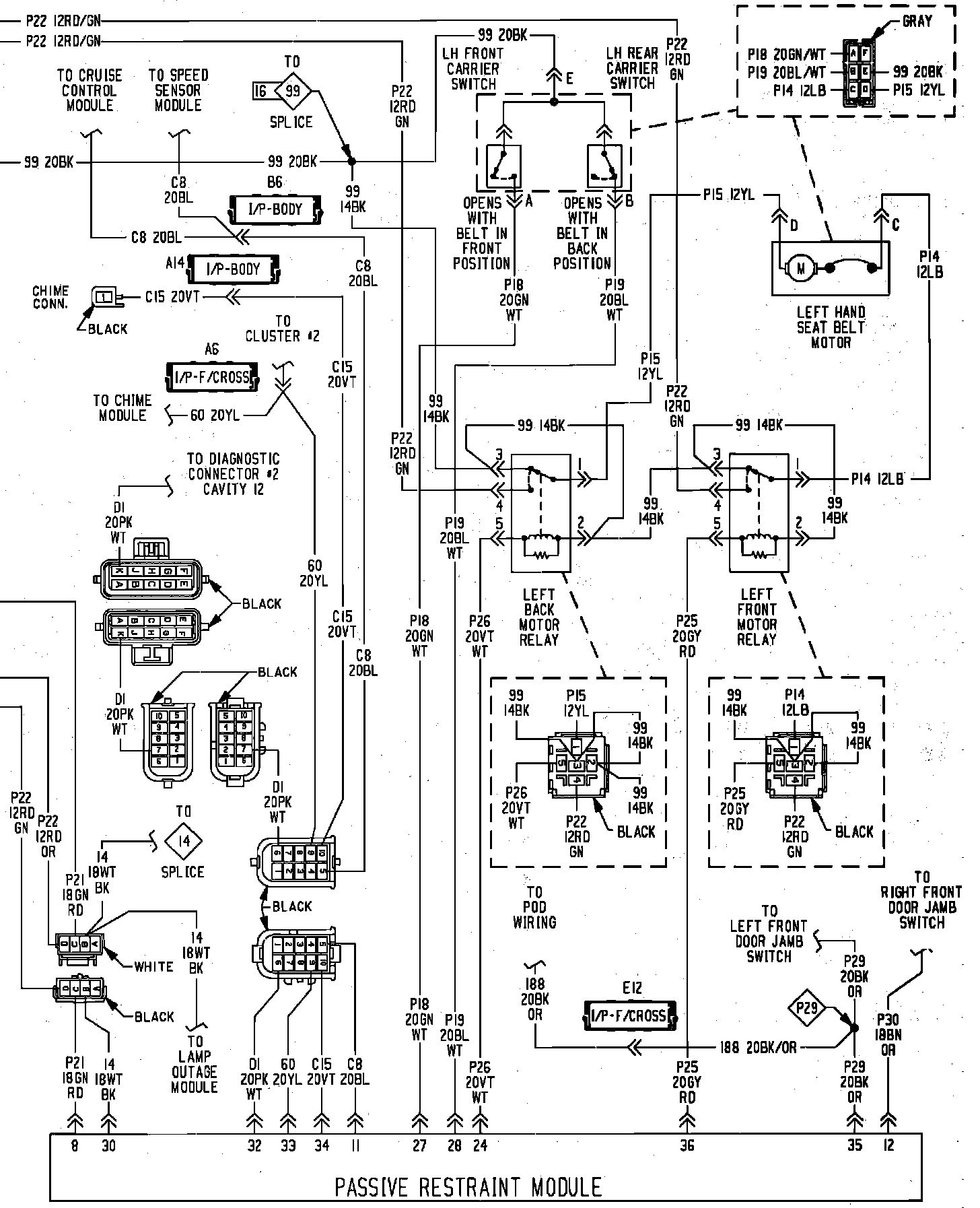

Passive Restraint System, Part 2 of 2:
