DR-11

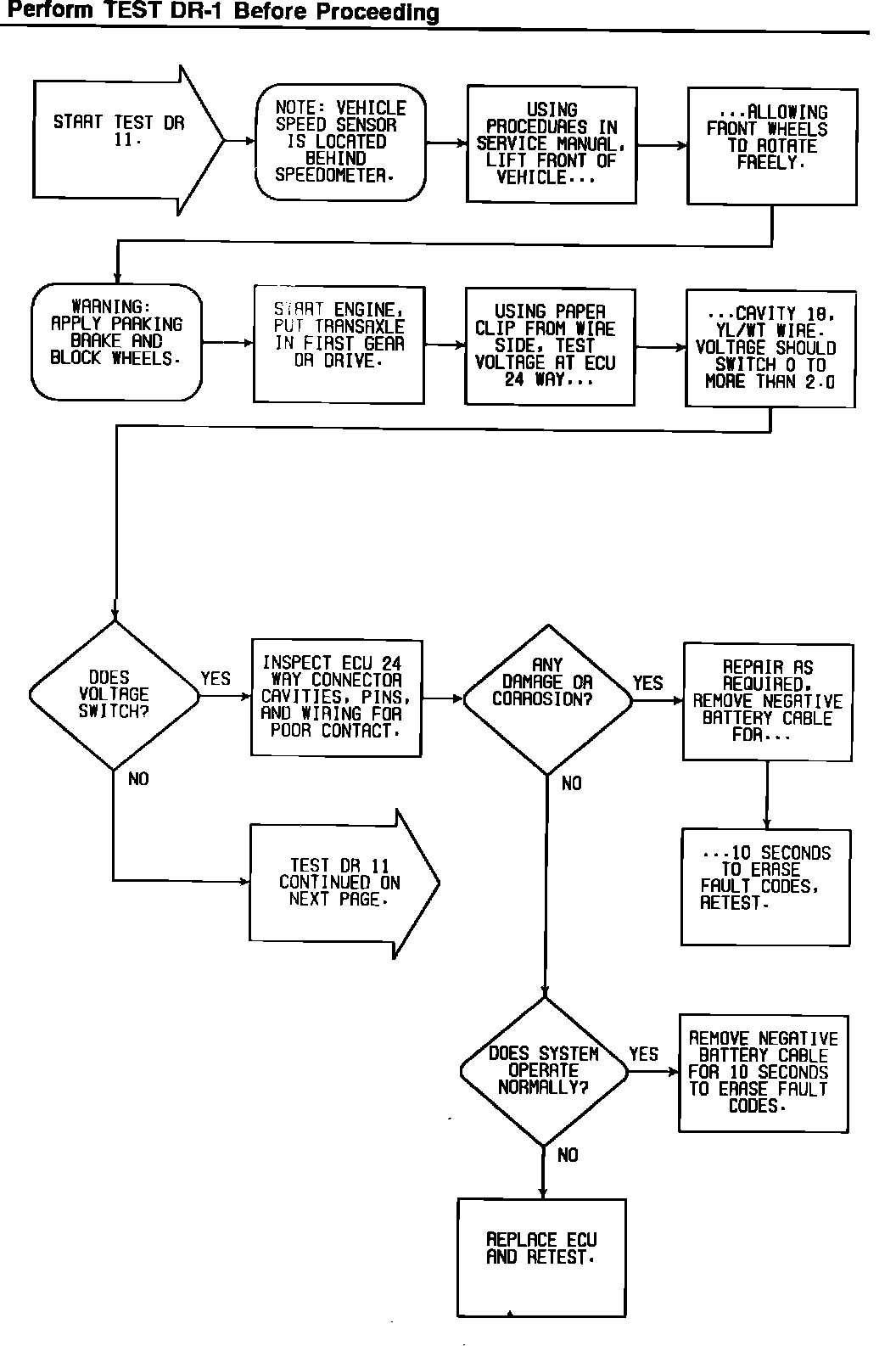

Driveability Test DR-11 (Part 1 of 2). 1989 4-89.6/1.5L:





Test DR-11 (Part 1 of 2)


Driveability Test DR-11 (Part 2 of 2). 1989 4-89.6/1.5L:





Test DR-11 (Part 2 of 2)
