Symptom Related Diagnostic Procedures

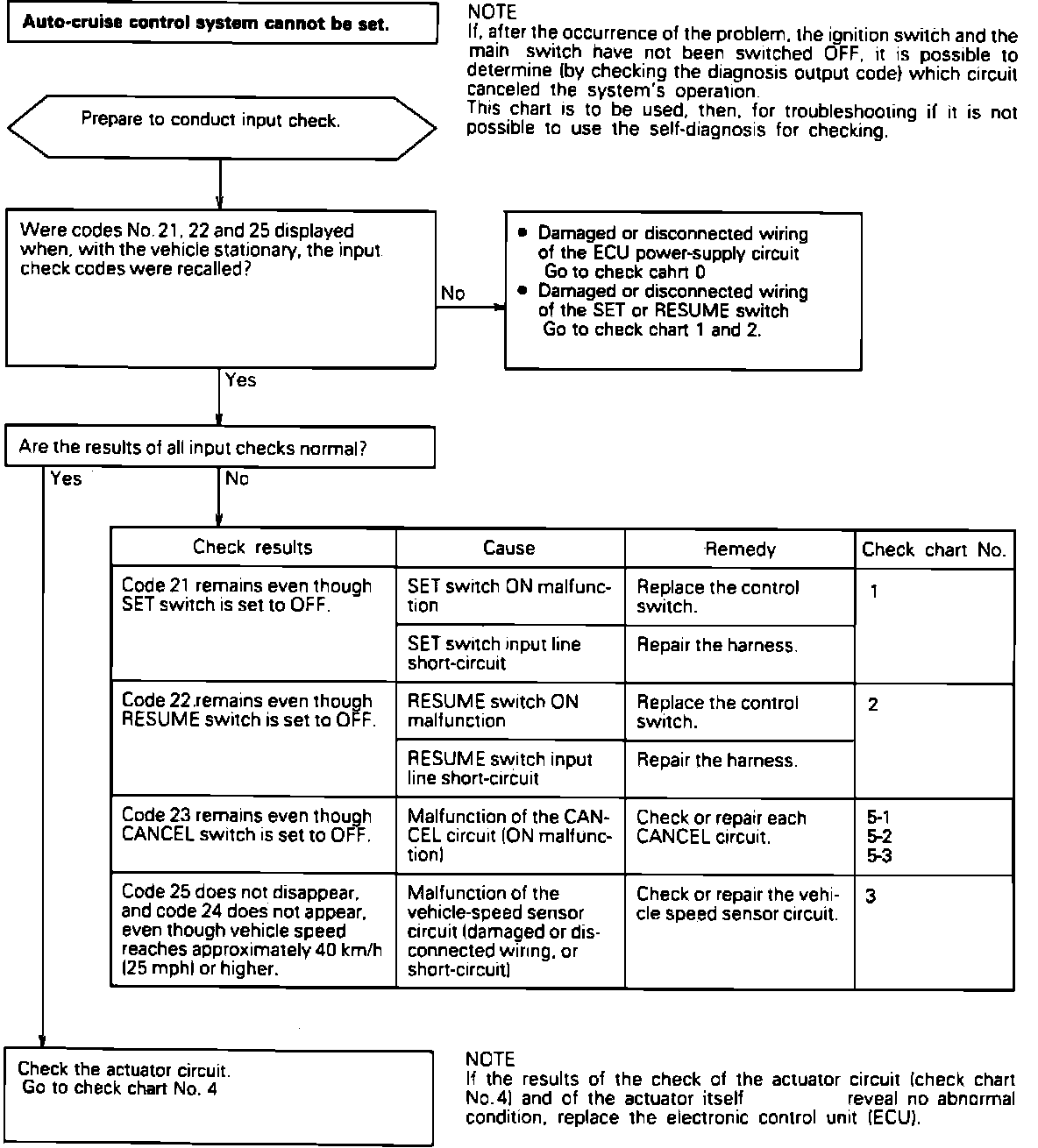

Fig. 68 Symptom Diagnosis Chart (Part 1 Of 4):

Fig. 68 Symptom Diagnosis Chart (Part 2 Of 4):

Fig. 68 Symptom Diagnosis Chart (Part 3 Of 4):

Fig. 68 Symptom Diagnosis Chart (Part 4 Of 4):

Refer to test charts for symptom diagnosing the speed control system, then refer to the appropriate circuit check chart indicated. Refer Cruise Control/Testing and Inspection/Procedures/Diagnostic Charts
