Instrument Cluster / Carrier: Service and Repair

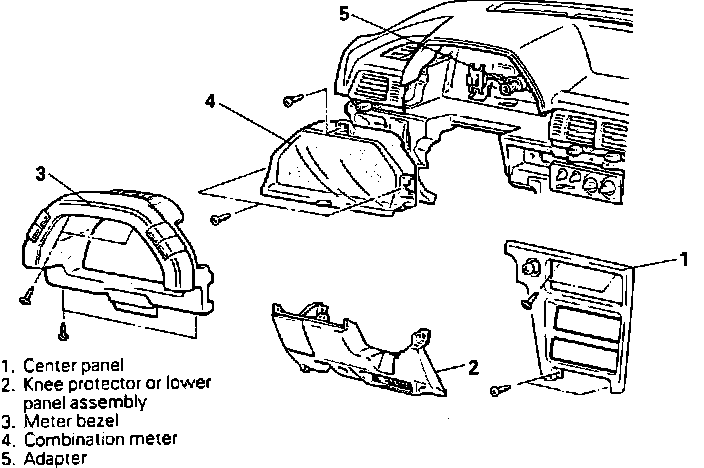

Fig. 6 Instrument Cluster:

1. Disconnect battery ground cable.
2. Remove instrument panel lower center trim panel.
3. Remove instrument panel lower left hand trim panel.
4. Remove instrument cluster bezel.
5. Remove instrument cluster attaching screws, pull cluster slightly outward and disconnect speedometer cable and electrical connectors.
6. Remove instrument cluster assembly.
7. Reverse procedure to install.
