Repair Procedure B

Figure 9:

Locating Wind Noise - Procedure B


1. If there is wind noise remaining after completing Procedure A, begin Procedure "B" by applying masking tape to the following areas.

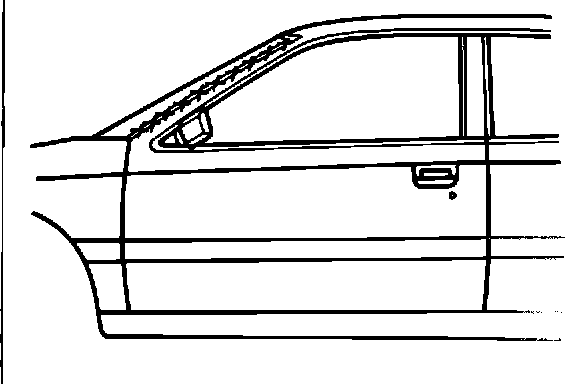

- The front door to A-pillar opening (Figure 9).

Figure 10:

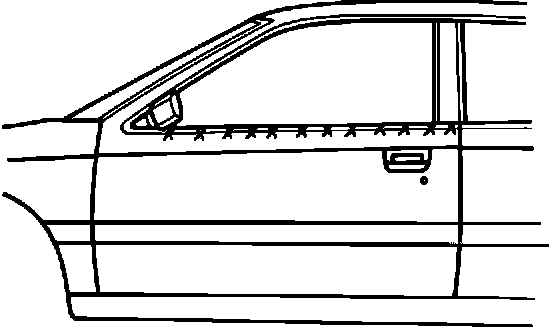

- Between the front door belt line molding and the outer door panel (Figure 10).

Figure 11:

- Around the front door opening (Figure 11).

Figure 12:

- Between the front door trim and the inner weatherstrip (Figure 12).
2. Road test the vehicle to determine the overall noise level of the vehicle with the tape in place. Systematically remove the masking tape from each of the four areas, one at a time and road test the vehicle after each section of tape is removed.


3. When a source of wind noise is determined, tape that area again and drive the vehicle to confirm the source of the noise.


4. Repair the wind noise as outlined in Repair Procedure B.

Figure 13:

Repair Procedure B


Repair the source(s) of wind noise(s) as follows:

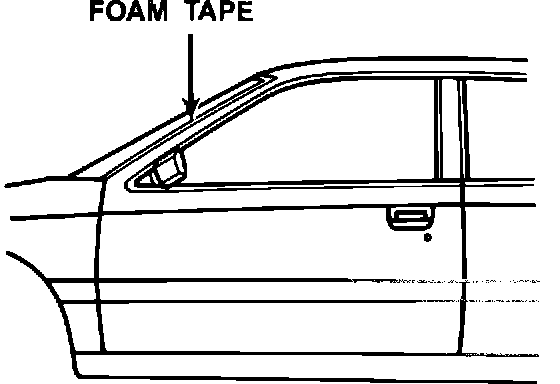

1. If clearance was found at the front of the door opening at the A-pillar, remove the foam tape from the front windshield side molding (Figure 13). Remove the foam tape and clean any residue remaining from the windshield side molding. Install the new foam tape on the windshield molding using 3M Primer # 500 for a stronger bond.
FOAM TAPE

SUMMIT MB676282
2. If excessive clearance was found at the front edge of the door opening, remove the outer door weatherstrip. Install the revised weatherstrips available through the parts system under the existing part number.


SUMMIT

LH MB546383

RH MB546384

Figure 14:

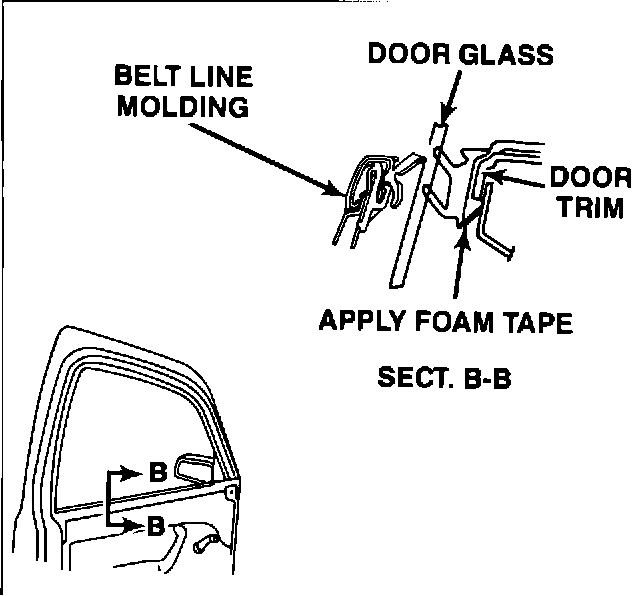

3. If noise was being created between the belt line molding and the outer door panel, remove the garnish molding and the belt line molding (Figure 14). Apply foam tape on the full length of the belt line molding as shown. Locally purchase 3 mm. dia. butyl tape and apply it on the top end of the door outer panel end to end. Install the belt line molding and the garnish molding.
FOAM TAPE

SUMMIT MB676284

Figure 15:

4. If wind noise was coming from the front door trim panel and the inner weatherstrip, remove the door trim panel (Figure 15) and apply foam tape between the front door trim panel and the inner weatherstrip. Drive the vehicle to confirm the repair.
FOAM TAPE

SUMMIT MB676286


POLICY: Information only.
