Operation CHARM: Car repair manuals for everyone.
Home >> Eagle >> 1990 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Front Door >> Front Crossbody to Doors Connector

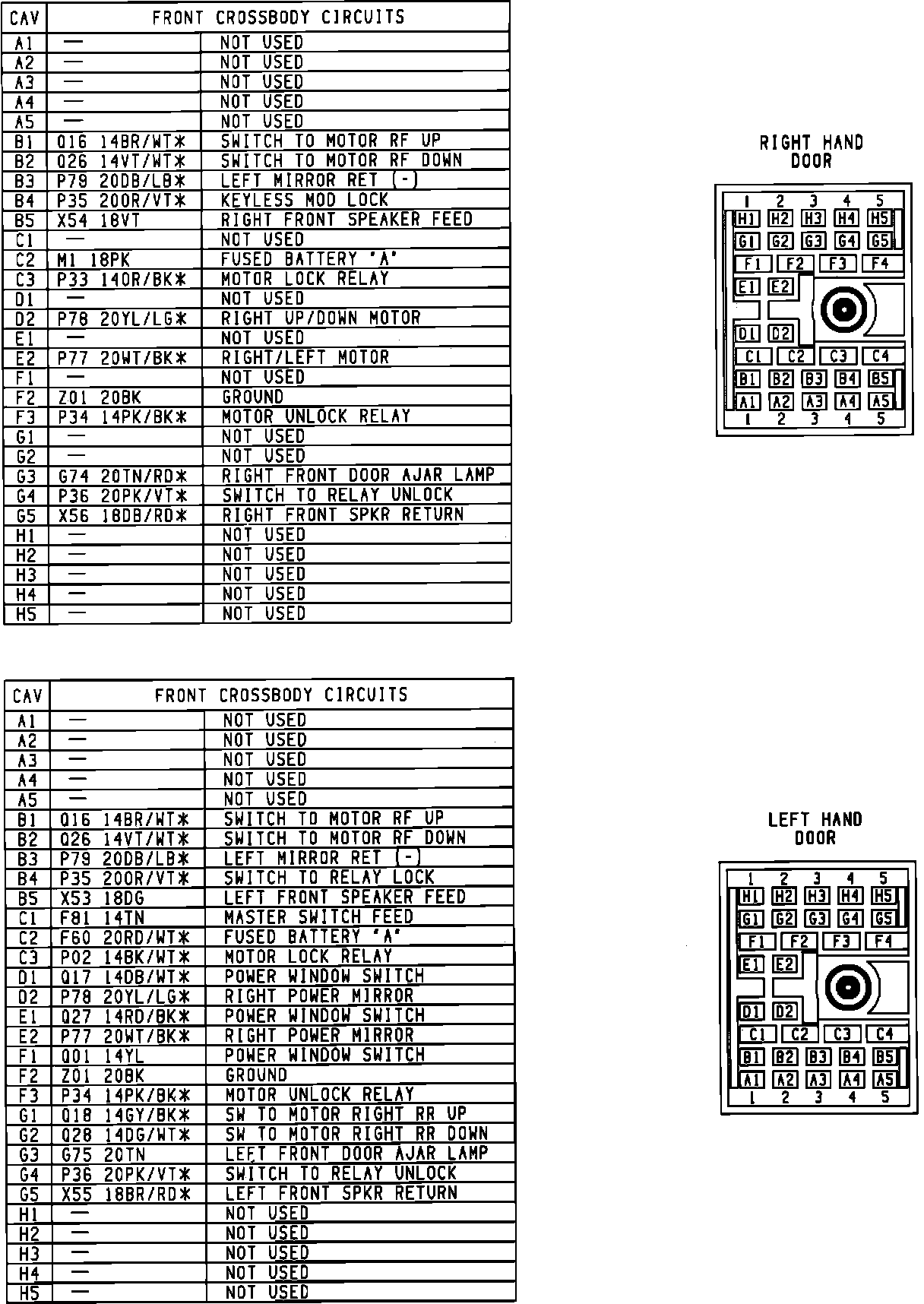

Front Crossbody to Doors Connector

Front Crossbody To Doors Connector:
