Instrument Cluster / Carrier
>>
Power Circuit
Power Circuit

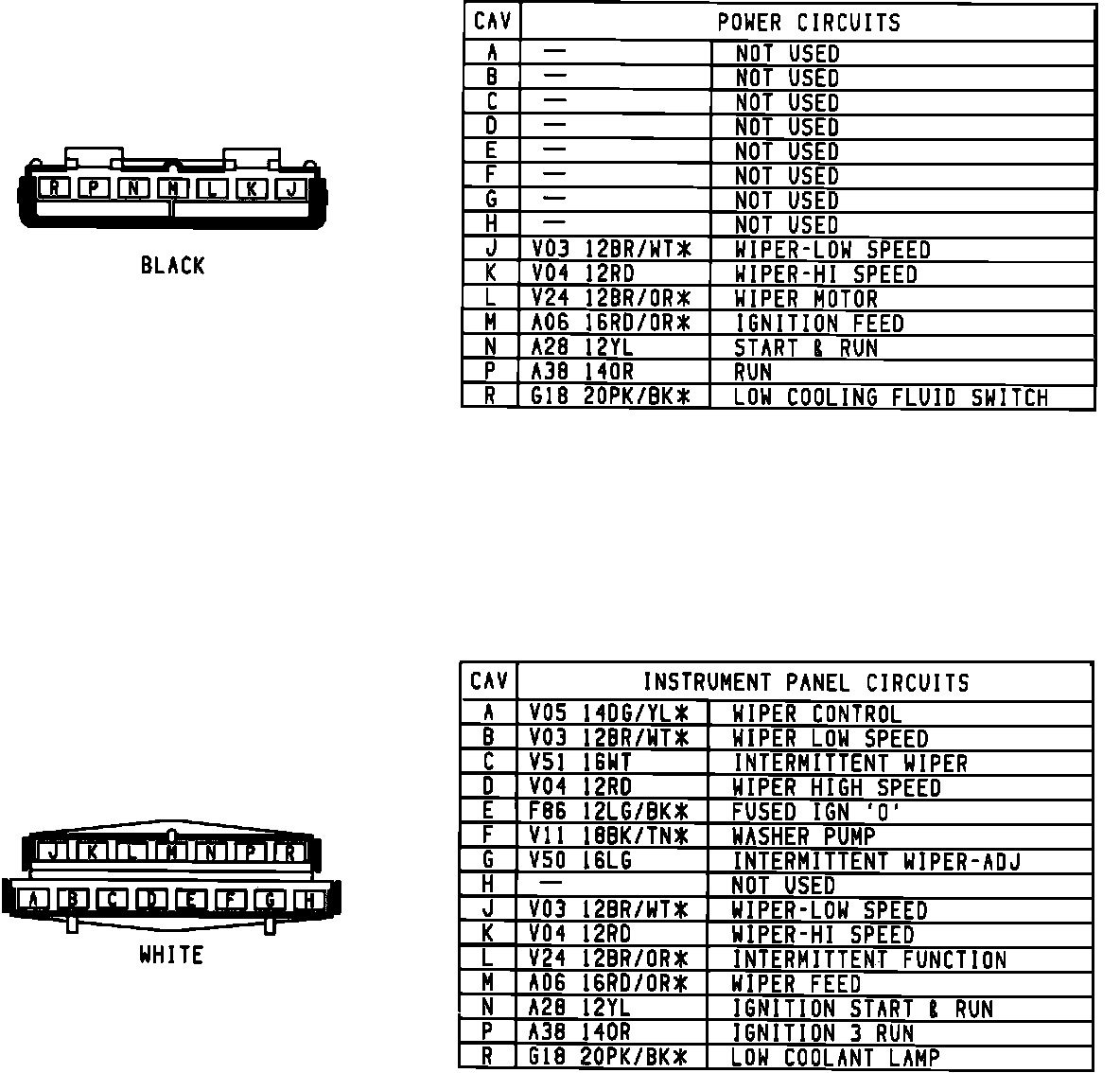

Power Circuit To Instrument Panel Connector:
