Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1990
>>
Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

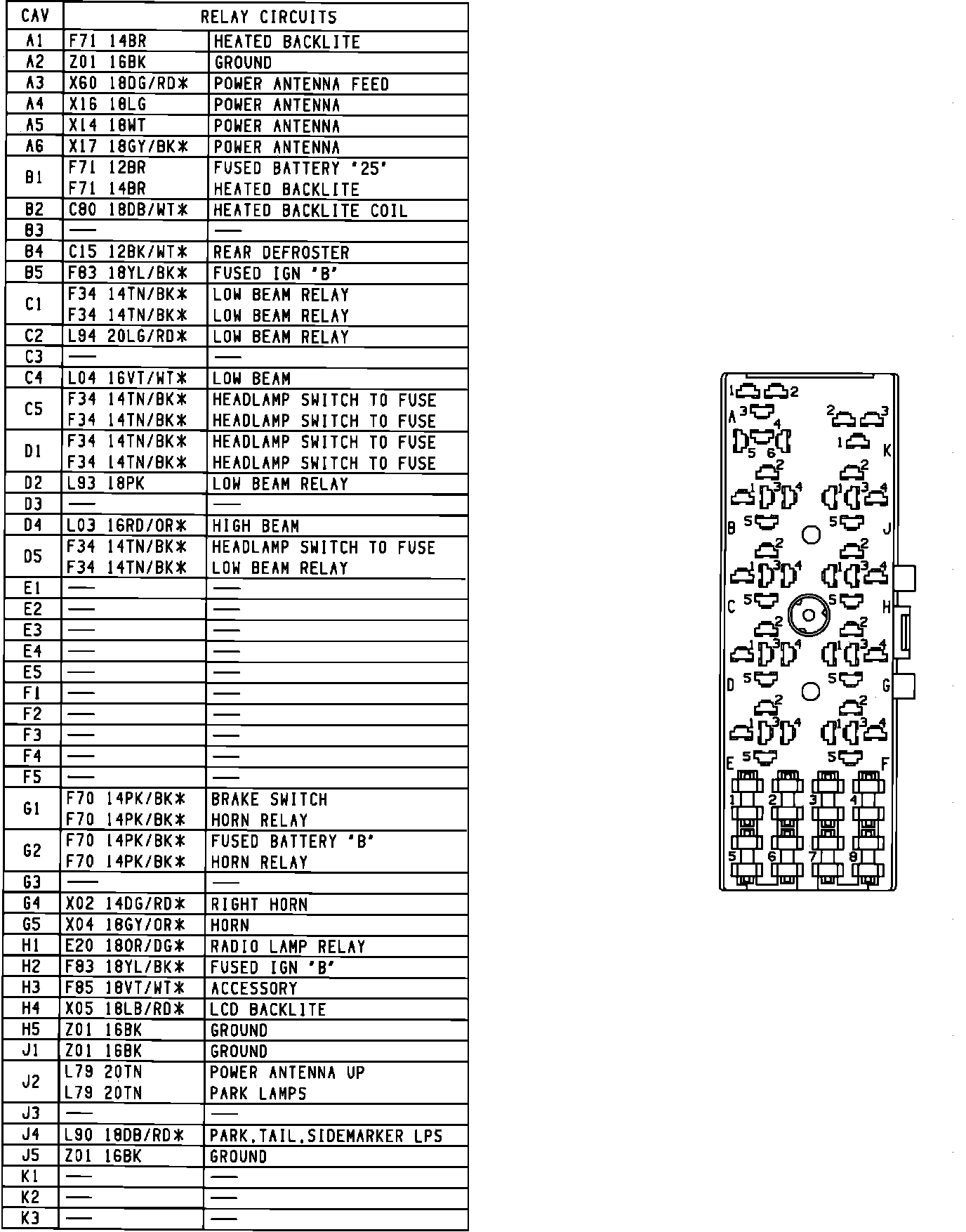

Relay Module
Relay Module
Relay Connector:
