Home
>>
Eagle
>>
1990
>>
Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Courtesy Lamp
Courtesy Lamp

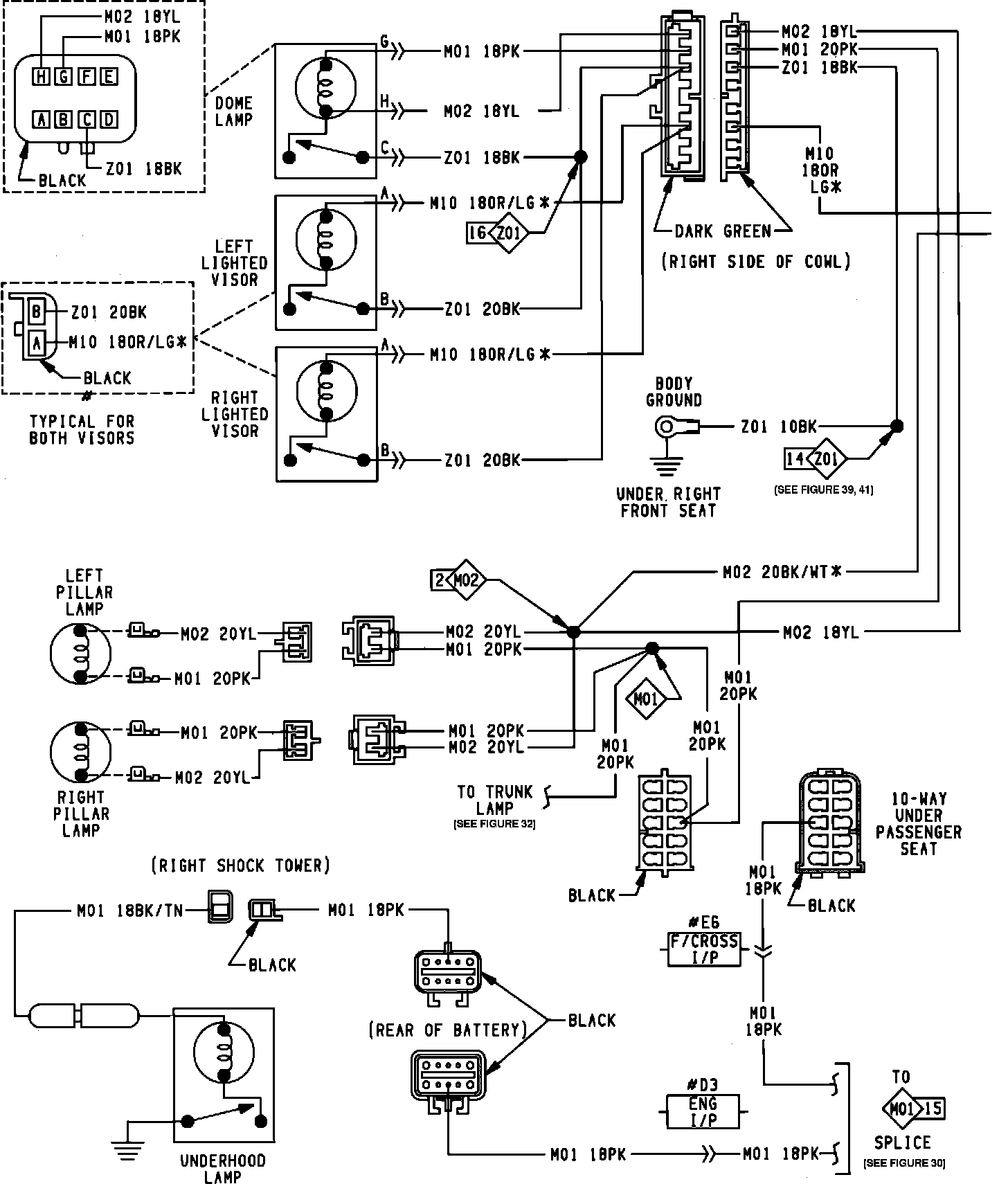

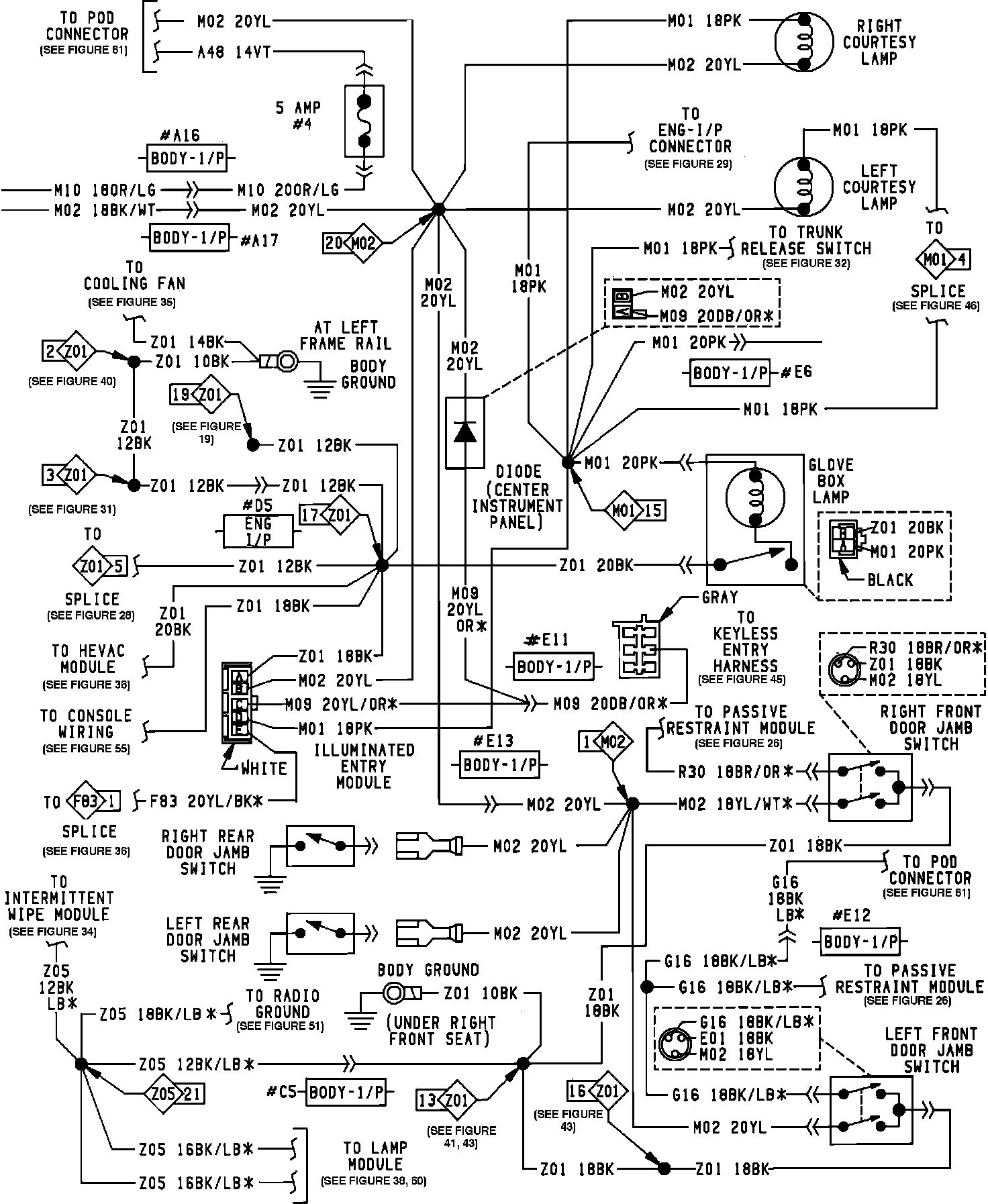

Courtesy & Dome Lamps:
Courtesy & Dome Lamps:
