Home >> Eagle >> 1990 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Without CD Player

Without CD Player

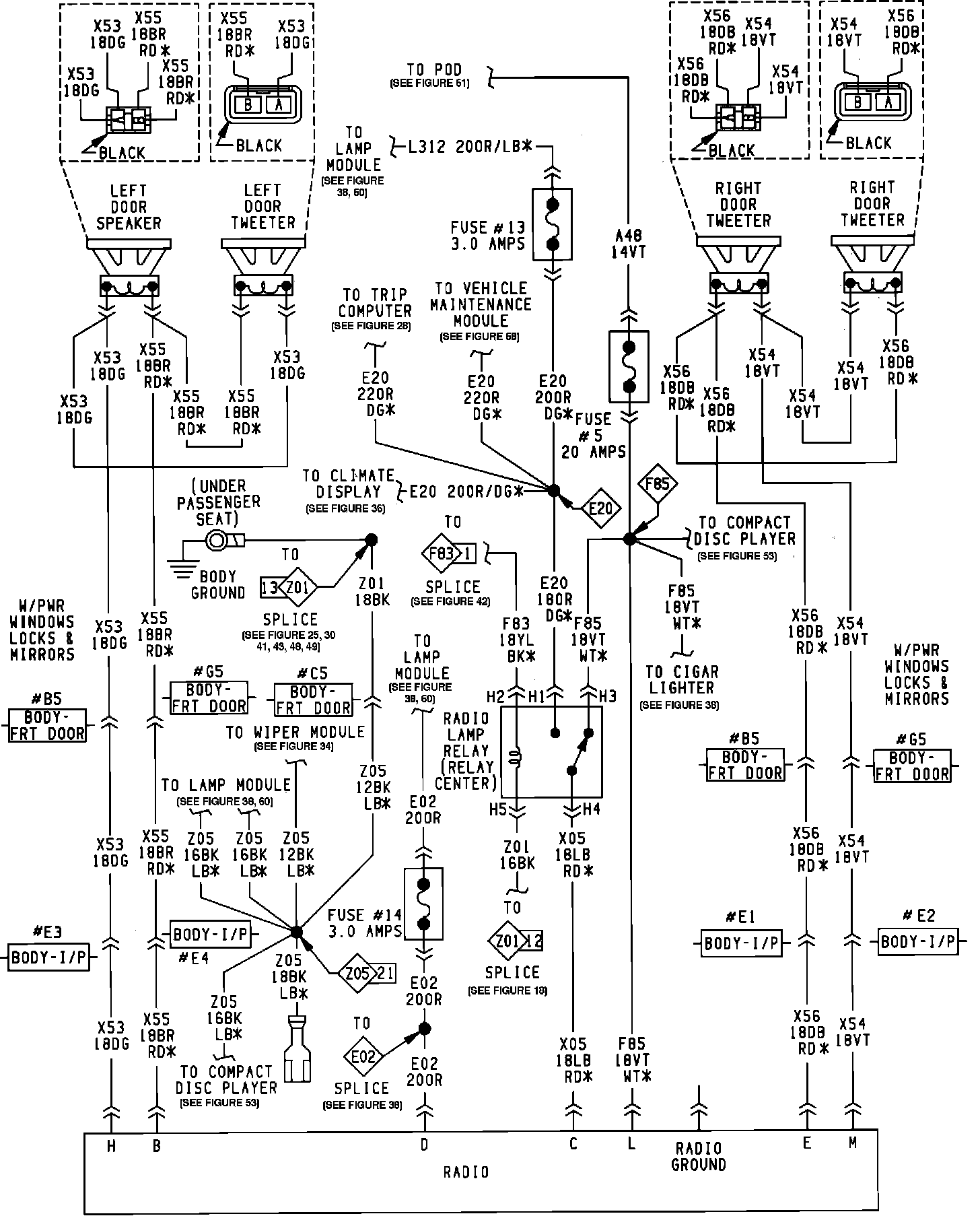

Radio & Speakers:

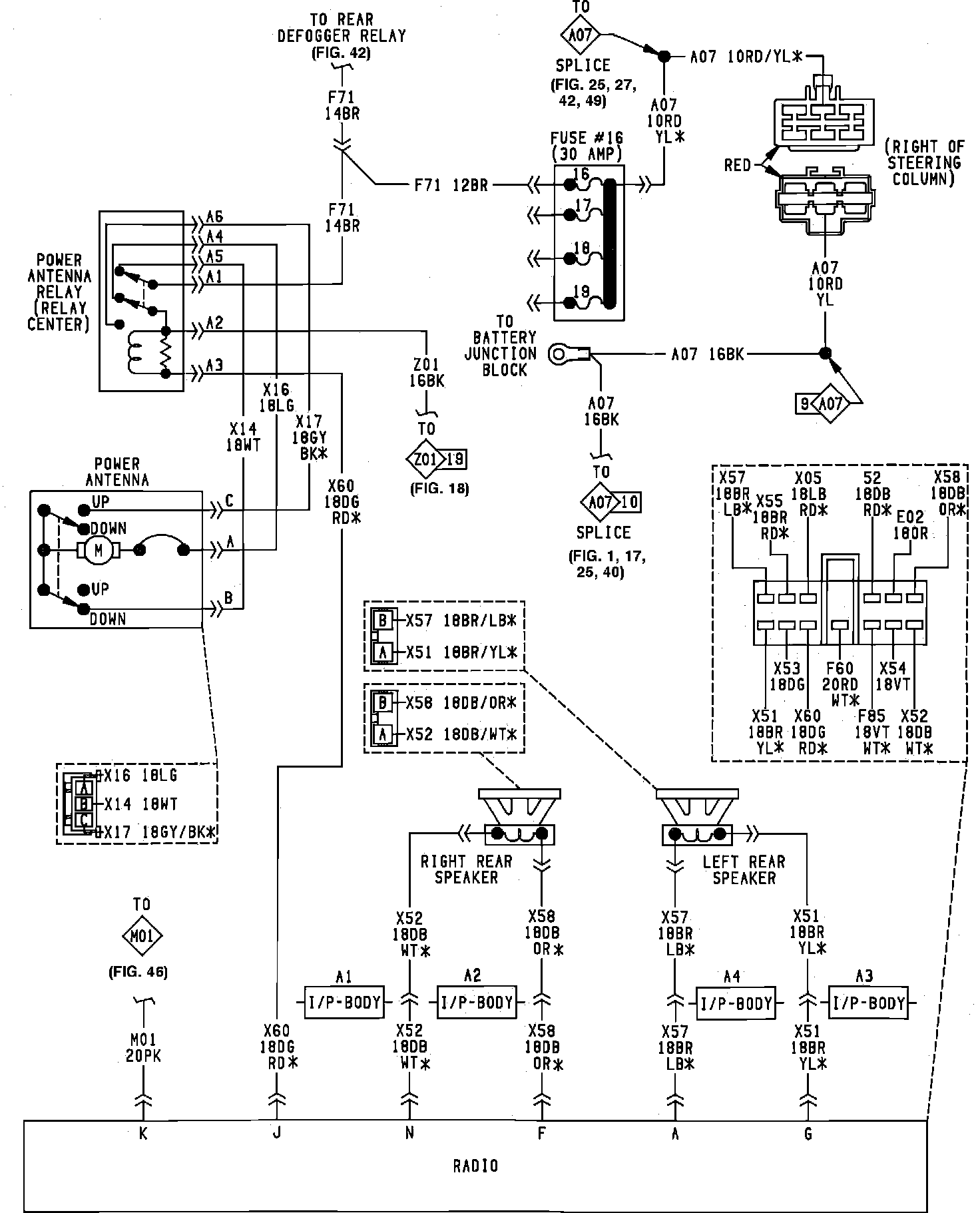

Radio & Speakers:
