Home >> Eagle >> 1990 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Speaker >> With Compact Disc

With Compact Disc

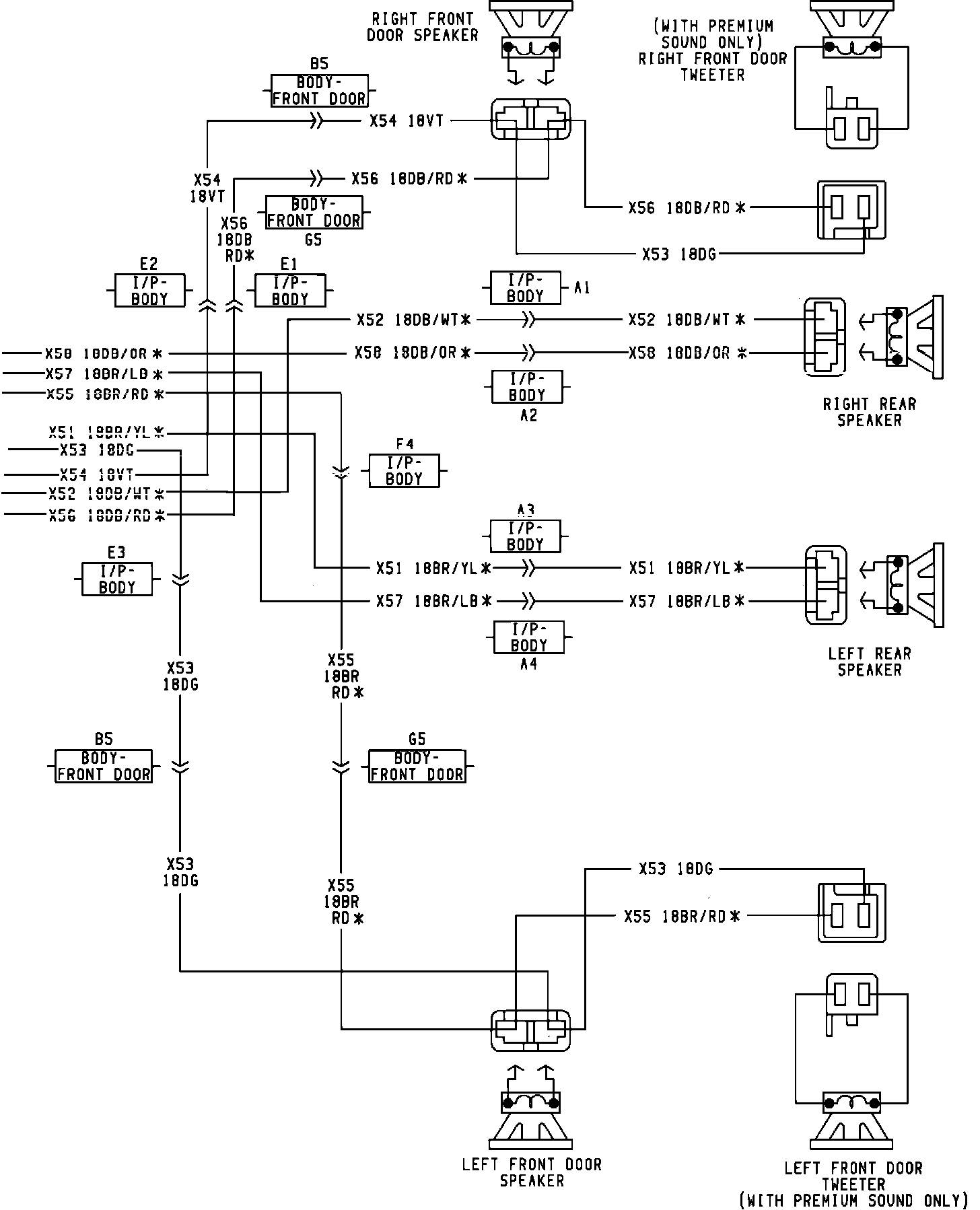

Radio W/Compact Disc & Speakers:



Radio W/Compact Disc & Speakers:
