System Diagram

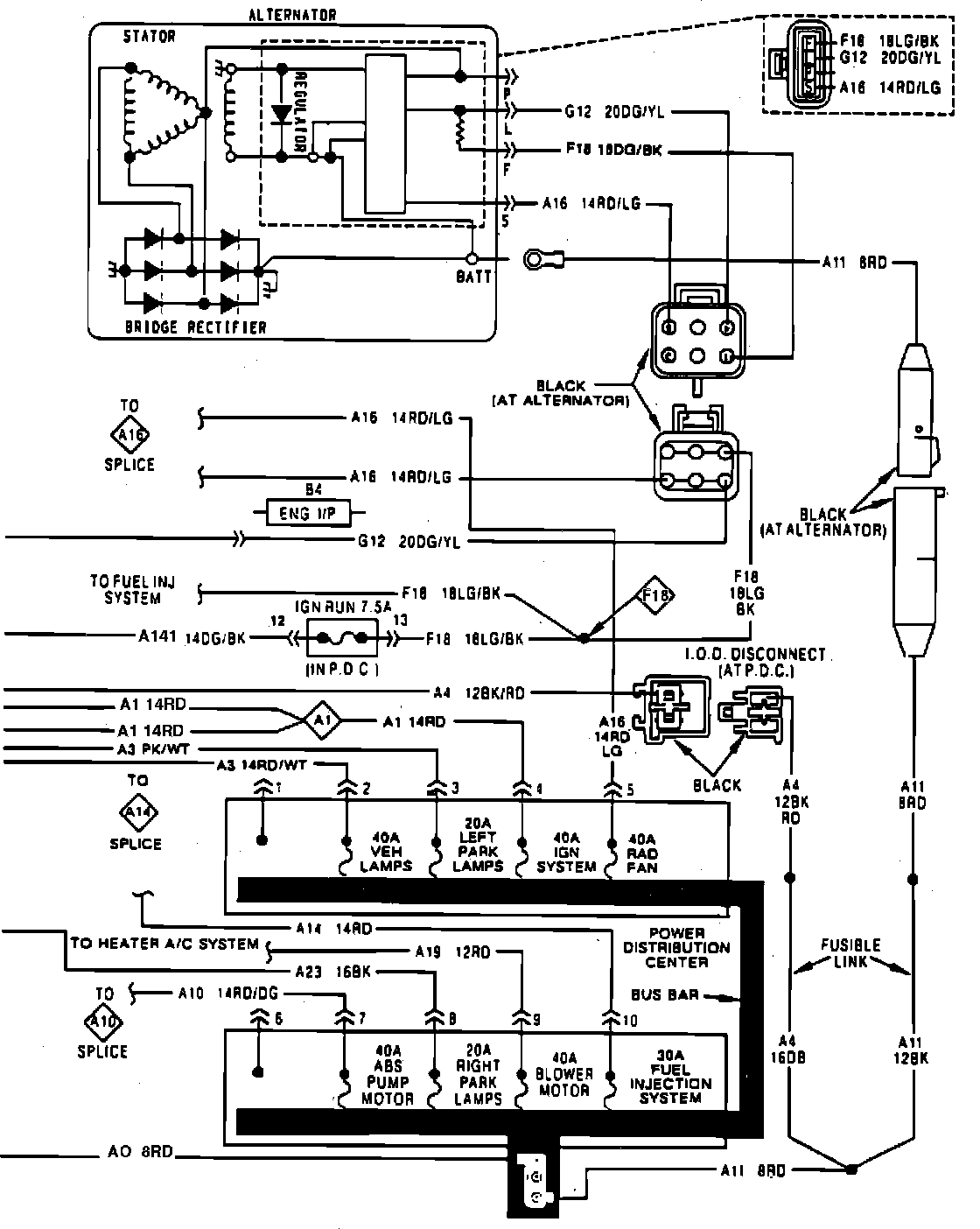

Fig. 11 Wiring Diagram Of Mitsubishi Charging System (Part 1 Of 2):

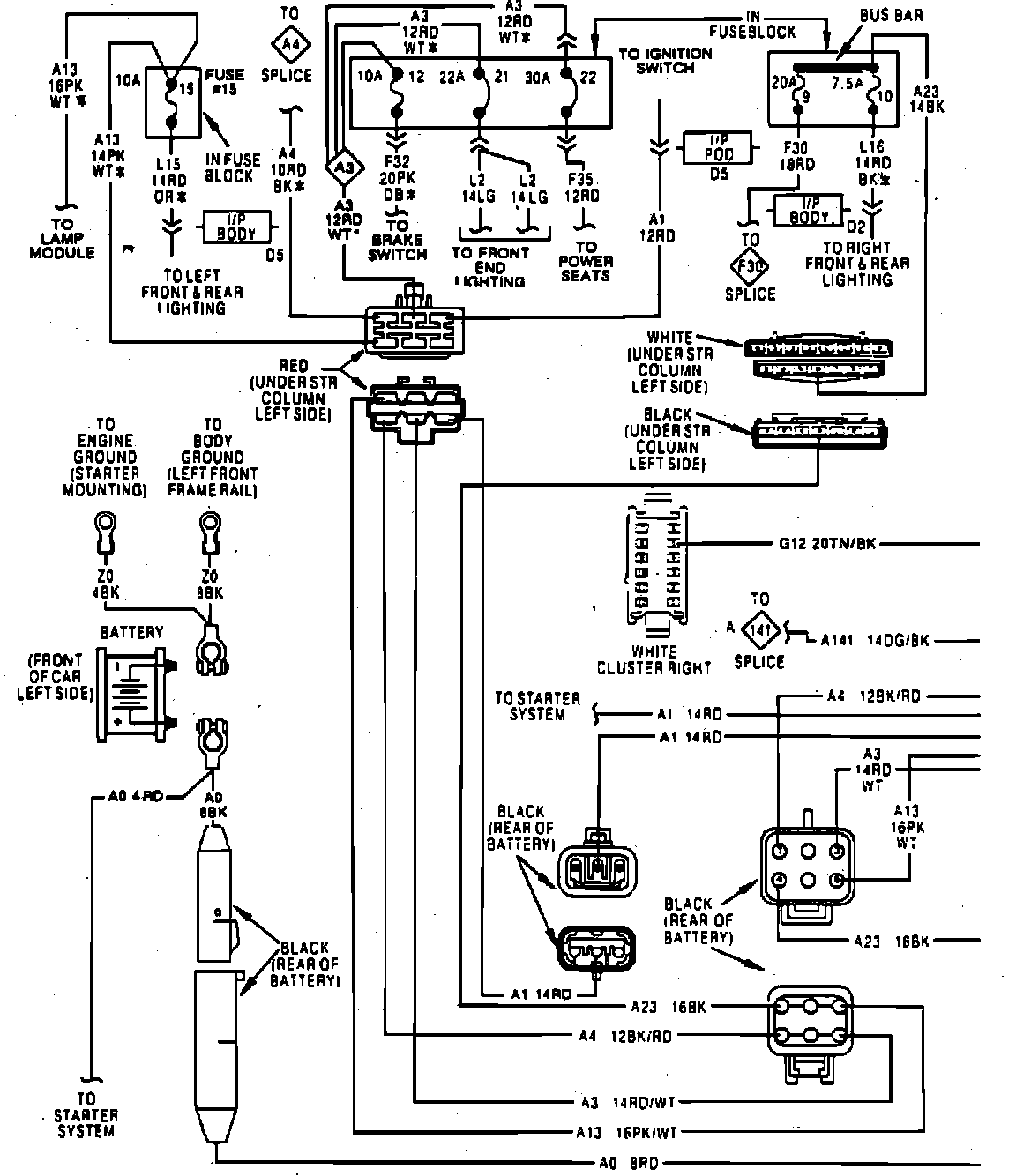

Fig. 11 Wiring Diagram Of Mitsubishi Charging System (Part 2 Of 2):

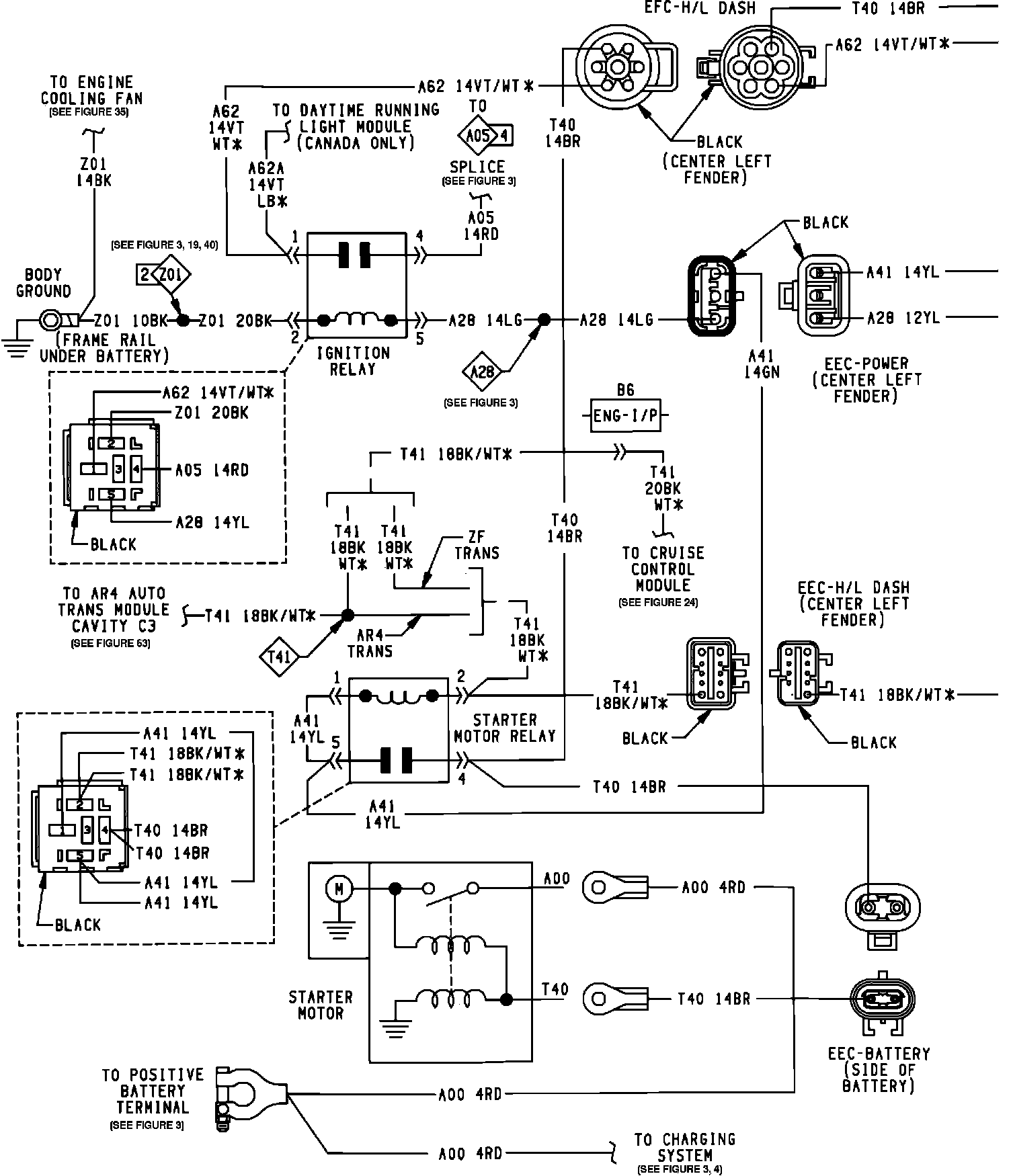

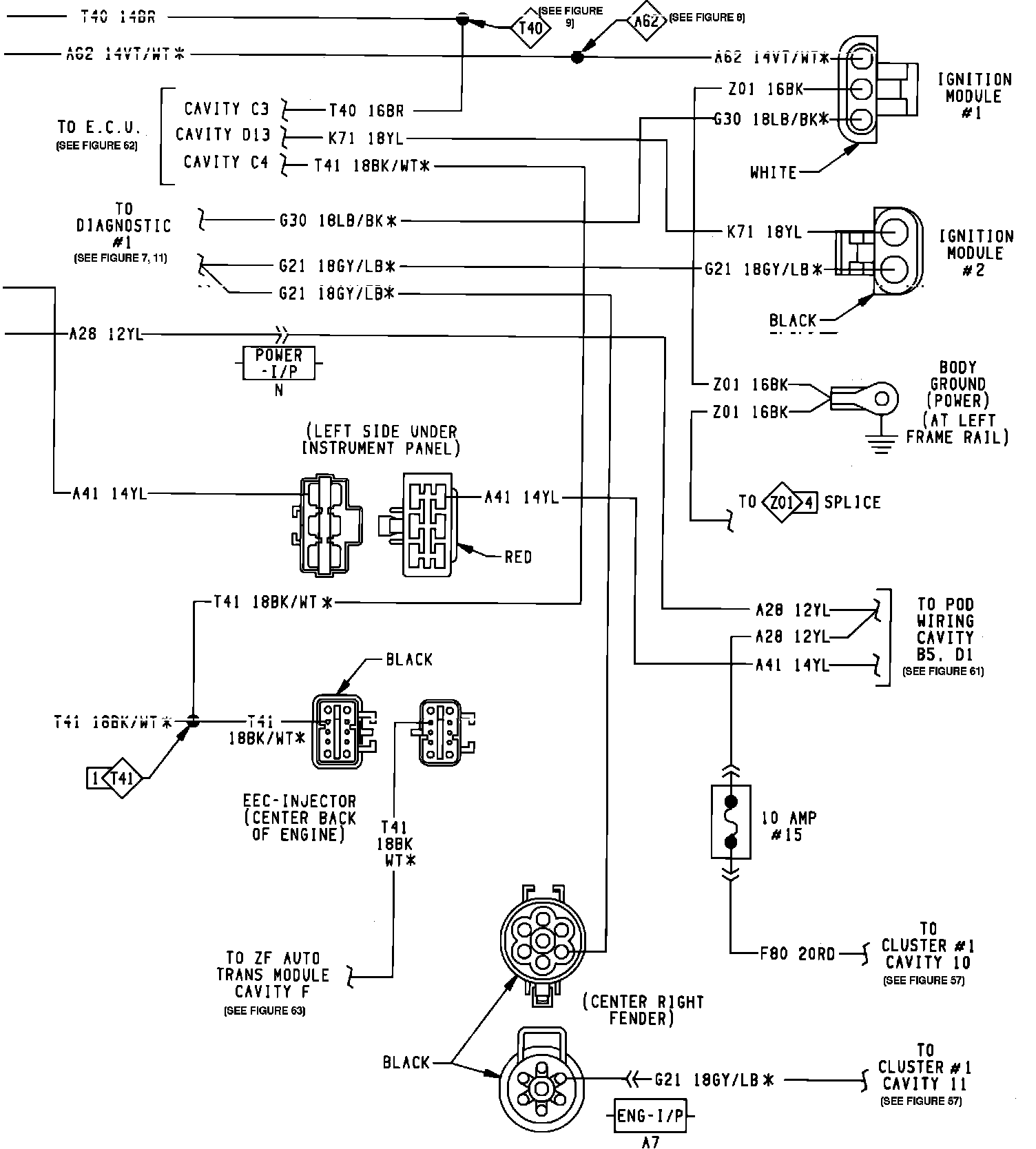

Starting System:

Starting System:
