Right Body Harness to Body
Right Body Harness to Body

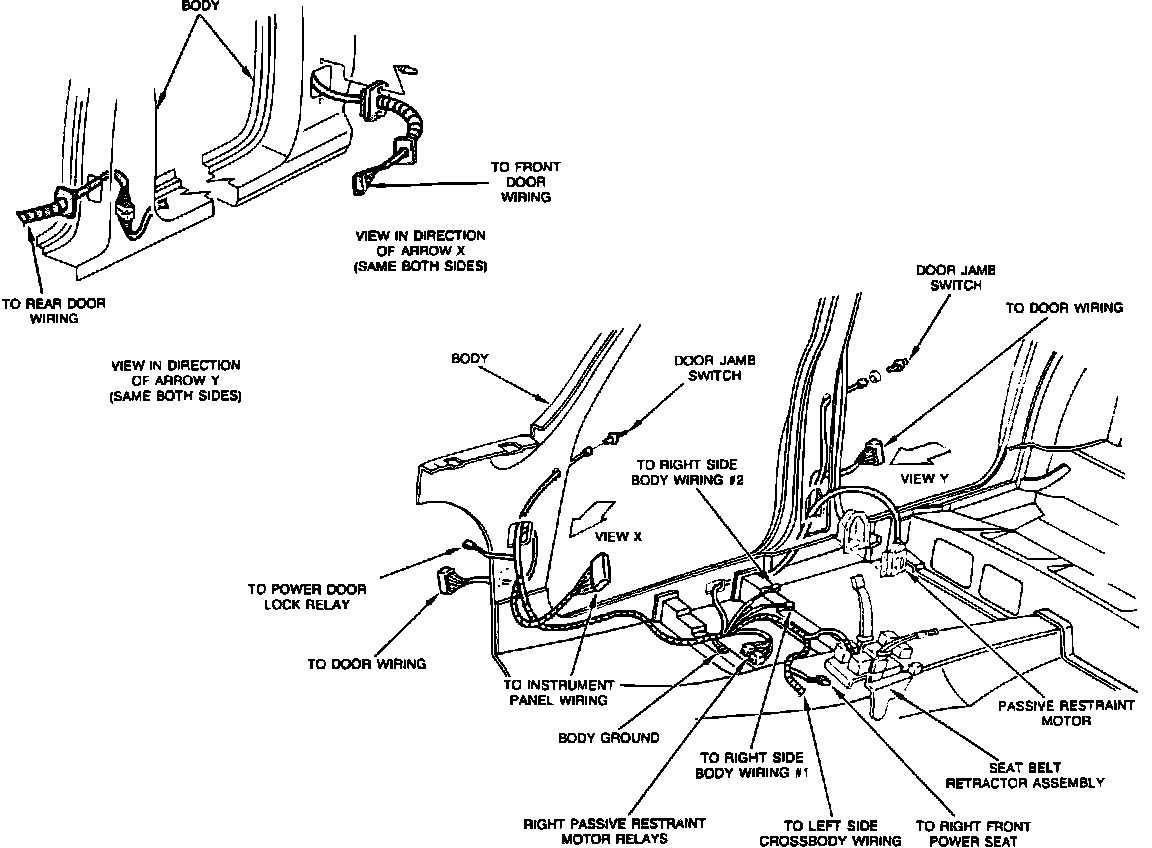

RH Side Body Wiring & Component Locations:
Under Passenger Seat
