Front Crossbody

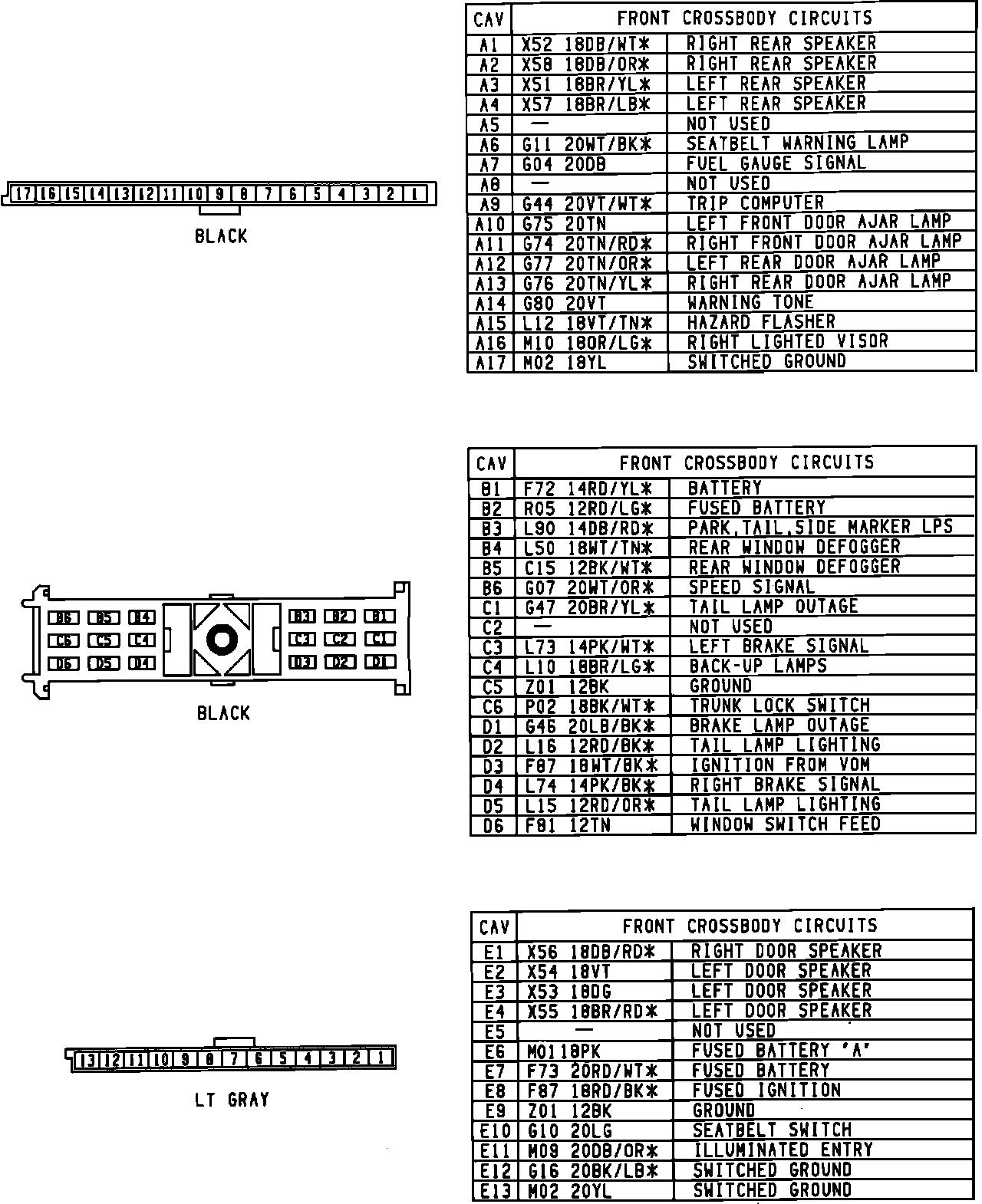

Instrument Panel To Front Crossbody Connectors:

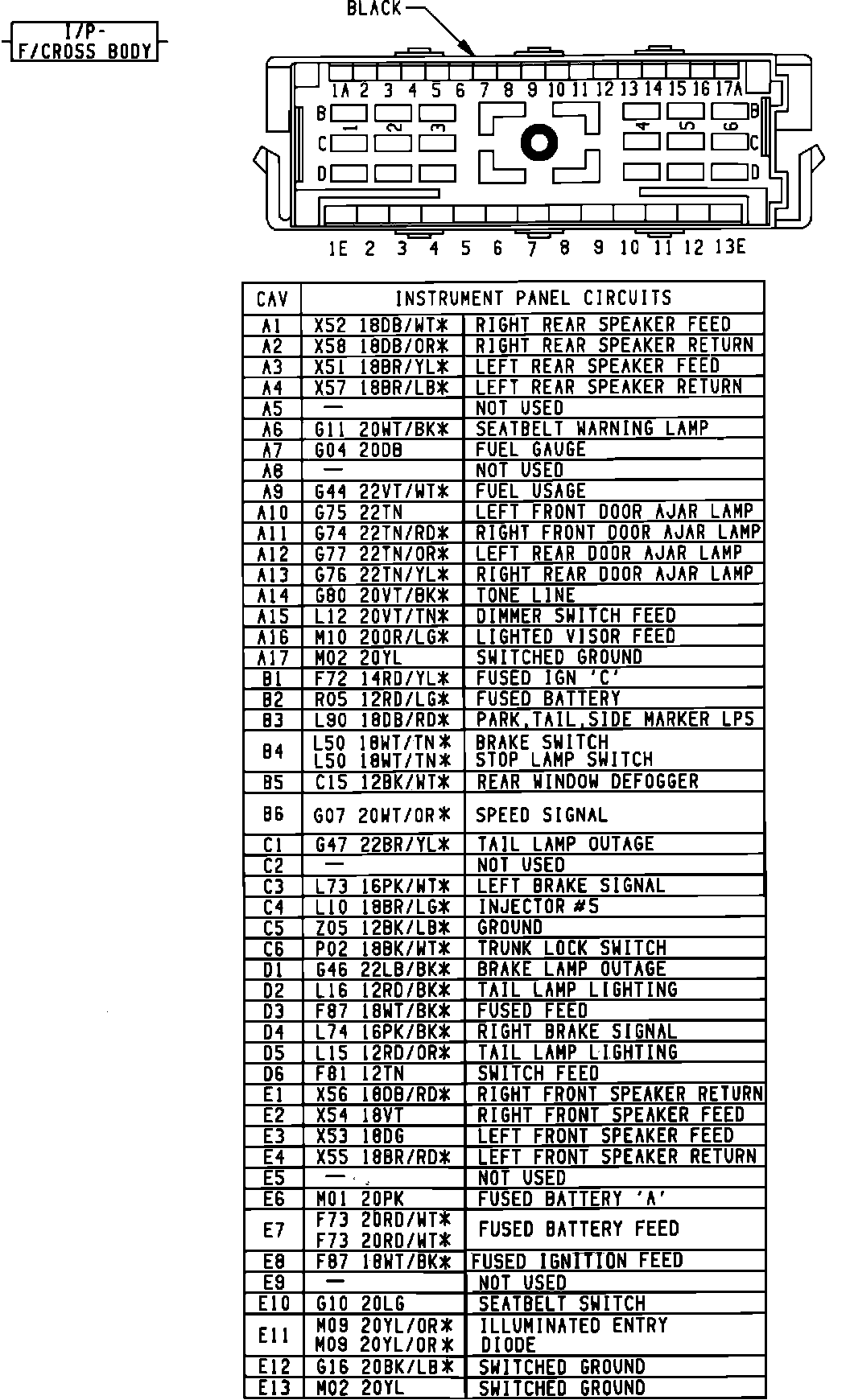

Instrument Panel To Front Crossbody Connectors:
