Eagle
>>
1990
>>
Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Diagrams
>>
Instrument Cluster
Instrument Cluster

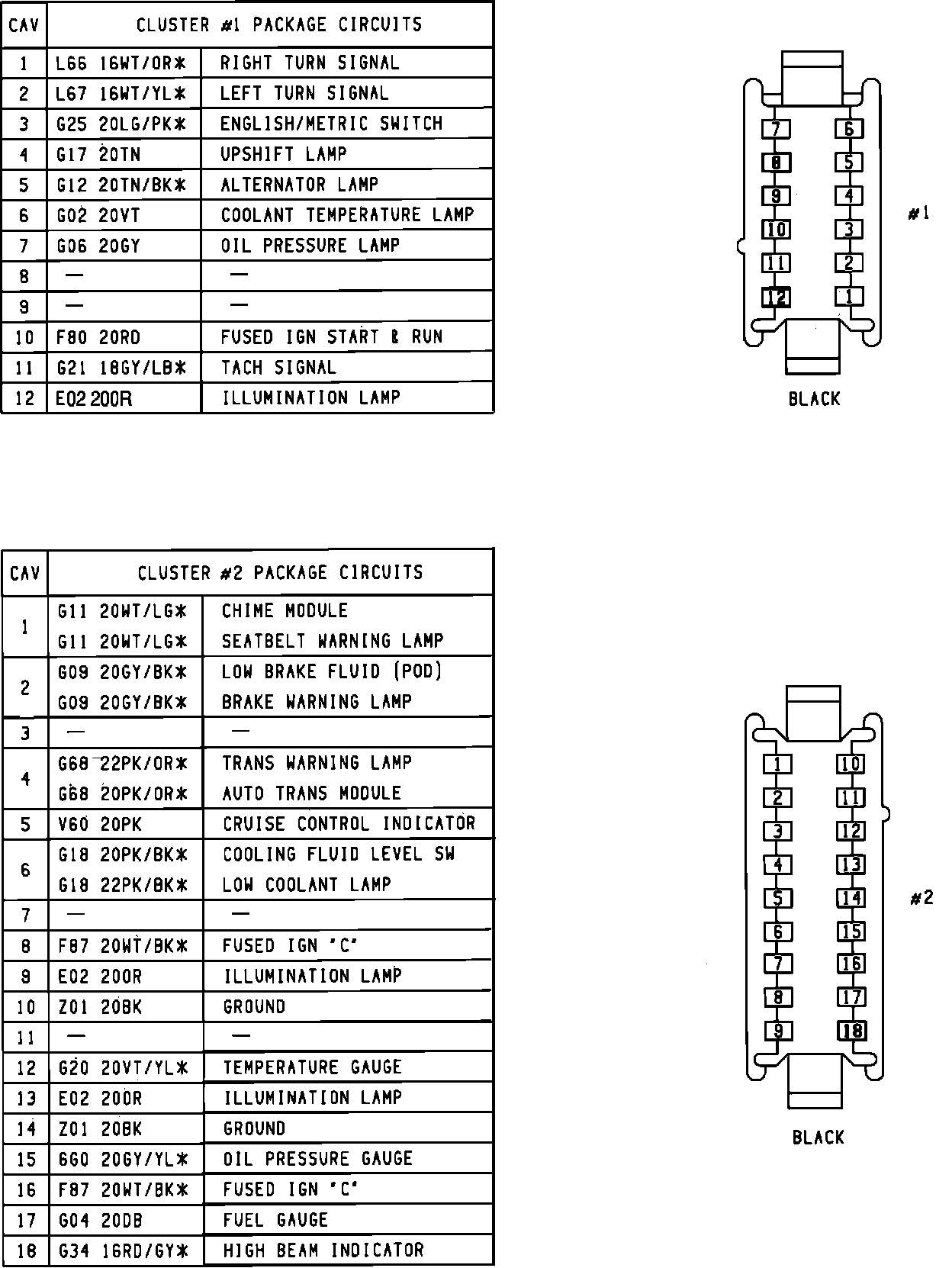

Cluster Connector:
