Lamp Outage Module - Manual Revision

No.
08-52-90

P-606

(C08-04-0)

Date
March 12, 1990

Index
ELECTRICAL

Subject
Service Manual Revision - Lamp Outage Module

Models
1990 BB Body

BODY CODE LEGEND BE - Premier

SERVICE MANUAL REVISION

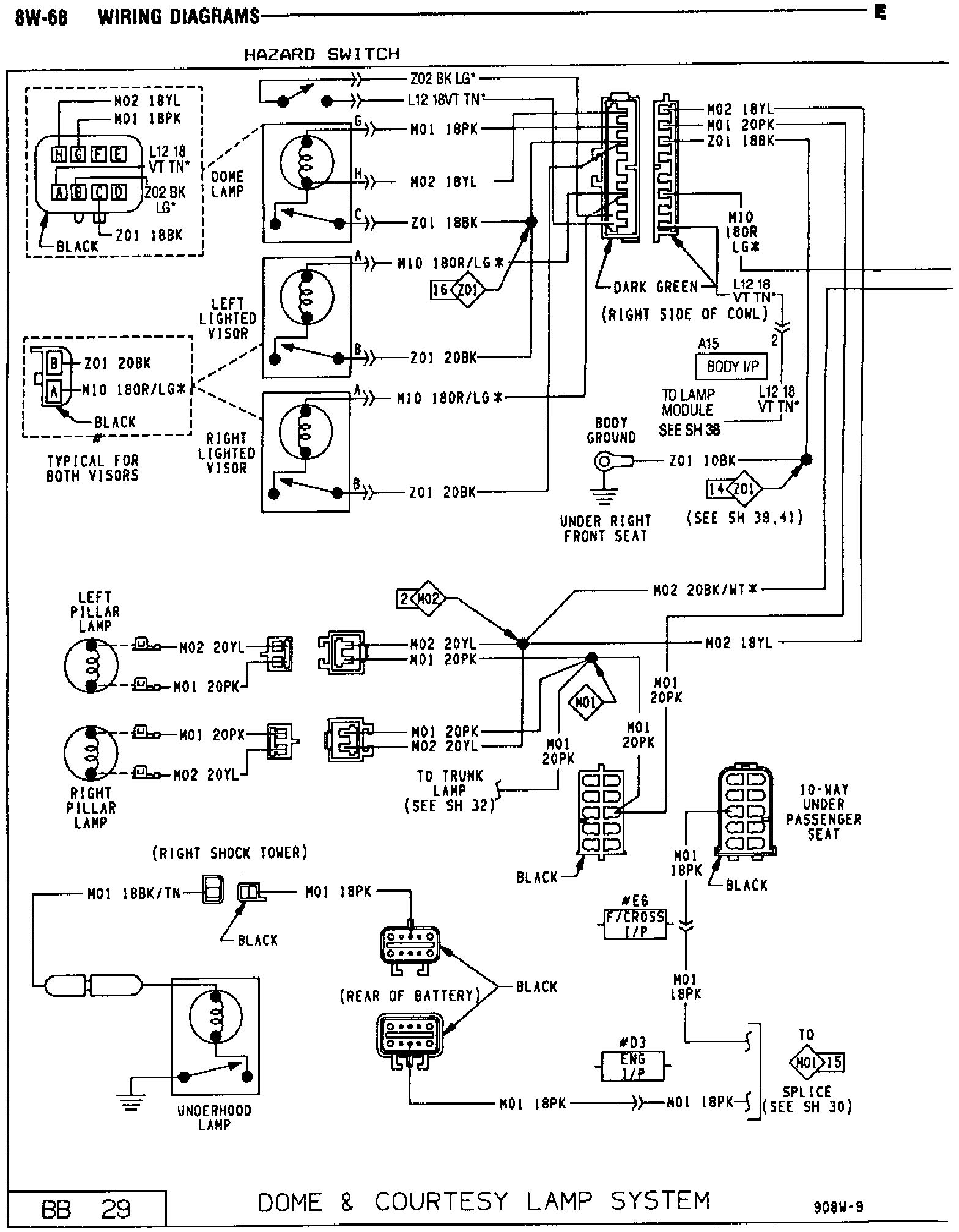

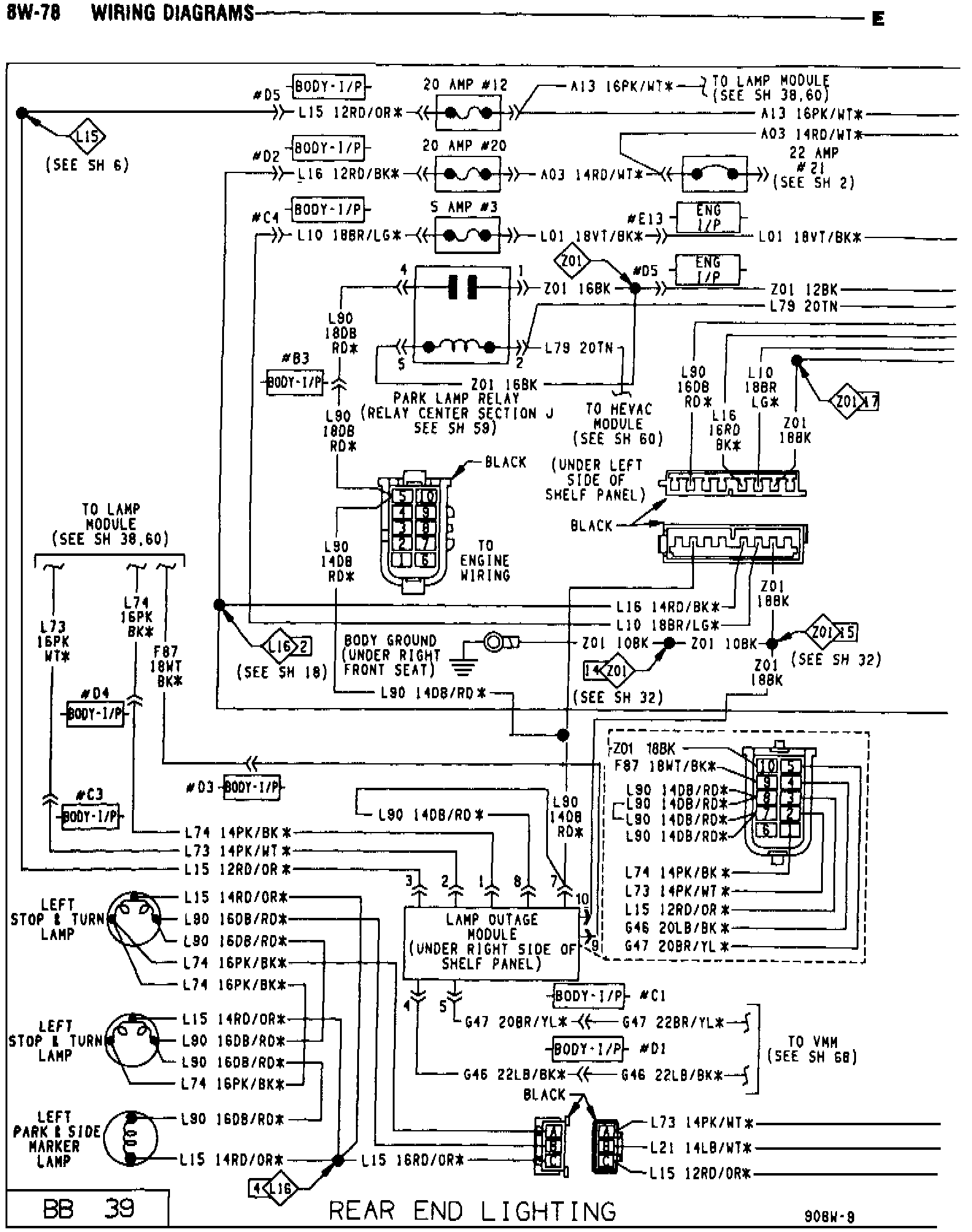

The dome, courtesy and rear end lighting wiring diagrams on 8W-68 and 8W-78 in the 1990 Premier/Monaco Service Manual Publication # 81-270-0140 have been revised.








Please insert the revised pages into the 1990 Premier/Monaco Service Manual.

POLICY: Information only
