Lamp Outage Module - Manual Revisions

Models:
1990
EB Body

Subject:
Service Manual
Revision - Lamp
Outage Module

Index:
ELECTRICAL

Date:
March 12, 1990

No.:
08-04-90
P-605

(C08-04-0)

BODY CODE LEGEND:
BB - Monaco


SERVICE MANUAL REVISION

]��:




�1�:

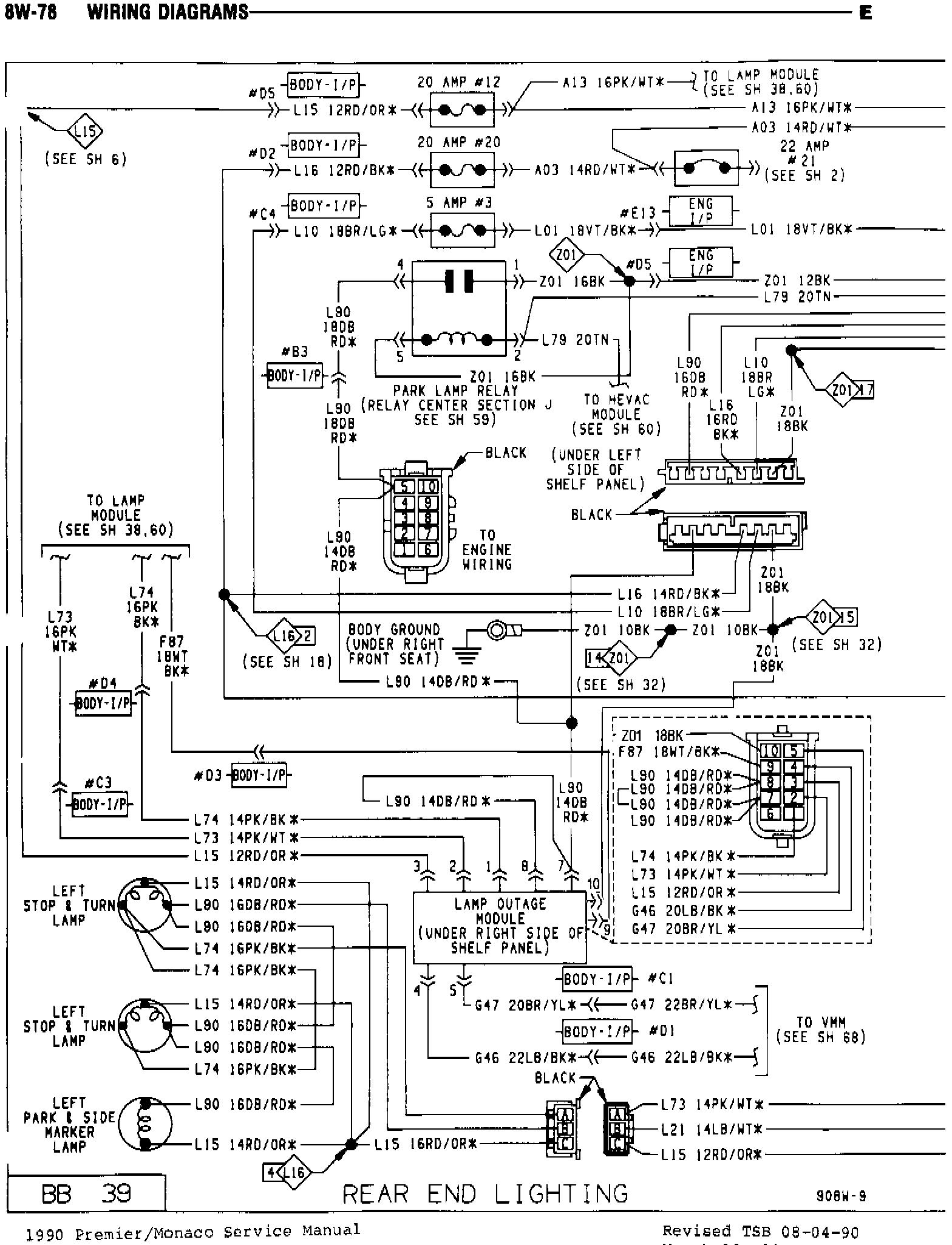

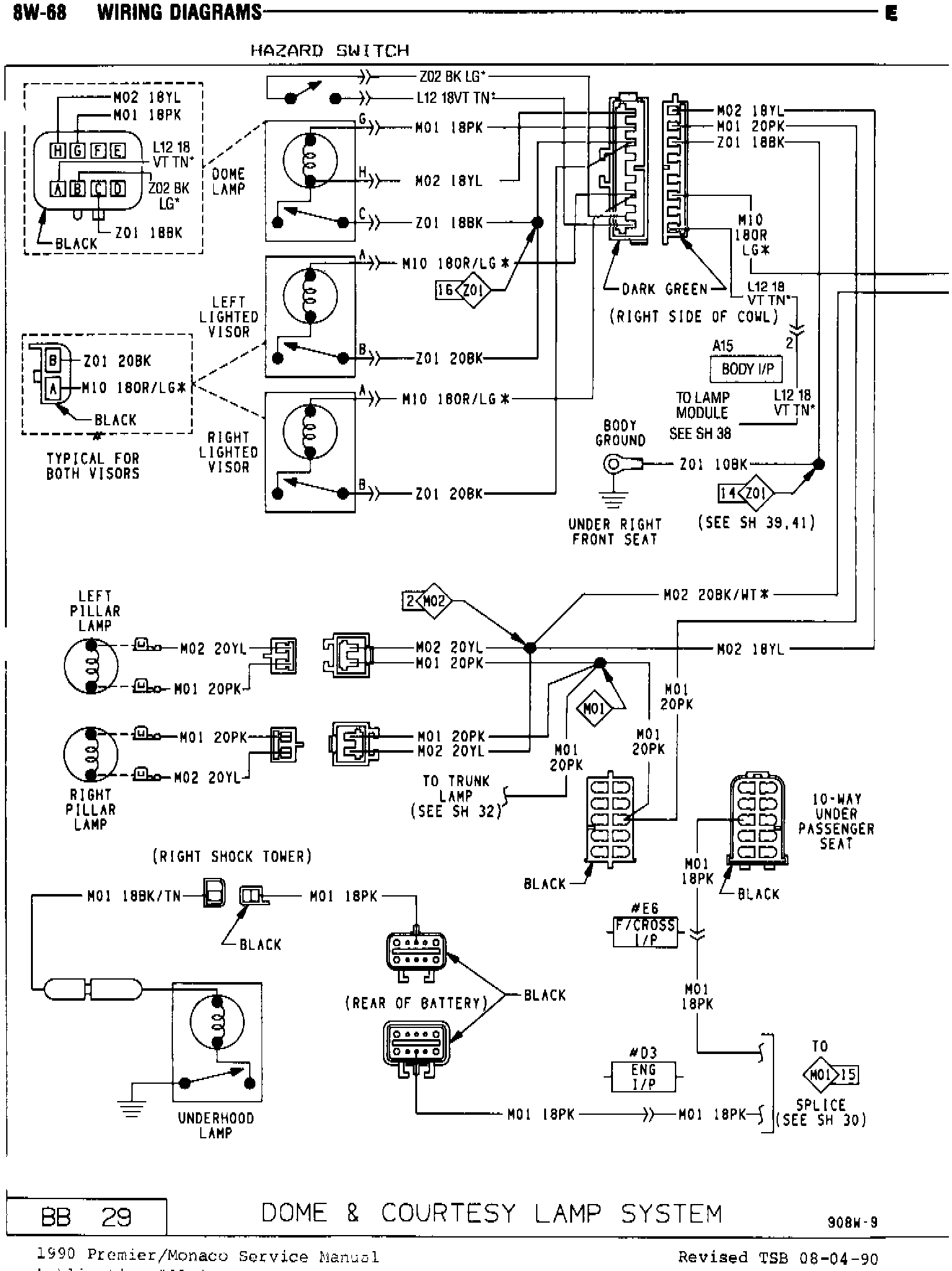

The dome, courtesy and rear end lighting wiring diagrams on 8W-68 and BW-78 in the 1990 Premier/Monaco Service Manual Publication # 81-270-0140 have been revised.

Please insert the revised pages into the 1990 Premier/Monaco Service Manual.



POLICY: Information only
