Symptom Related Diagnostic Procedures

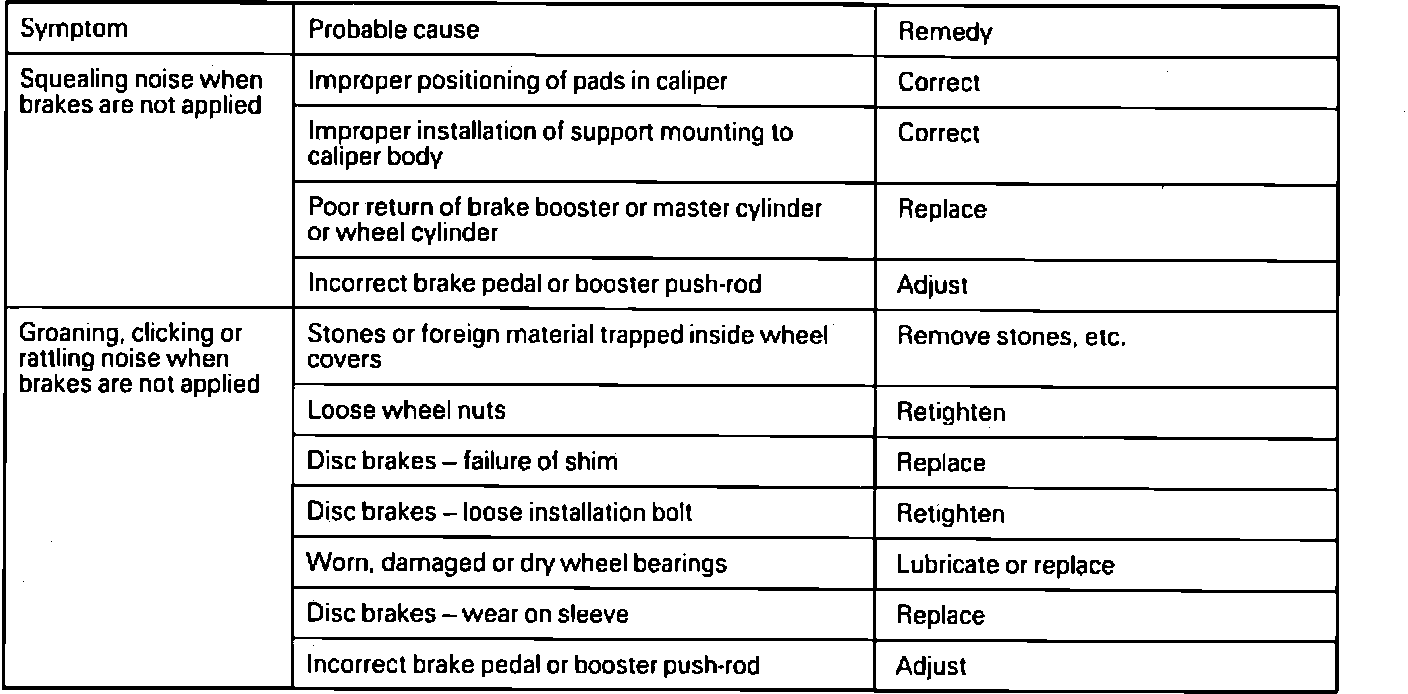

Fig. 1 Brake System Troubleshooting:

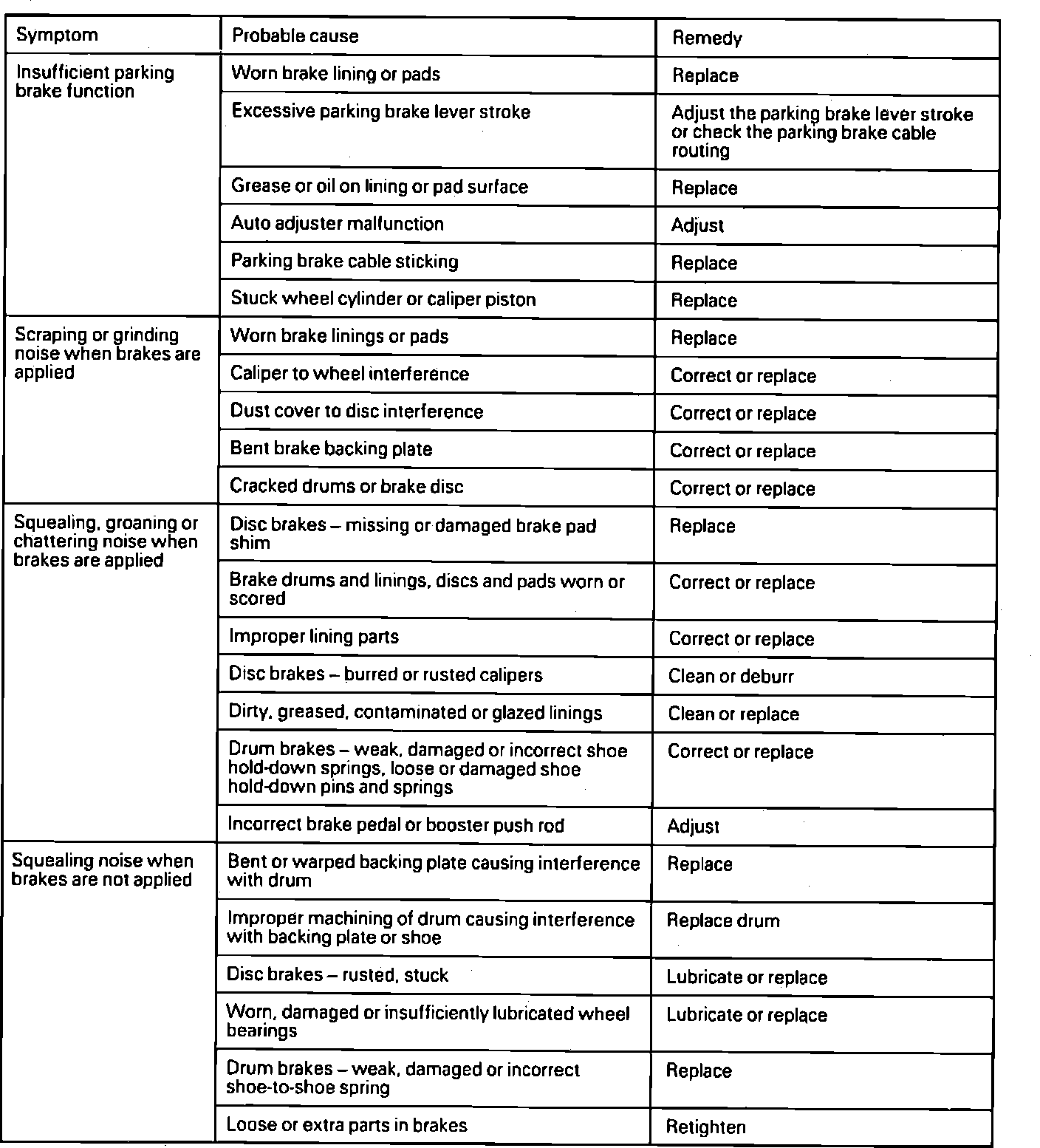

Fig. 1 Brake System Troubleshooting:



Fig. 1 Brake System Troubleshooting:
