Home >> Eagle >> 1990 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> Less Anti-Theft Alarm

Less Anti-Theft Alarm

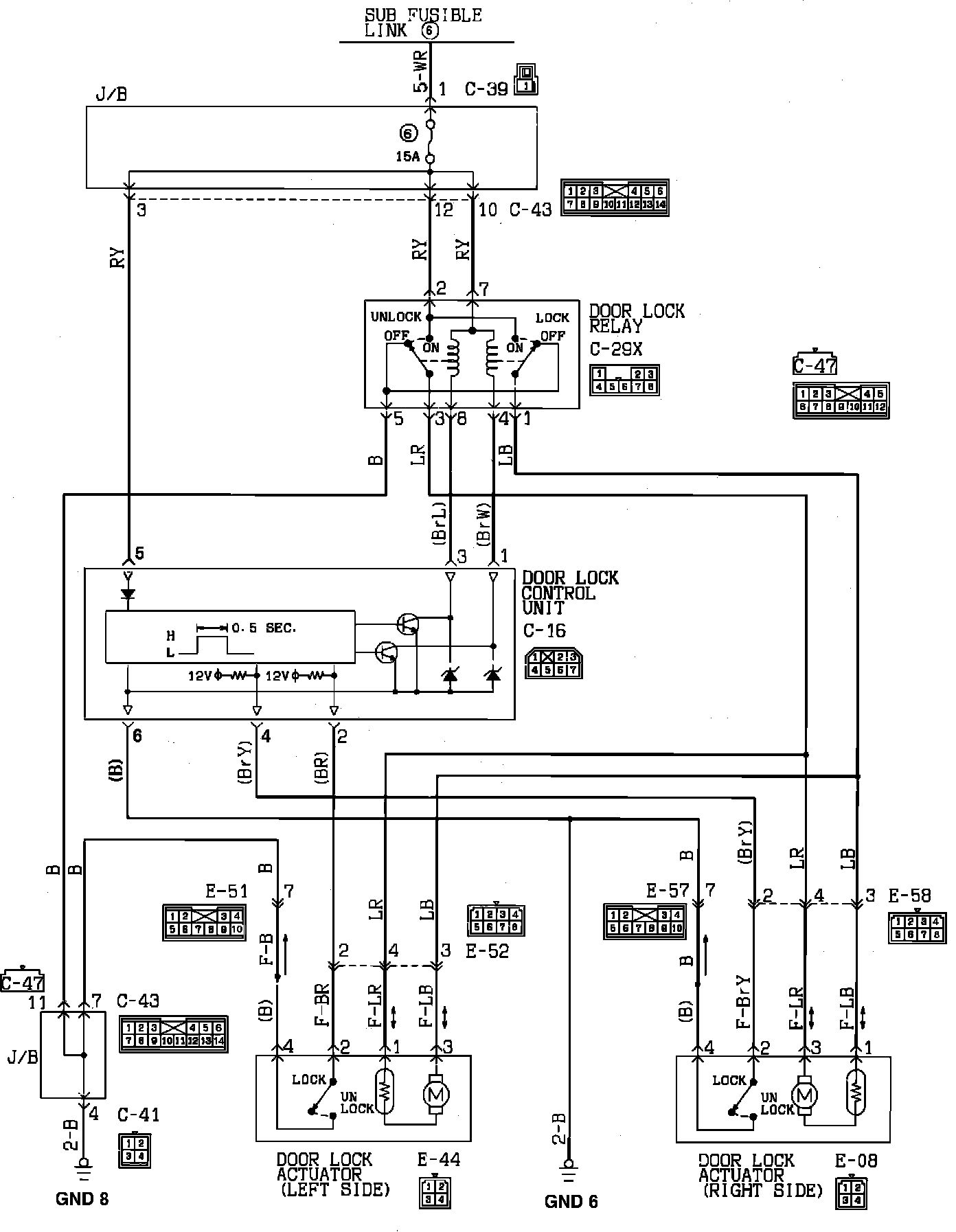

Power Door Lock Less Anti-Theft Alarm:
