Air Conditioning System

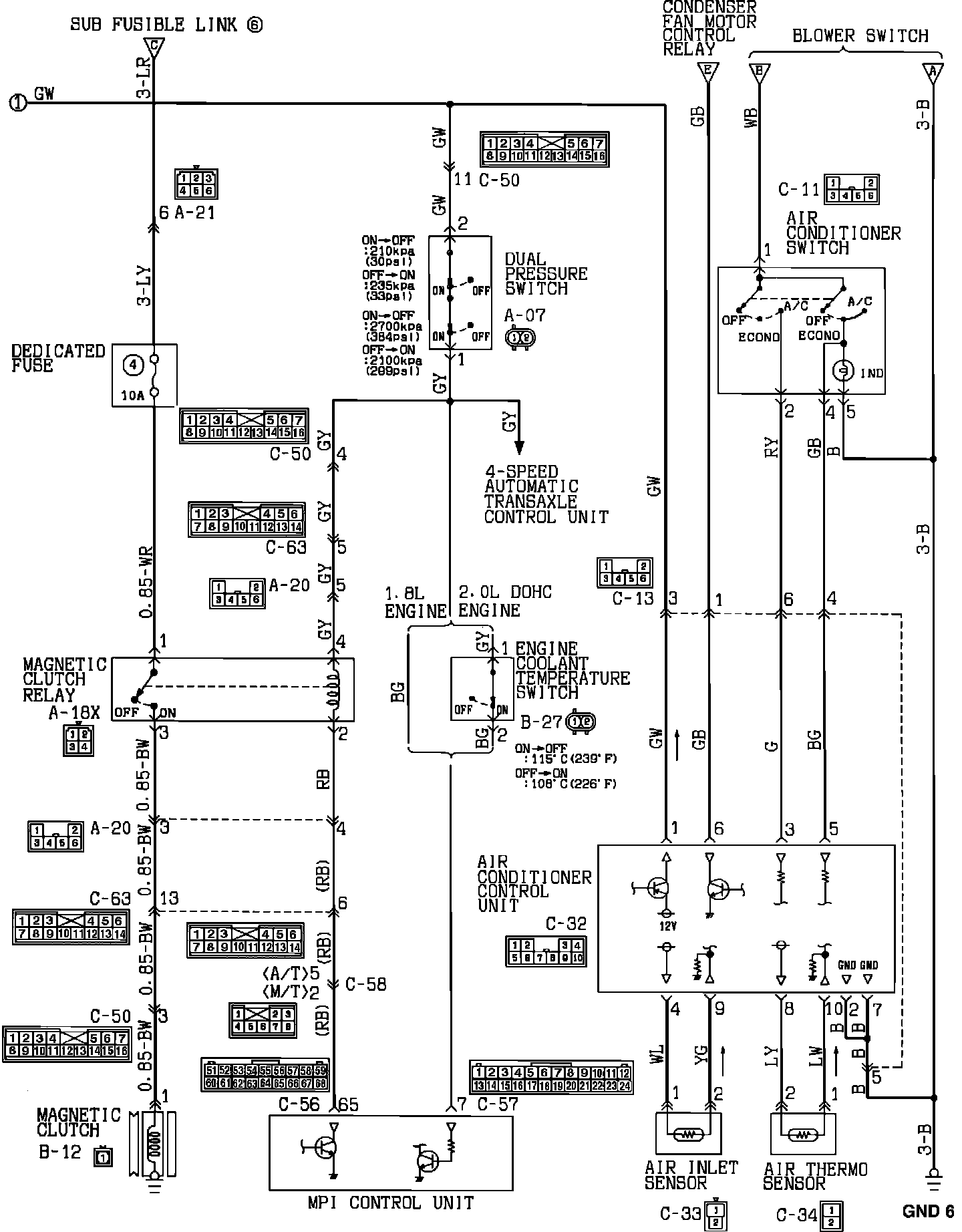

Air Conditioning (Part 1 of 3):

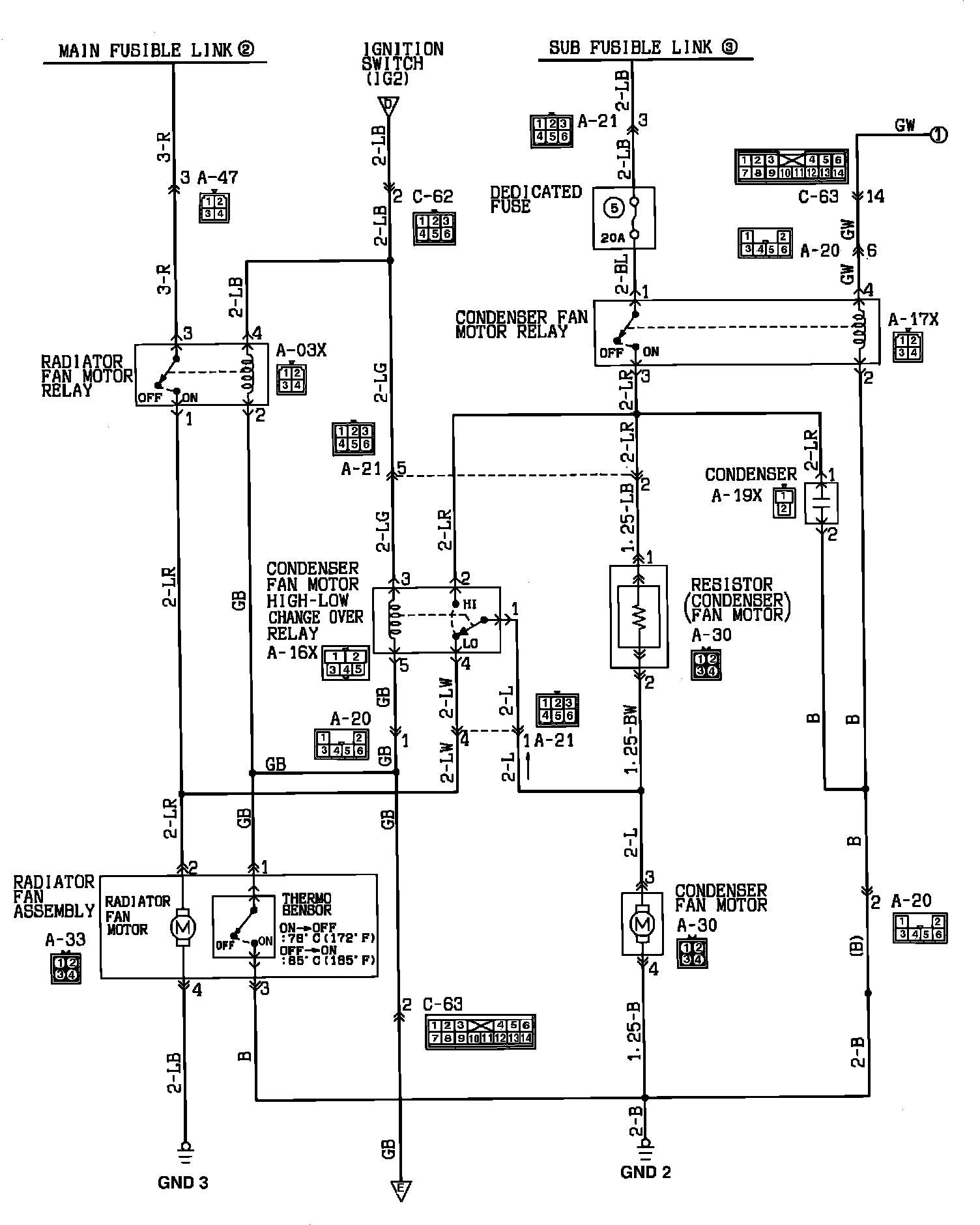

Air Conditioning (Part 2 of 3):
Air Conditioning (Part 3 of 3):
