Home >> Eagle >> 1990 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals

Turn Signals

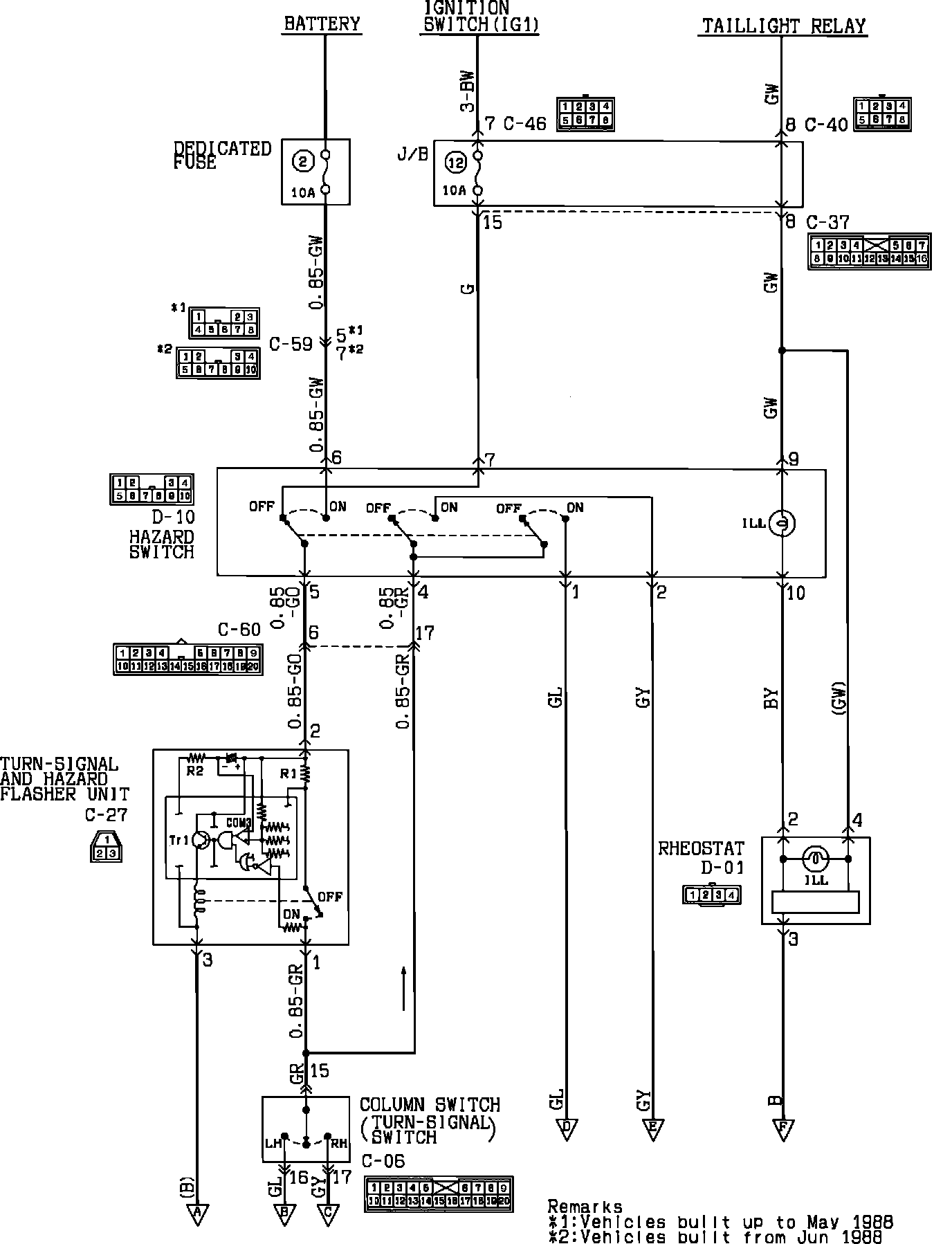

Turn Signal & Hazard Flashers - Part 1:

Turn Signal & Hazard Flashers - Part 2:
