Home
>>
Eagle
>>
1990
>>
Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Management
Engine Management

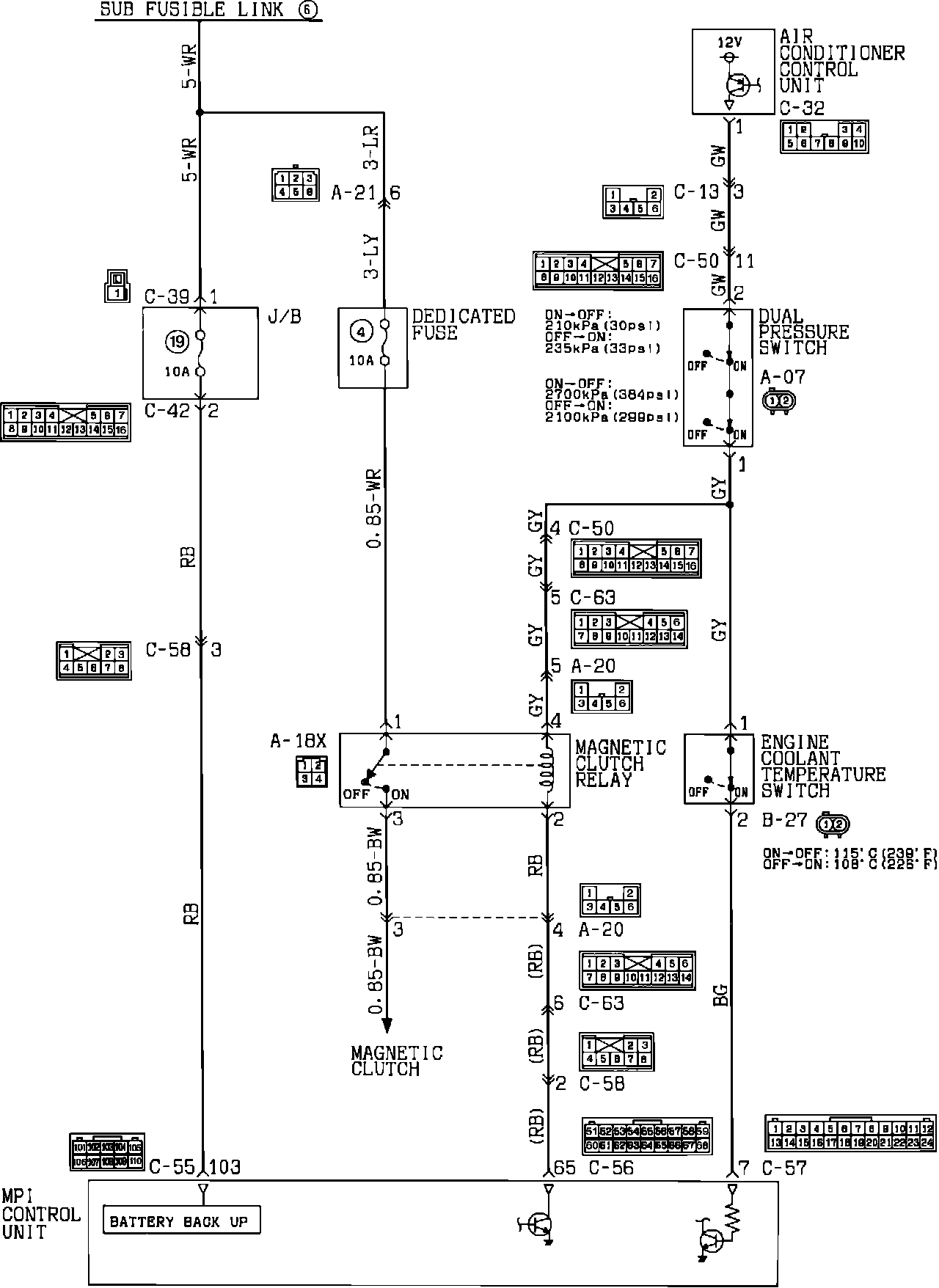

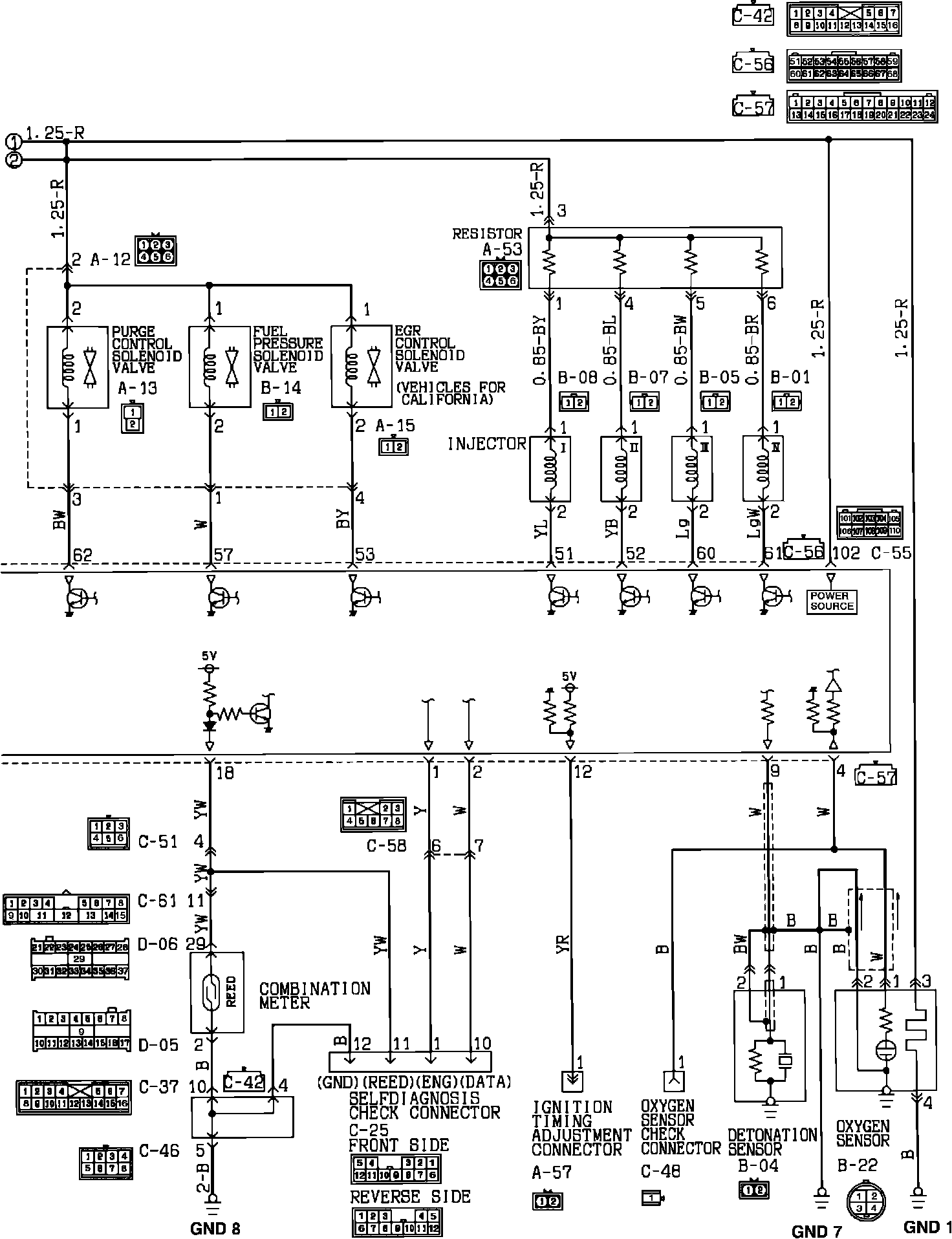

Fuel Injection - W/Turbo:
Fuel Injection - W/Turbo:
Fuel Injection - W/Turbo:
Fuel Injection - W/Turbo:
Fuel Injection - W/Turbo:
