Eagle
>>
1990
>>
Talon FWD L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
California/Canada
California/Canada

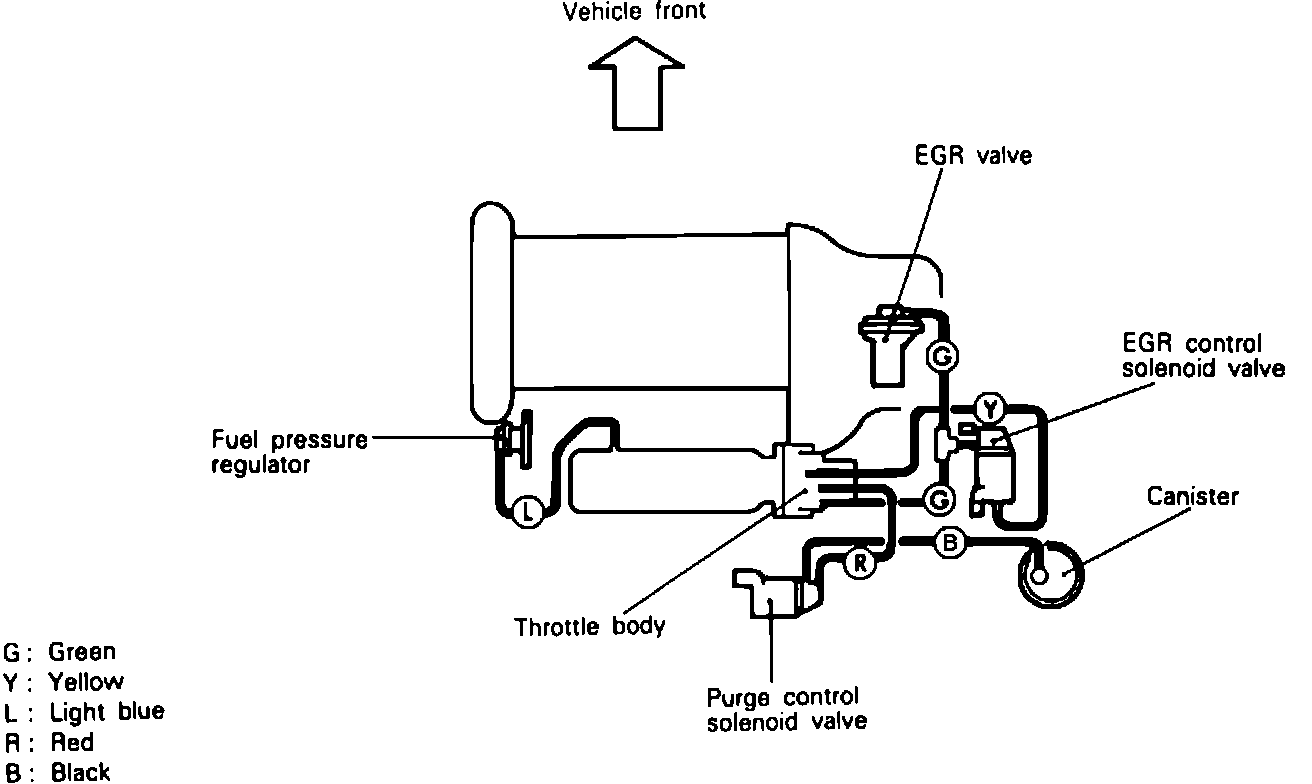

Emissions Control Vacuum Routing For Non-Turbo California Vehicles:
