Home >> Eagle >> 1990 >> Talon FWD L4-1997cc 2.0L DOHC >> Repair and Diagnosis >> Technical Service Bulletins >> All Technical Service Bulletins >> R-12 to R-134A A/C Adaptation Procedure >> R-134A Performance Chart (1 of 2)

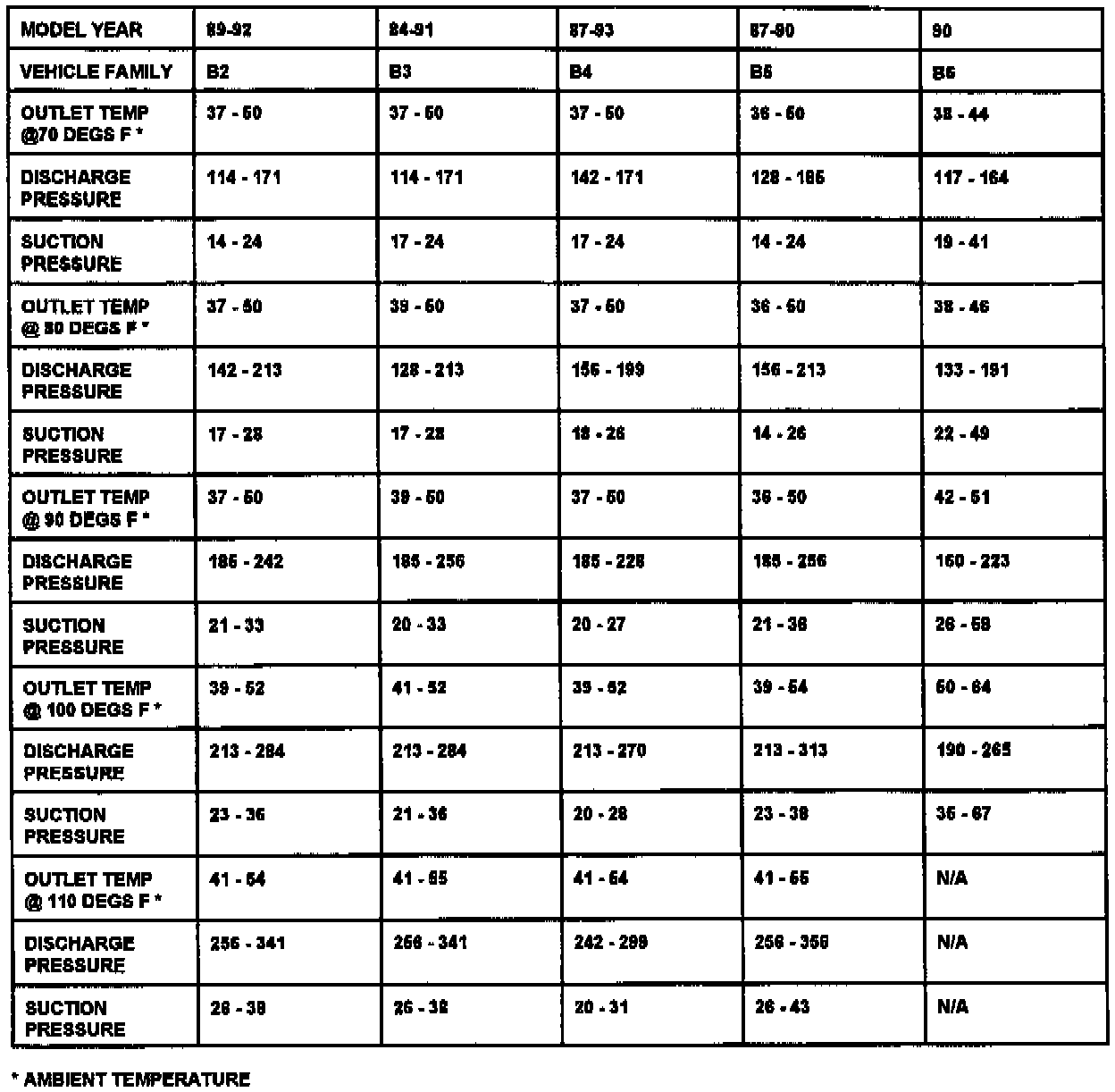

R-134A Performance Chart (1 of 2)
