ABS Main Relay

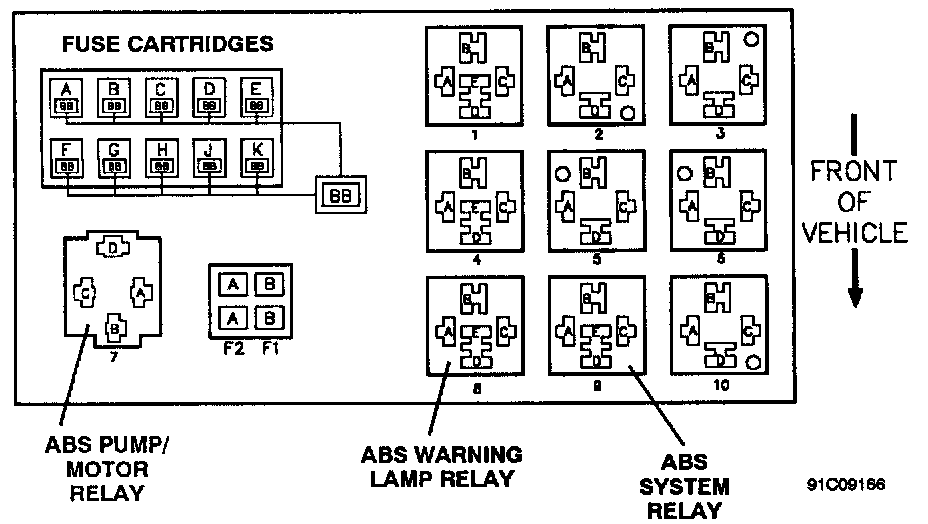

POWER DISTRIBUTION CENTER (PDC)

Fuse Cartridges

CAV CIRCUIT.......... FUNCTION
F2...................... ABS System Cartridge - Power
BB...................... Bus Bar
G....................... ABS Pump/Motor Cartridge - Power

ABS Pump/Motor Relay

CAV CIRCUIT.......... FUNCTION
A..... A21D DB.......... Ignition Start/Run
B..... A10 RD/DG........ Pump/Motor Relay Power

A10A RD/DG....... Pump/Motor Relay (Relay C)
C..... B21 GY........... Pump Switch - Dual Function Pressure Switch (DFPS)
D..... B10 BR/WT........ Pump/Motor Feed

ABS Warning Lamp Relay

CAV CIRCUIT.......... FUNCTION
A..... B47B RD/LB....... Module Feed
B..... Z1BG BK.......... Ground
C..... Z1BC BK.......... Ground
Z1BG BK.......... Ground
D....................... Not Used
E..... G19 LG/OR........ Antilock Warning Lamp

ABS System Relay

CAV CIRCUIT FUNCTION
A..... B57 BR/BK....... System Relay Coil Feed
B..... F101 RD/LG...... System Relay (Relay Contact)
C..... Z1BB BK......... Ground
D..... B47 RD/LB....... Module Feed
E...................... Not Used
