Primary Pressure Transducer Connector

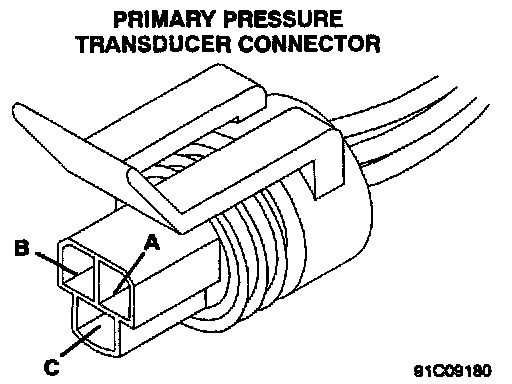

PRIMARY PRESSURE TRANSDUCER CONNECTOR
CAV CIRCUIT.......... FUNCTION
A..... B10 RD/BK........ Transducer Ground
B..... B58 GY/LB........ Transducer +5V
C..... LG............... Transducer Return
PRIMARY PRESSURE TRANSDUCER CONNECTOR
CAV CIRCUIT.......... FUNCTION
A..... B10 RD/BK........ Transducer Ground
B..... B58 GY/LB........ Transducer +5V
C..... LG............... Transducer Return
