Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Early Production
Early Production

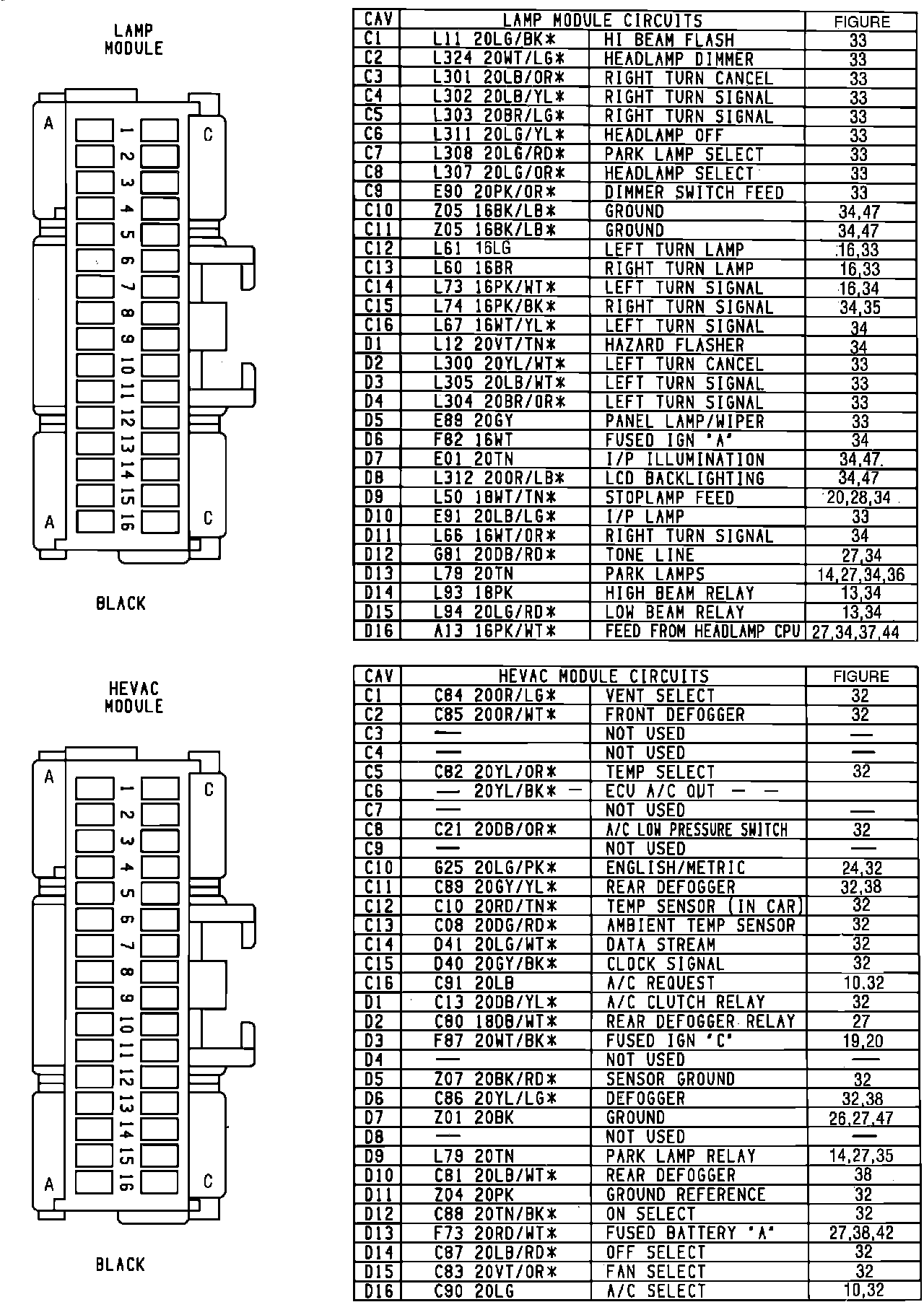

Lamp Module/Hevac Module:
