Home
>>
Eagle
>>
1991
>>
Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Fuse Block
>>

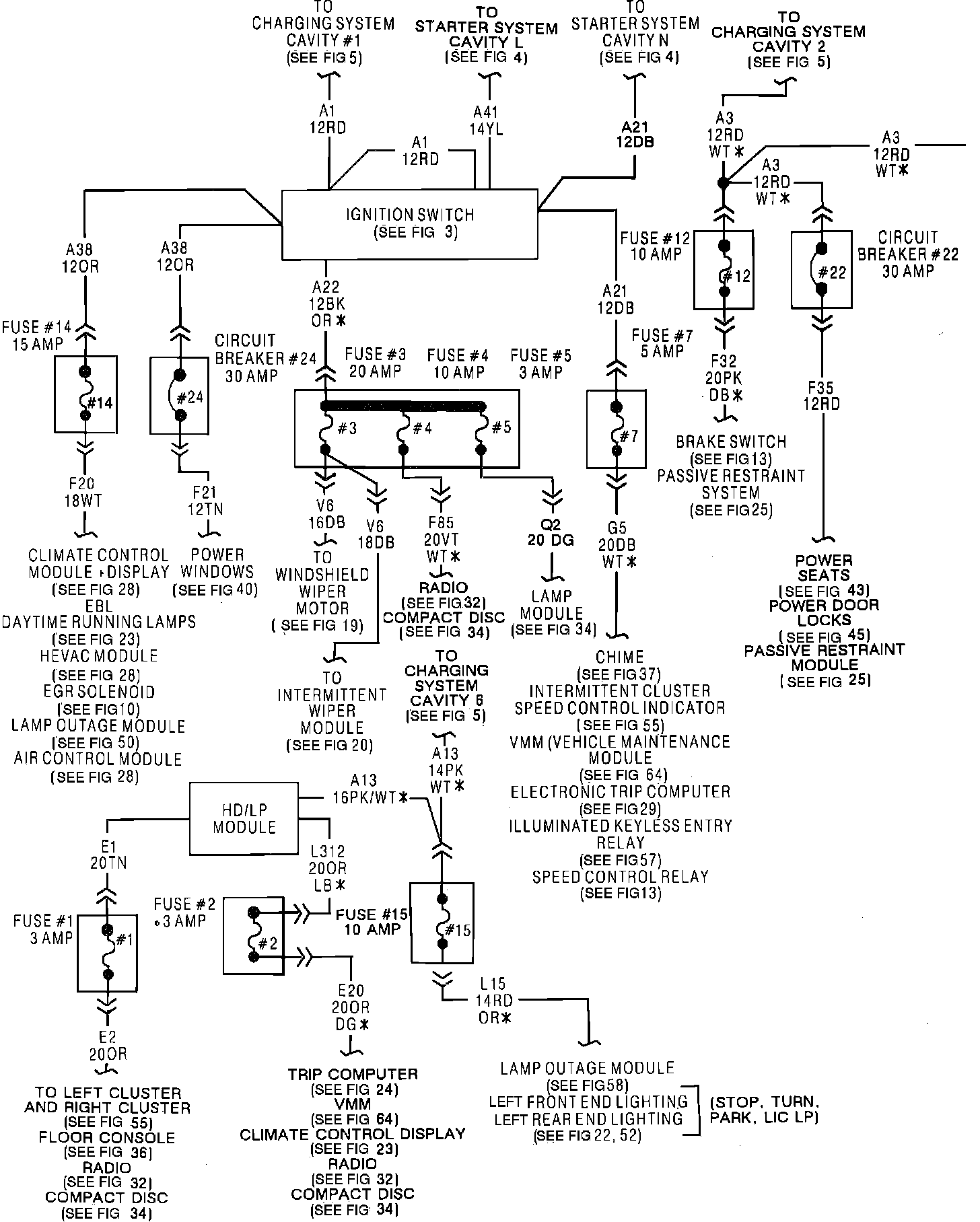

Fuse Panel Details
Fuse Panel Details
Fuse Application Chart:
Fuse Application Chart:
