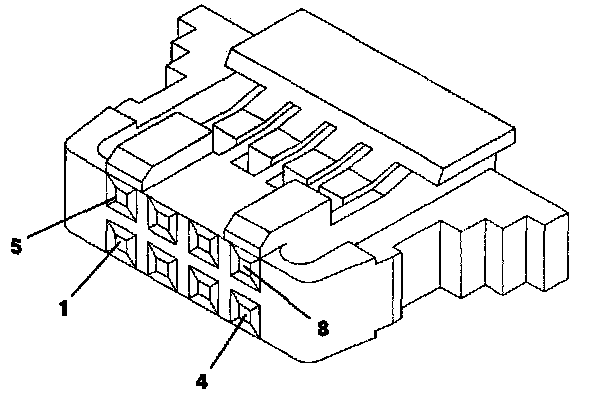

Vehicle Speed Sensor Signal Buffer

CAV CIRCUIT FUNCTION

1 K45 DB/WT Speed Sense Signal
2 G7 WT/OR Speed/Dist. Signal
3 Open
4 K86 RD/LB Speed/Dist. Sensor (-)
5 Z02 BK/LB Clean Module Ground
6 Z11 Uninsulated Ground
7 K87 RD/BK Speed/Dist. Sensor (+)
8 Z1 BK Ground
