Home >> Eagle >> 1991 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Late Production >> Less Compact Disc

Less Compact Disc

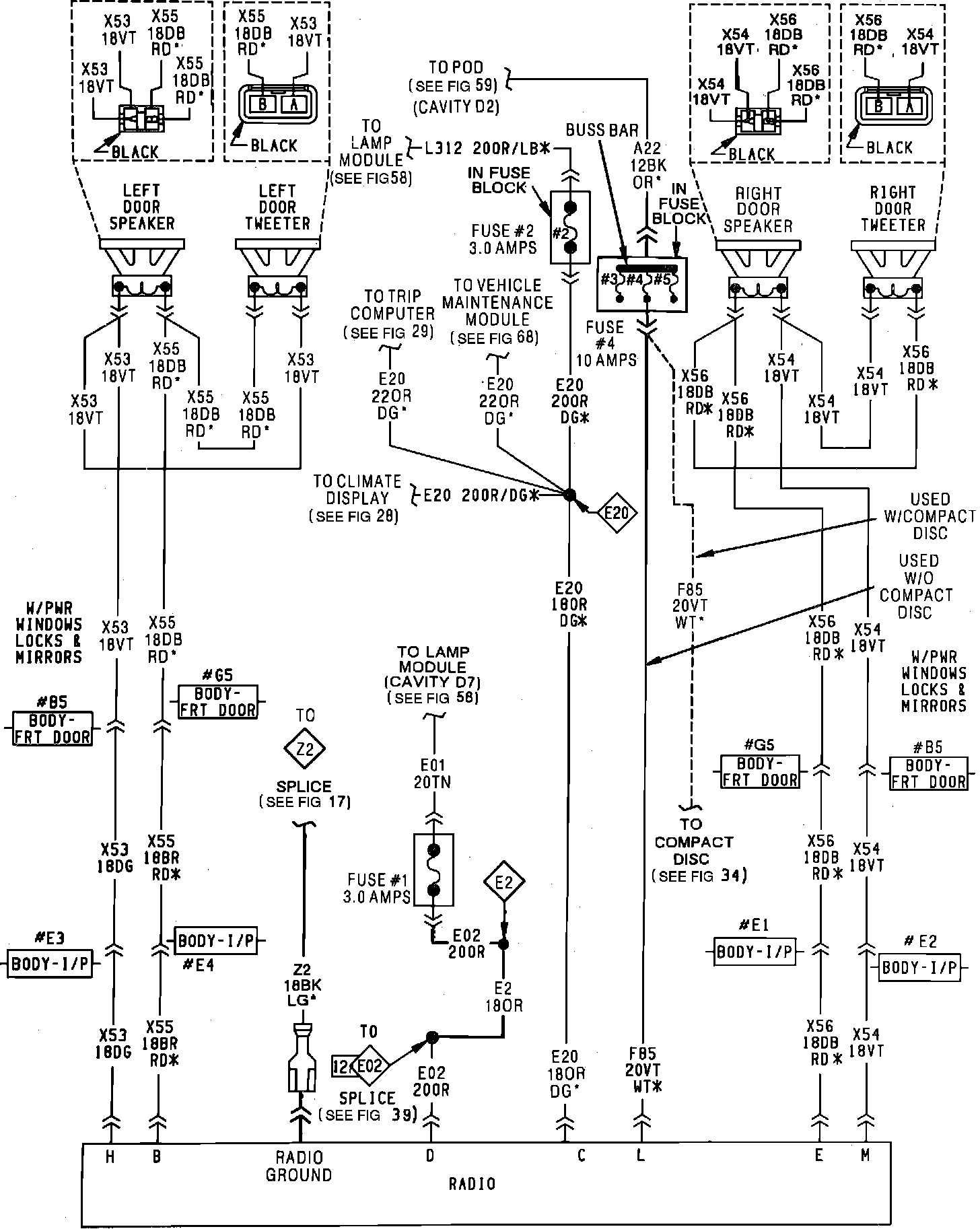

Radio (Less Compact Disc):



Radio (Less Compact Disc):
