Home >> Eagle >> 1991 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Shift Indicator - A/T >> Late Production

Late Production

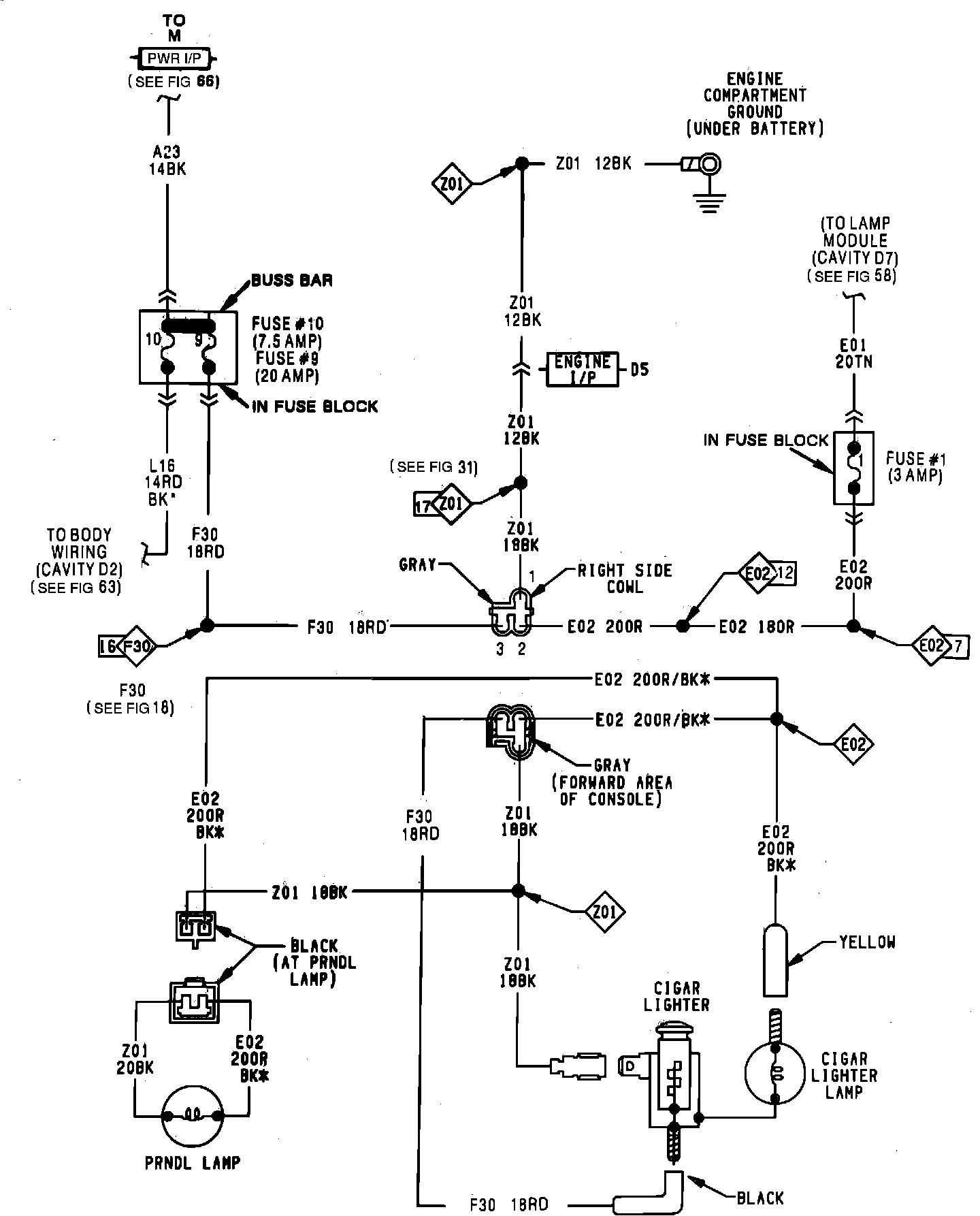

Cigar Lighter And PRNDL Lamp:
