Eagle
>>
1991
>>
Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

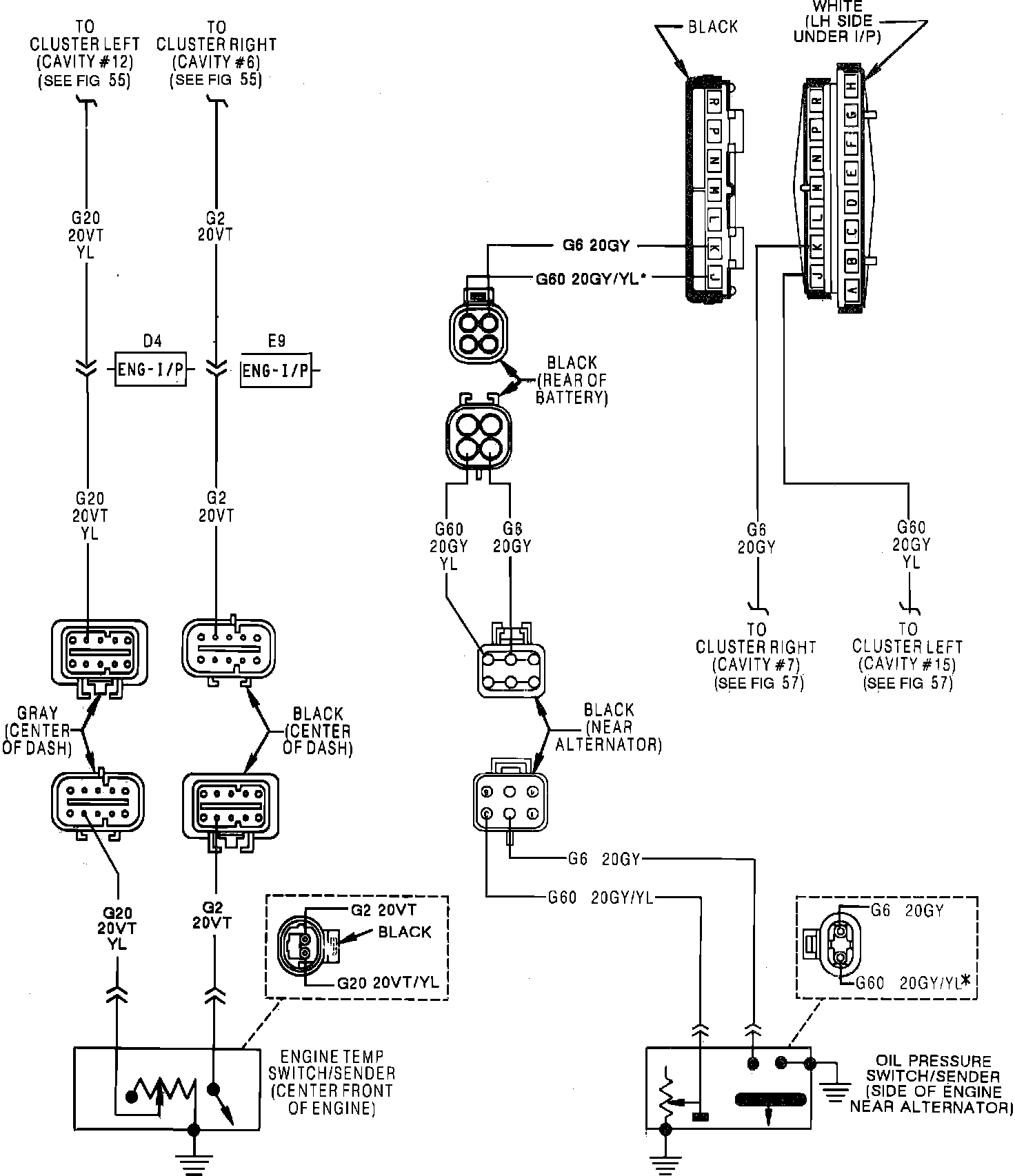

Temperature Sensor (Gauge)
Temperature Sensor (Gauge)
Oil Pressure And Temperature Warning System (Late Production):
