Instrument Panel to Front Crossbody Interconnect

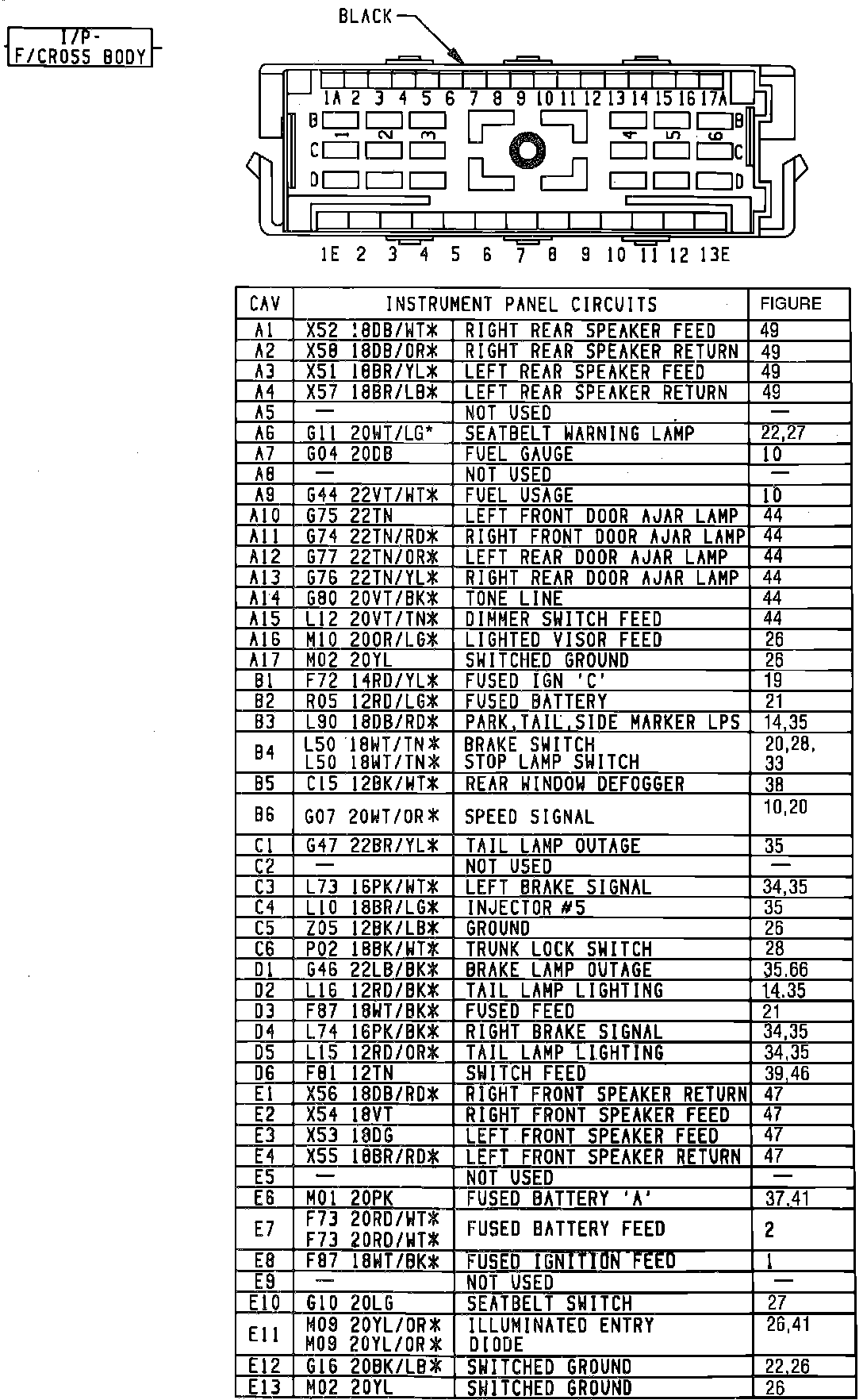

I/P To Front Crossbody Interconnector:

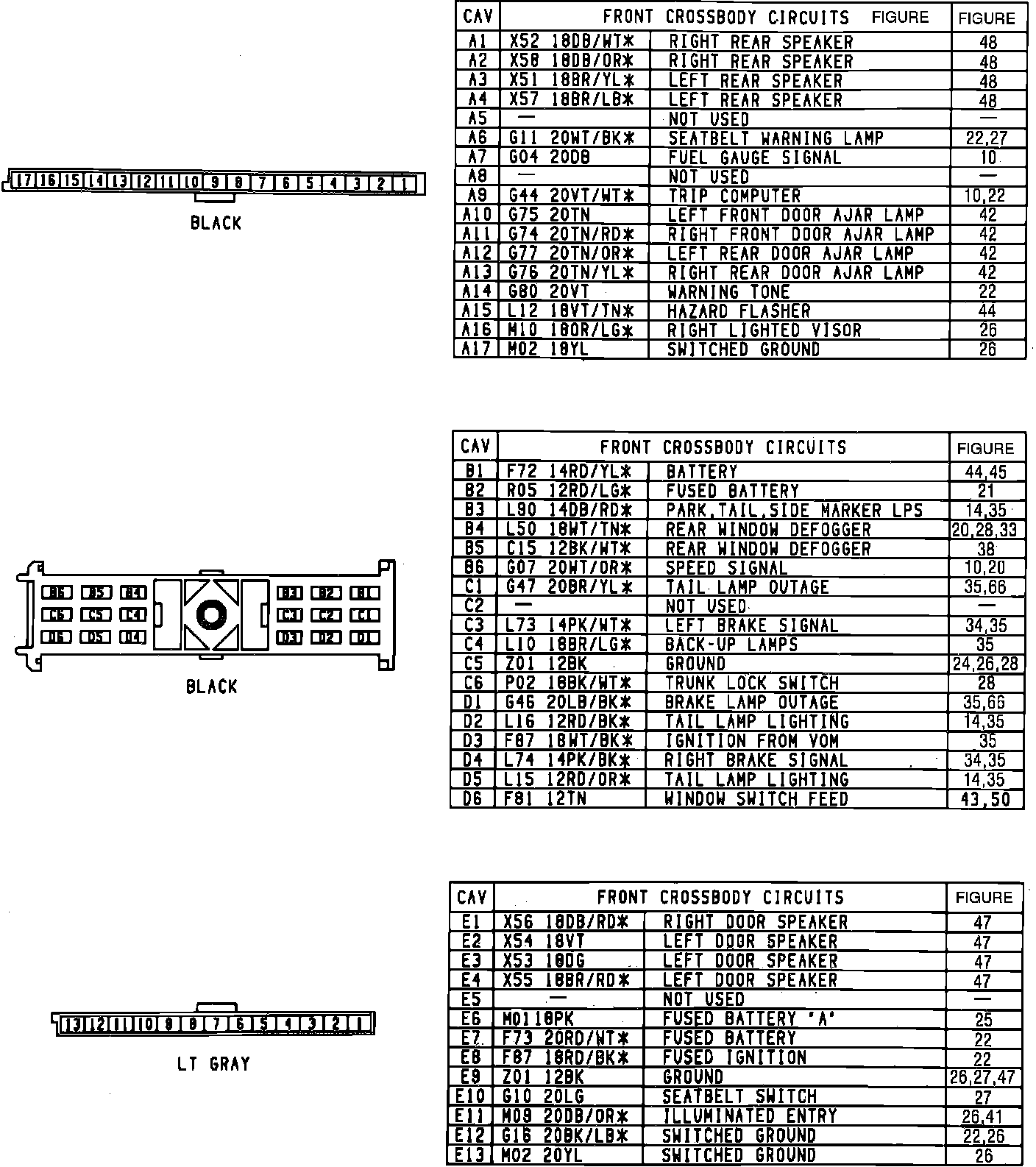

I/P To Front Crossbody Interconnector:
