Power Circuit to Instrument Panel Interconnect
Power Circuit to Instrument Panel Interconnect

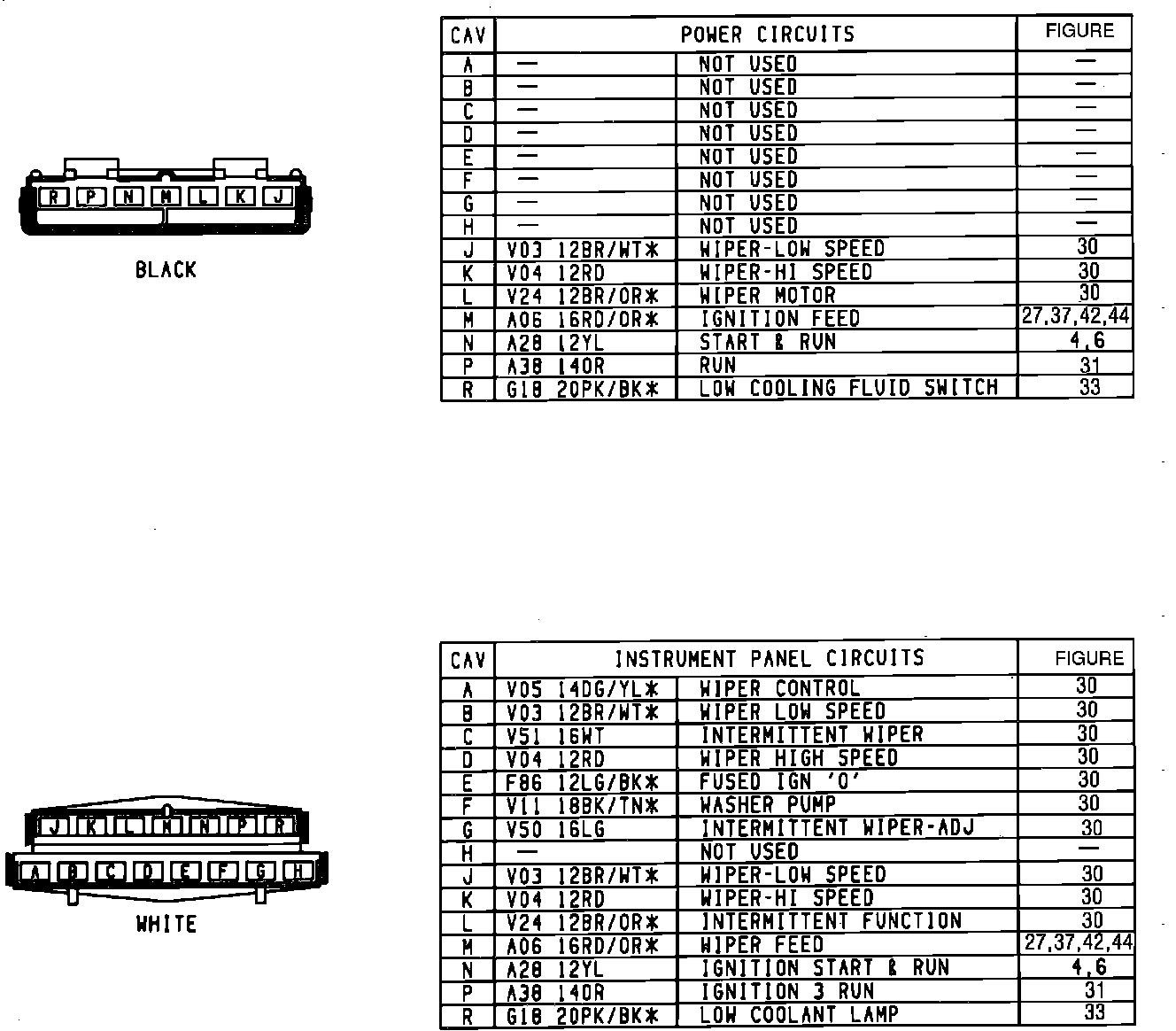

Power Circuit To I/P Interconnect:
