Electrical Diagrams

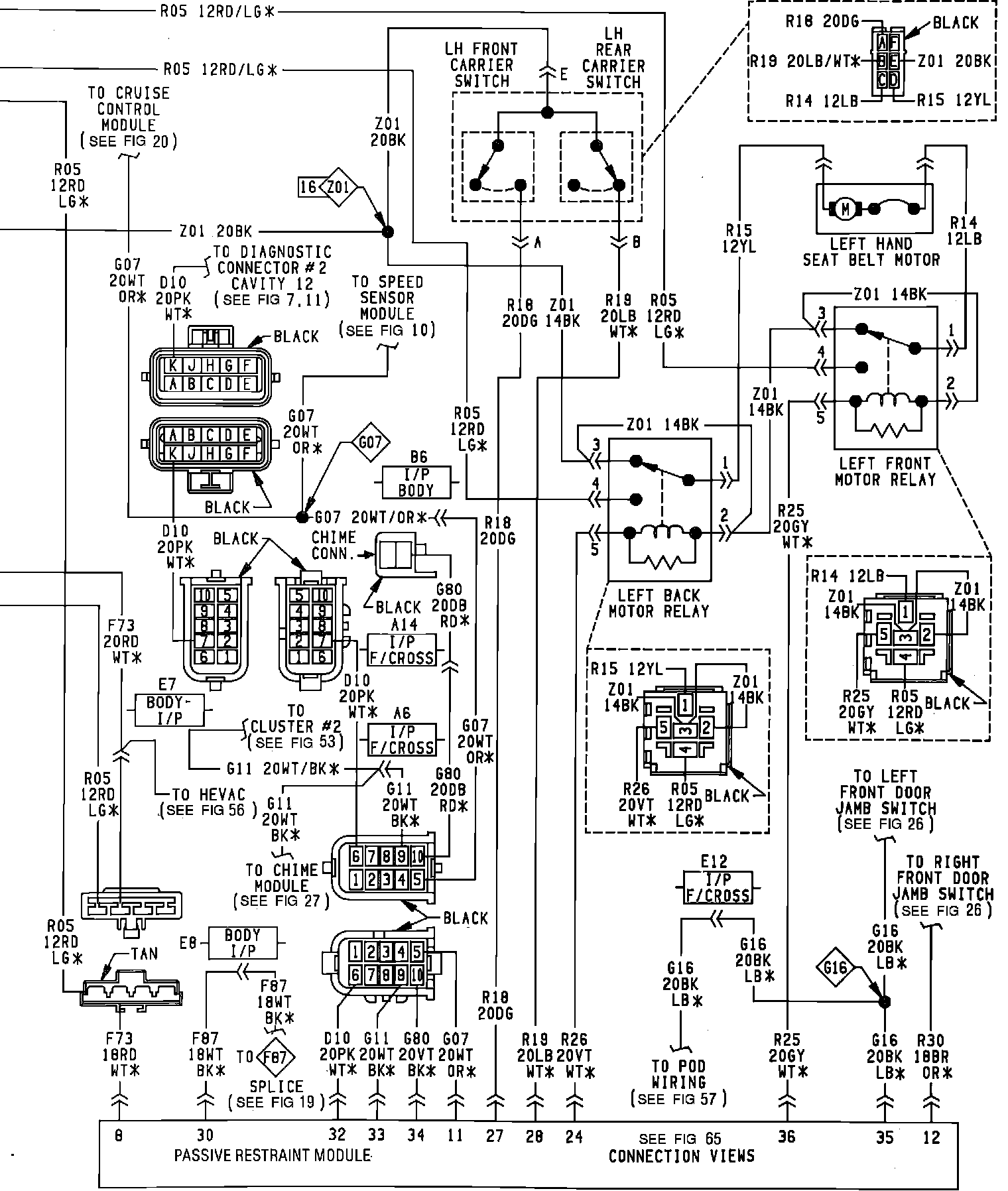

Fig. 3 Automatic Seat Belt Wiring Circuit. Inputs (Part 1 Of 2):

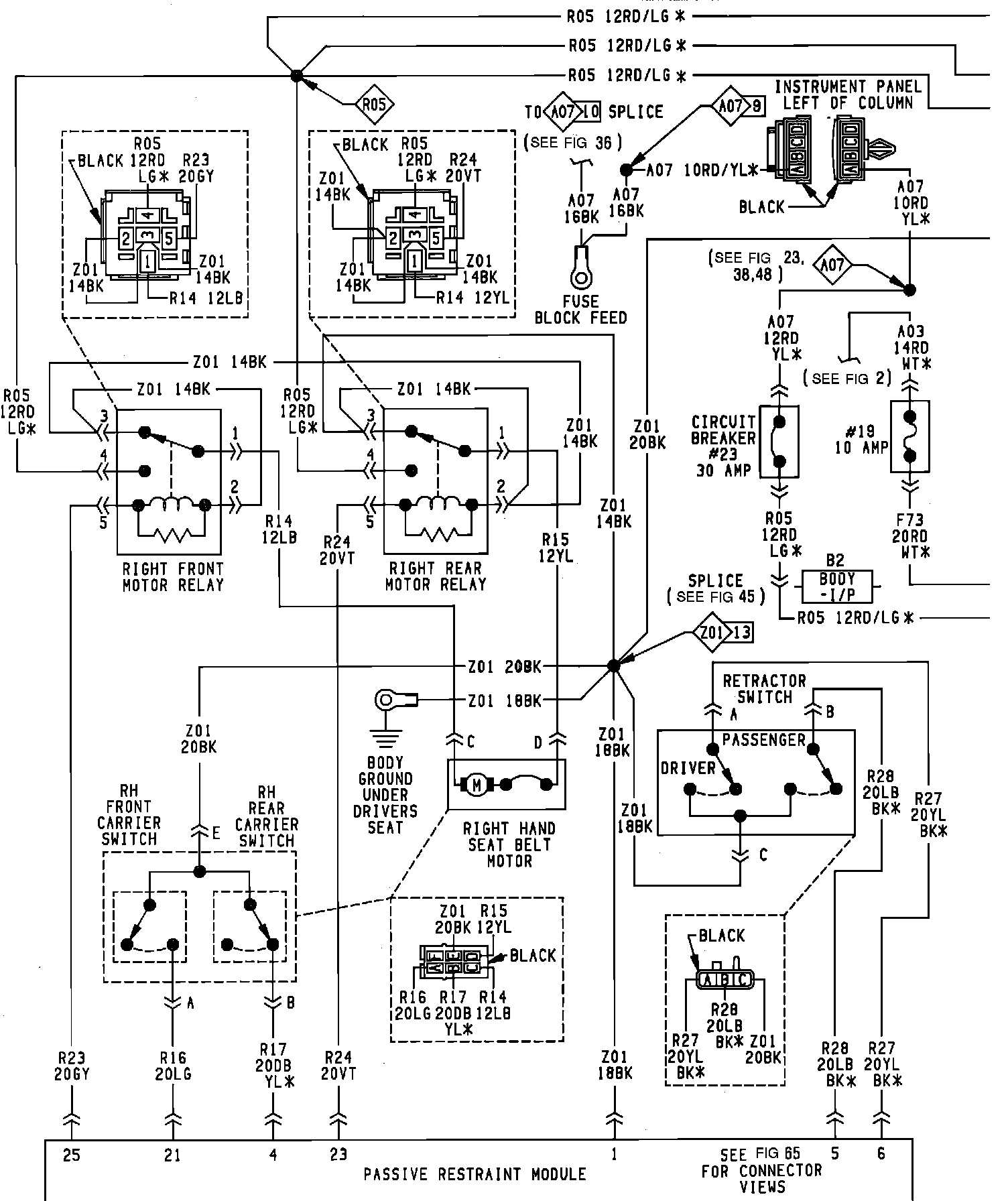

Fig. 3 Automatic Seat Belt Wiring Circuit. Outputs (Part 2 Of 2):

Passive Restraint System, Early Production:

Passive Restraint System, Early Production:

Passive Restraint System, Late Production:
