Component Locations
Component Locations

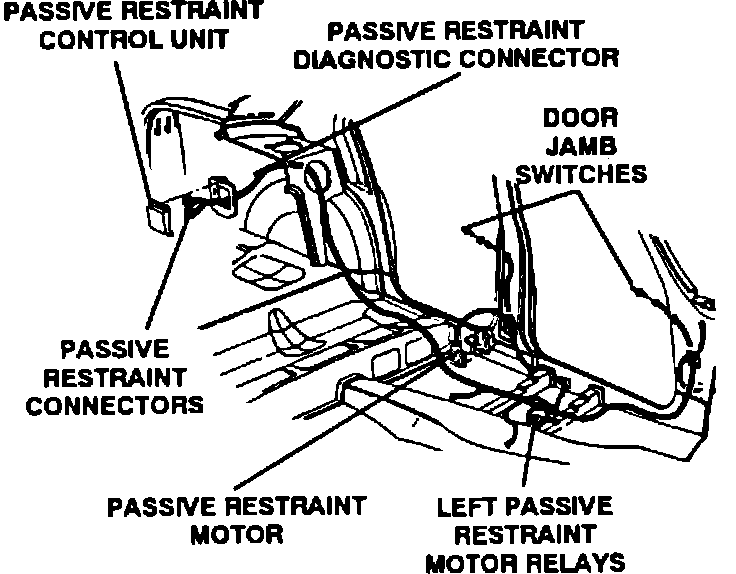

Fig. 73 Component & Connector Location. LH Side:

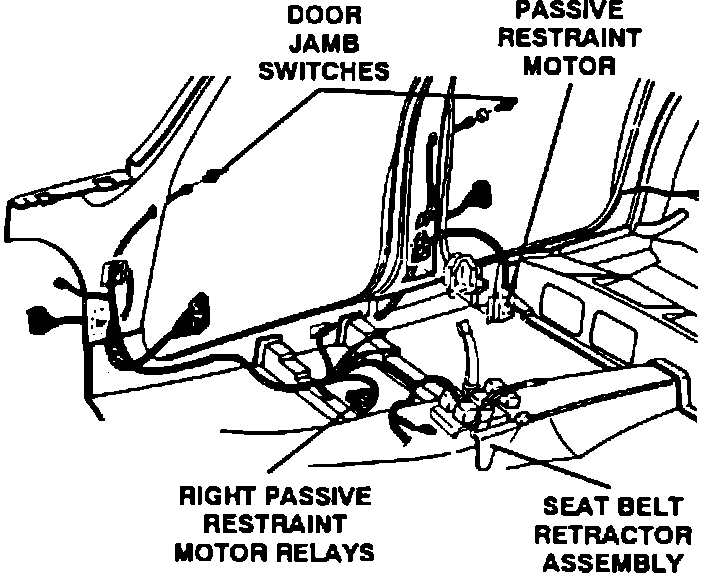

Fig. 74 Component & Connector Location. RH Side:
