Transmission Control Systems

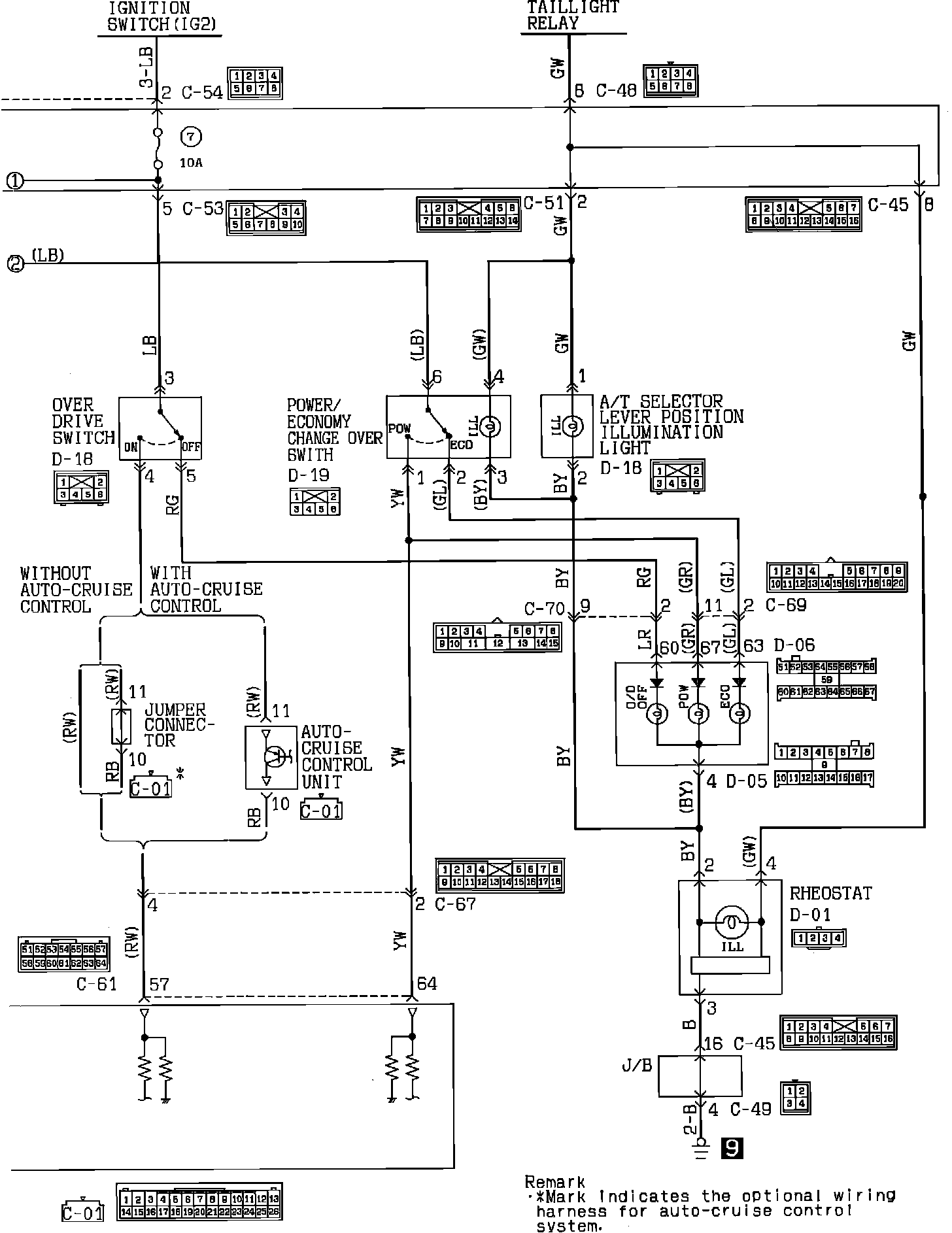

Automatic Transaxle (4-Speed):

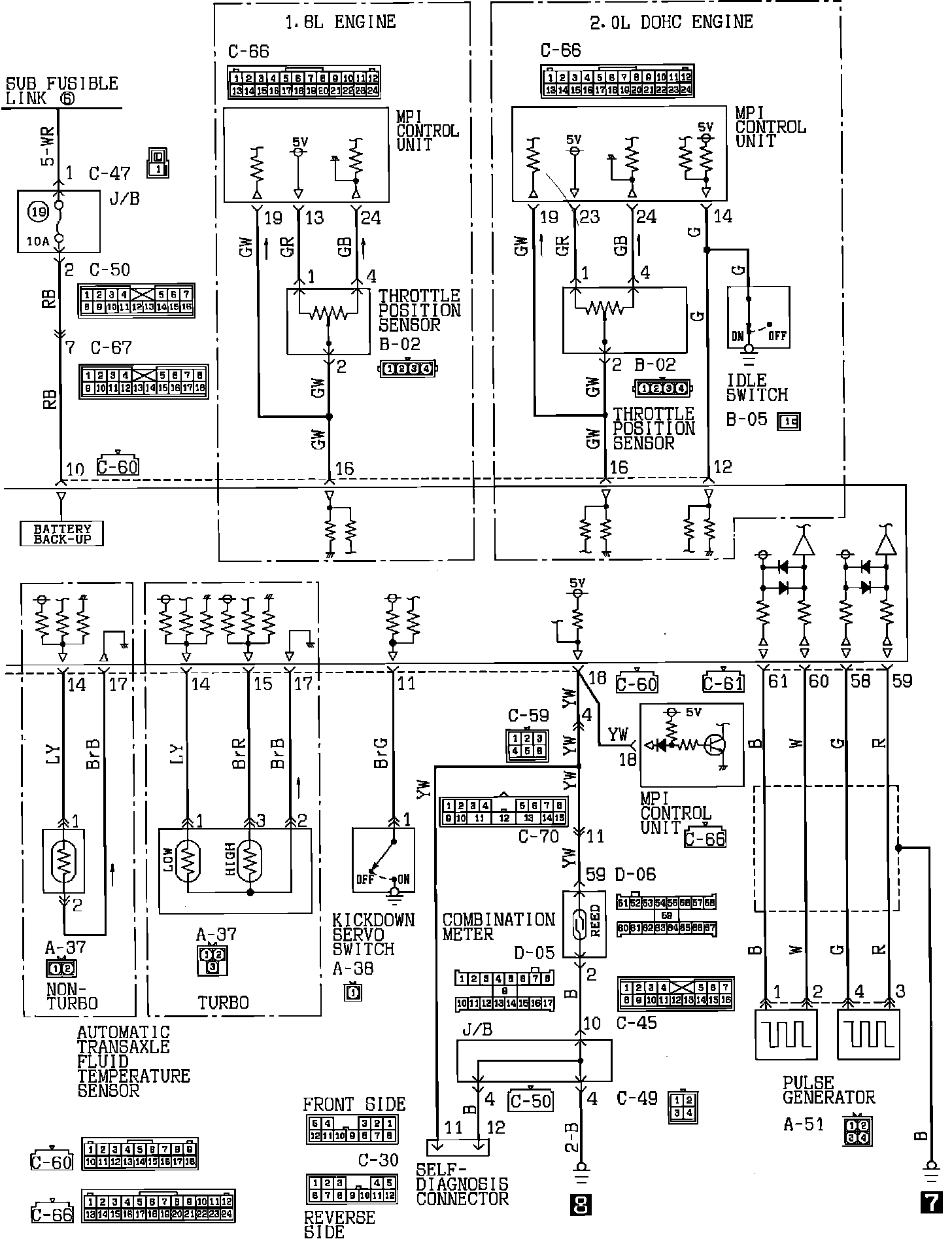

Automatic Transaxle (4-Speed):

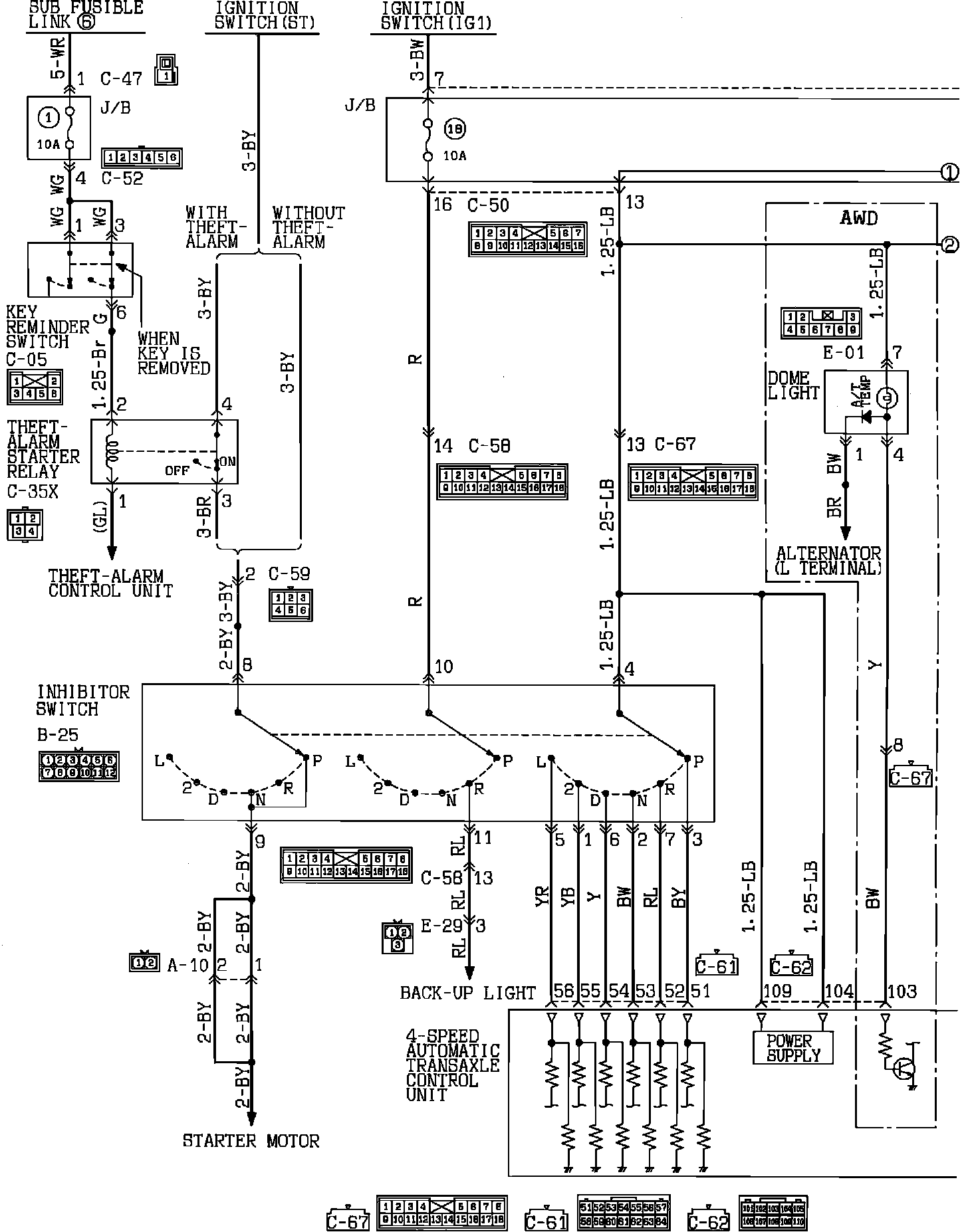

Automatic Transaxle (4-Speed):

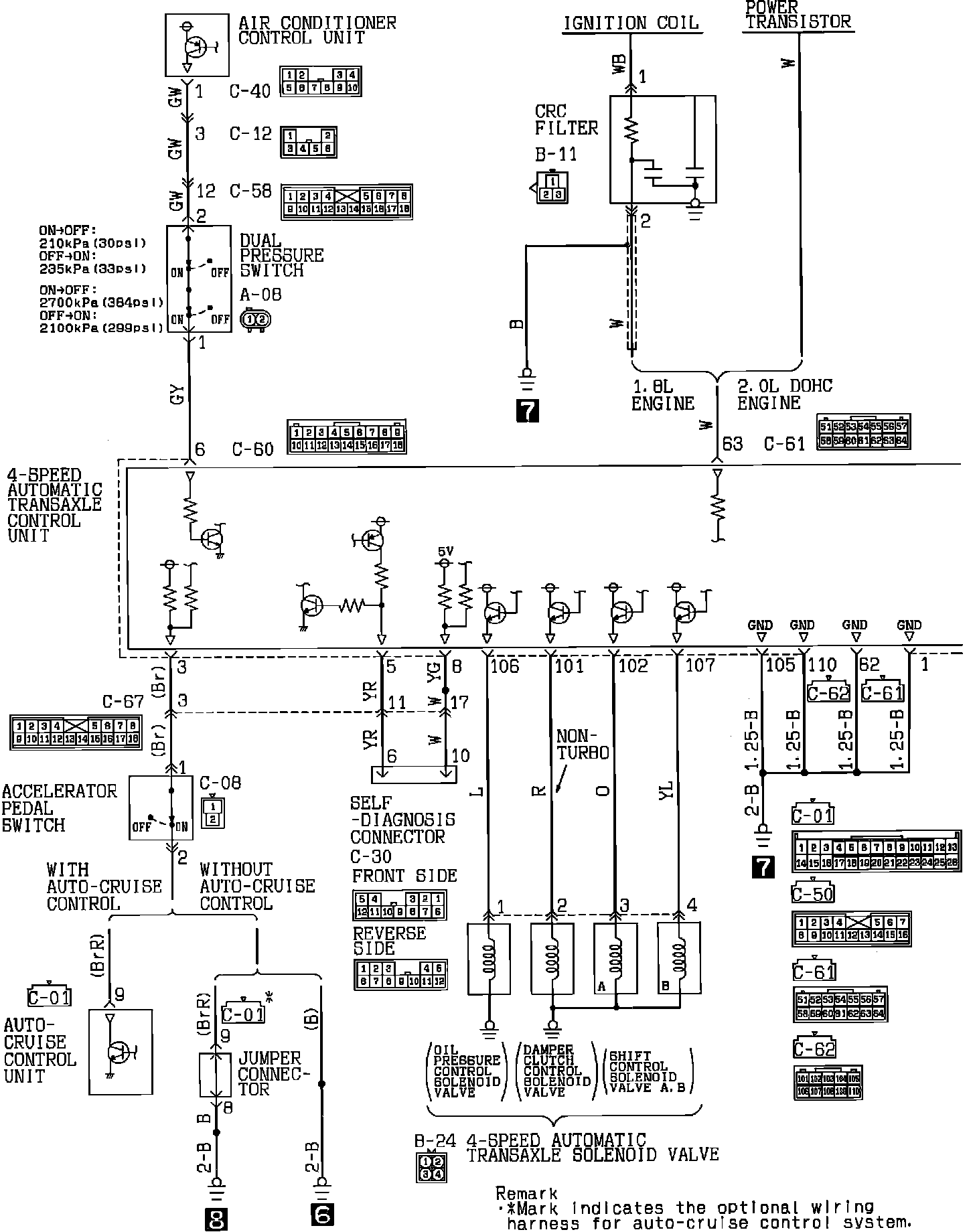

Automatic Transaxle (4-Speed):
