Trunk Lamp
Trunk Lamp

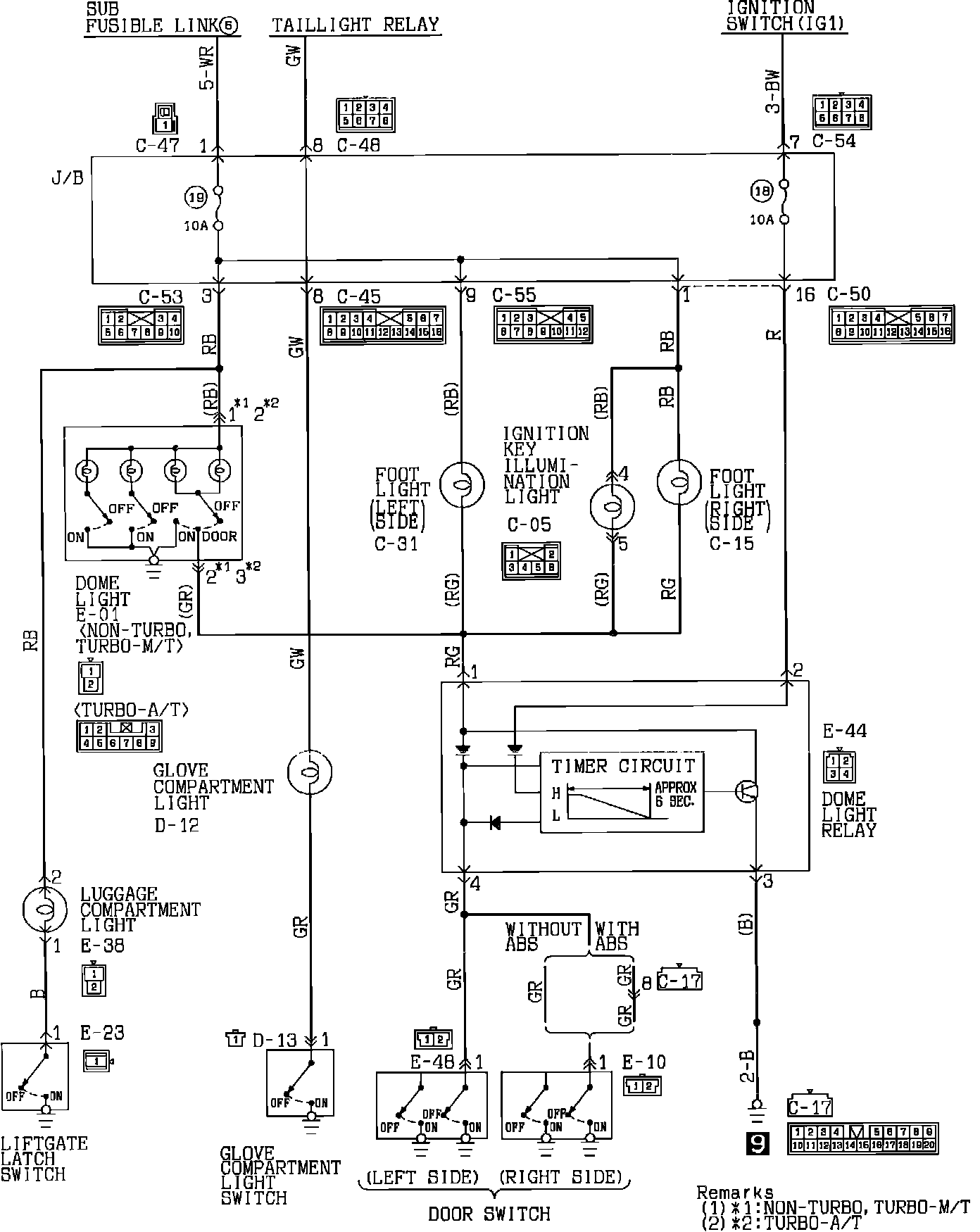

Dome Light, Ignition Key Illumination Light, Foot Light, Glove Compartment Light And Luggage Compartment Light:
